Diagnostic Procedure For Select Monitor Communication

Diagnostic Procedure for Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Select the monitor communication failure

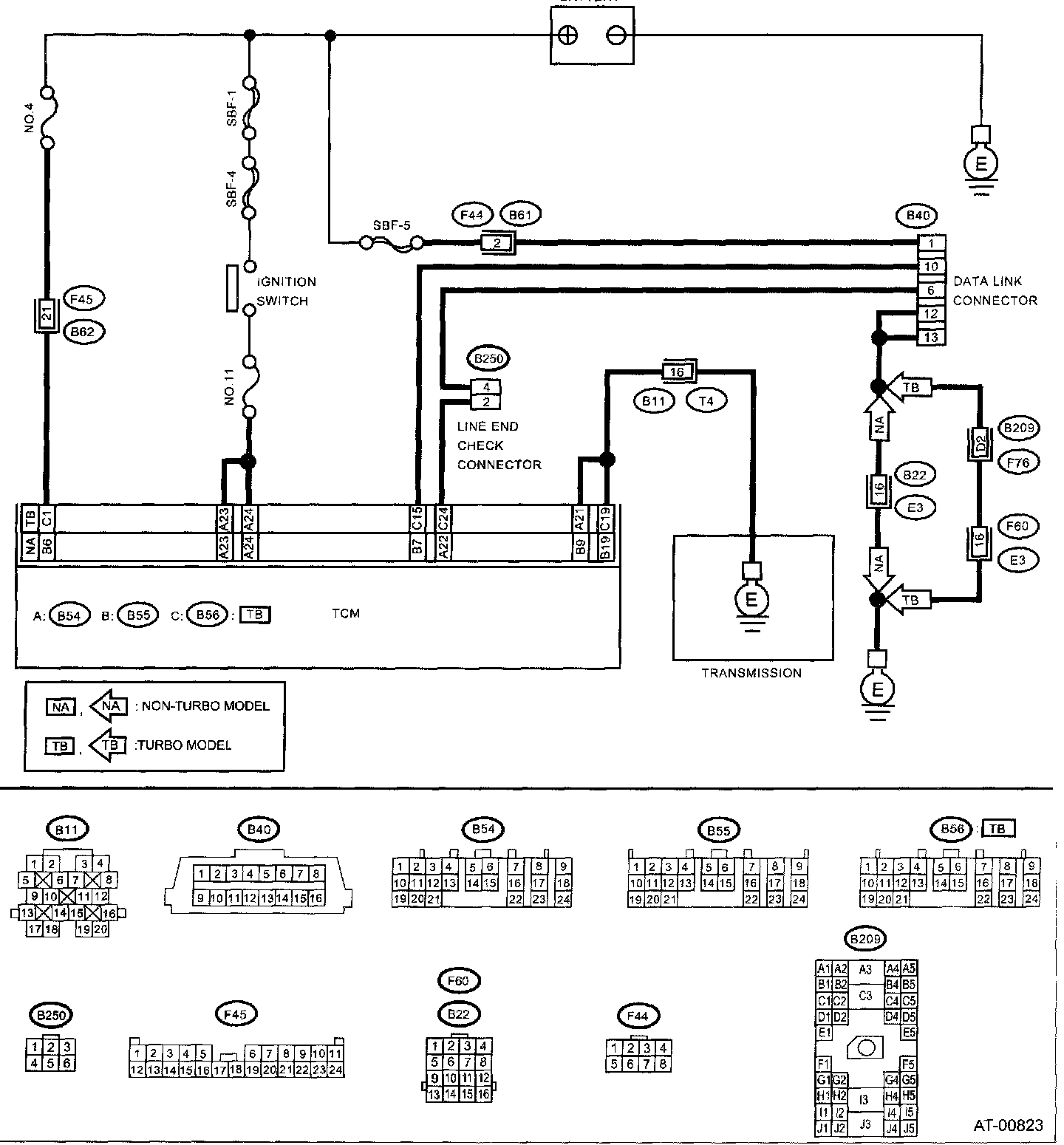

WIRING DIAGRAM:

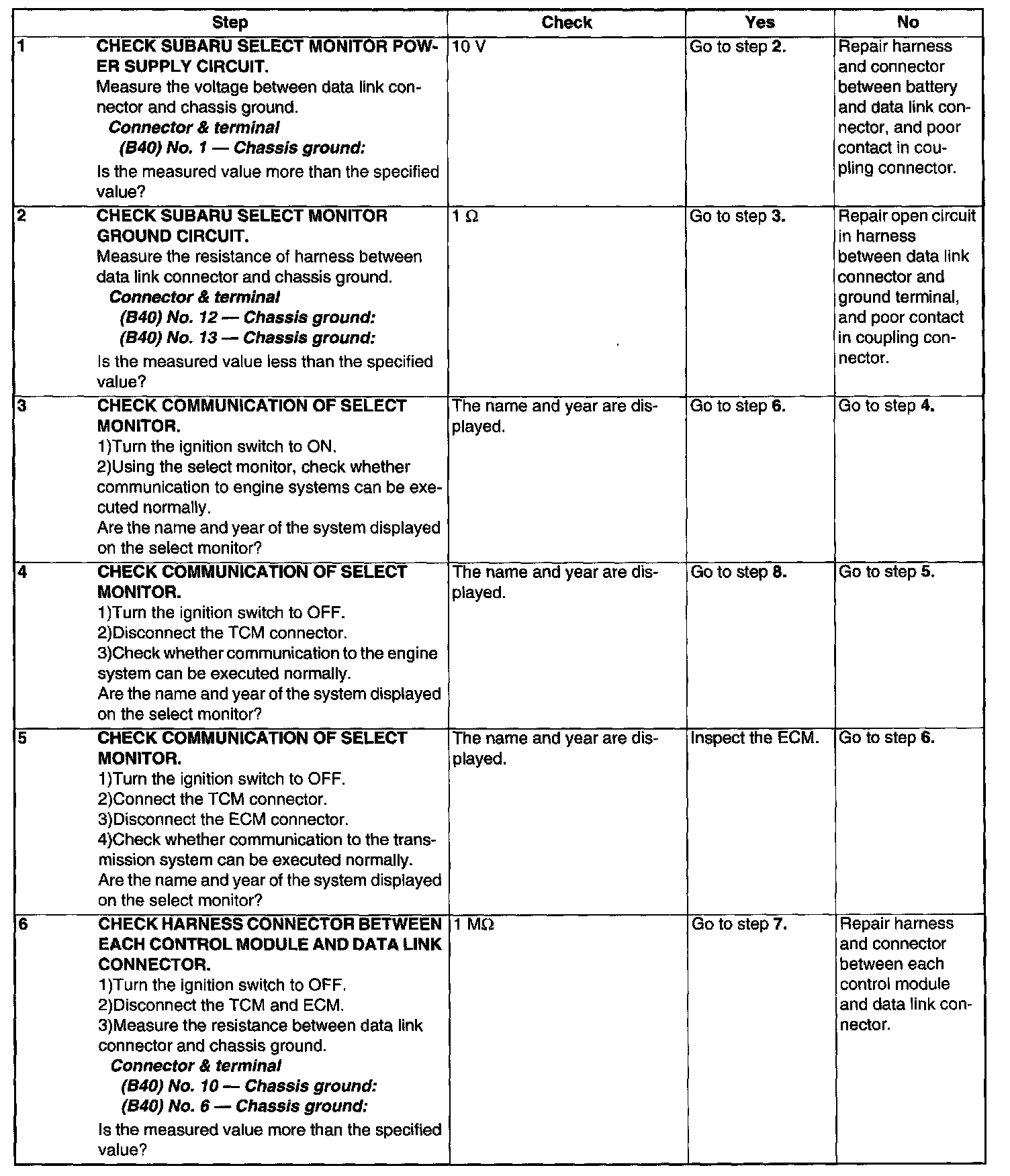

Test 1 Of 2:

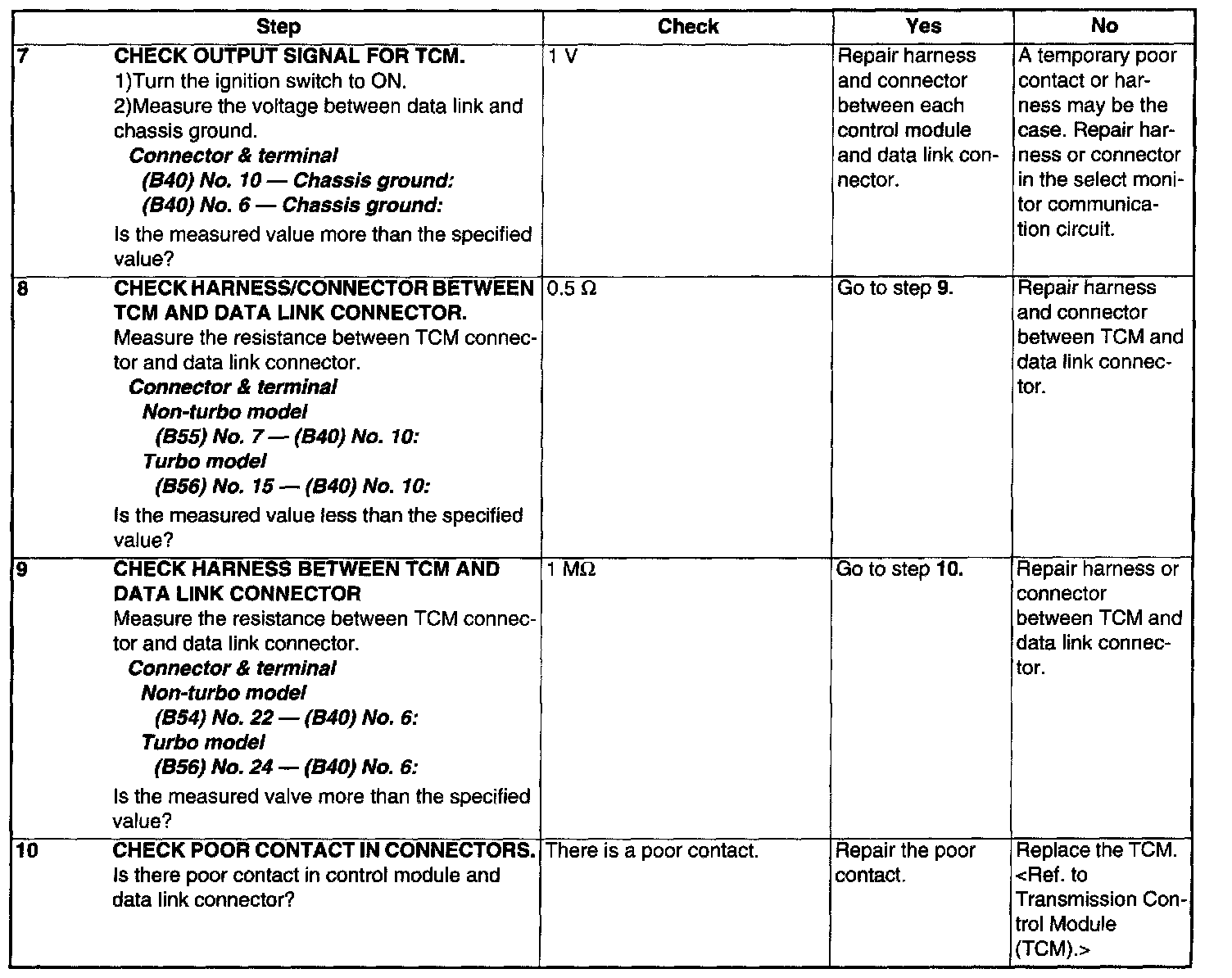

Test 2 Of 2:
