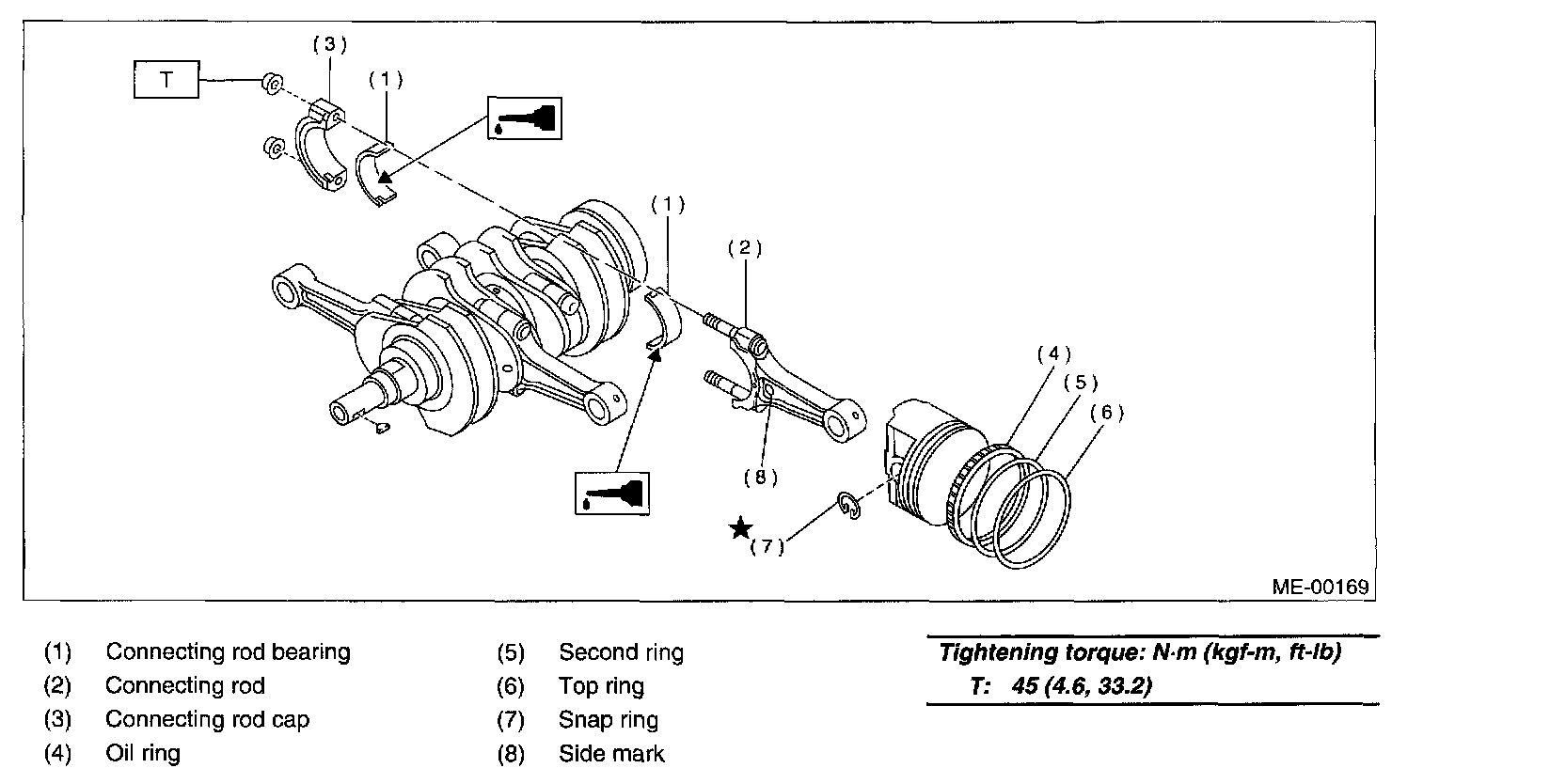

Connecting Rod, Engine

Connecting rod
Bend or twist per 100 mm
Limit 0.10 mm (0 0039 inch)
Side clearance at large end
STD 0.070 - 0.330 mm (0.0028 - 0.0130 inch)
Limit 0.05 mm (0.0020 inch)

Connecting rod bushing
Clearance between piston pin and bushing
STD 0 - 0.022 mm (0 - 0.0009 inch)
Limit 0.030 mm (0.0012 inch)






Connecting rod bearing cap nuts
