Power Window Switch: Service and Repair

Power Window Control Switch

REMOVAL

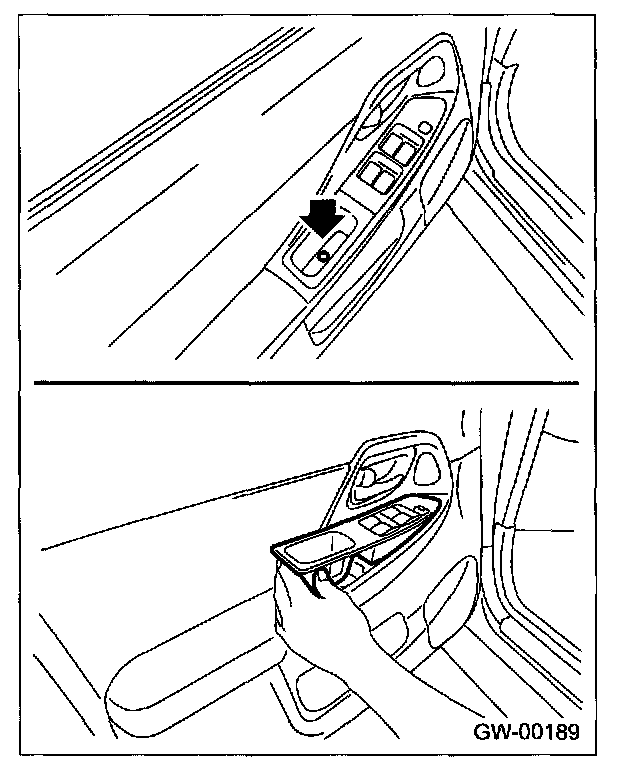

MAIN SWITCH
1. Disconnect the ground terminal from battery.
2. Loosen the screw to remove power window main switch.




3. Disconnect the connector.

SUB-SWITCH
1. Disconnect the ground terminal from battery.
2. Remove the switch panel.




3. Disconnect the connector.

INSTALLATION

MAIN SWITCH
Install in the reverse order of removal.

SUB-SWITCH
Install in the reverse order of removal.
