Input Signals

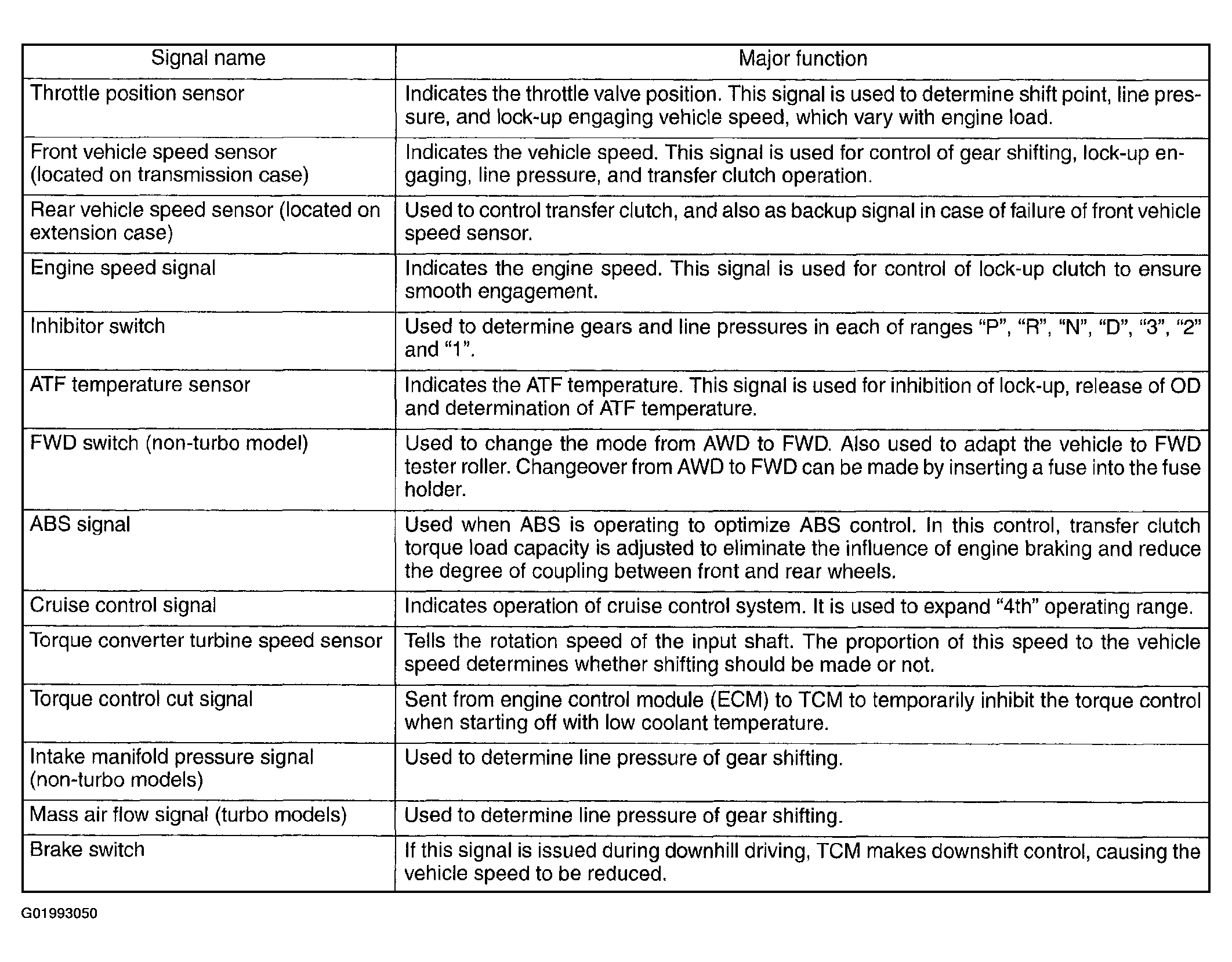

Fig 1: Electrohydraulic Control System Input Signals chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
