Slip Control

When front or rear wheels start slipping with the vehicle running slower than the predetermined speed, the TCM makes control is increase the differential action limiting torque.

This function maintains traction and improves driving stability.

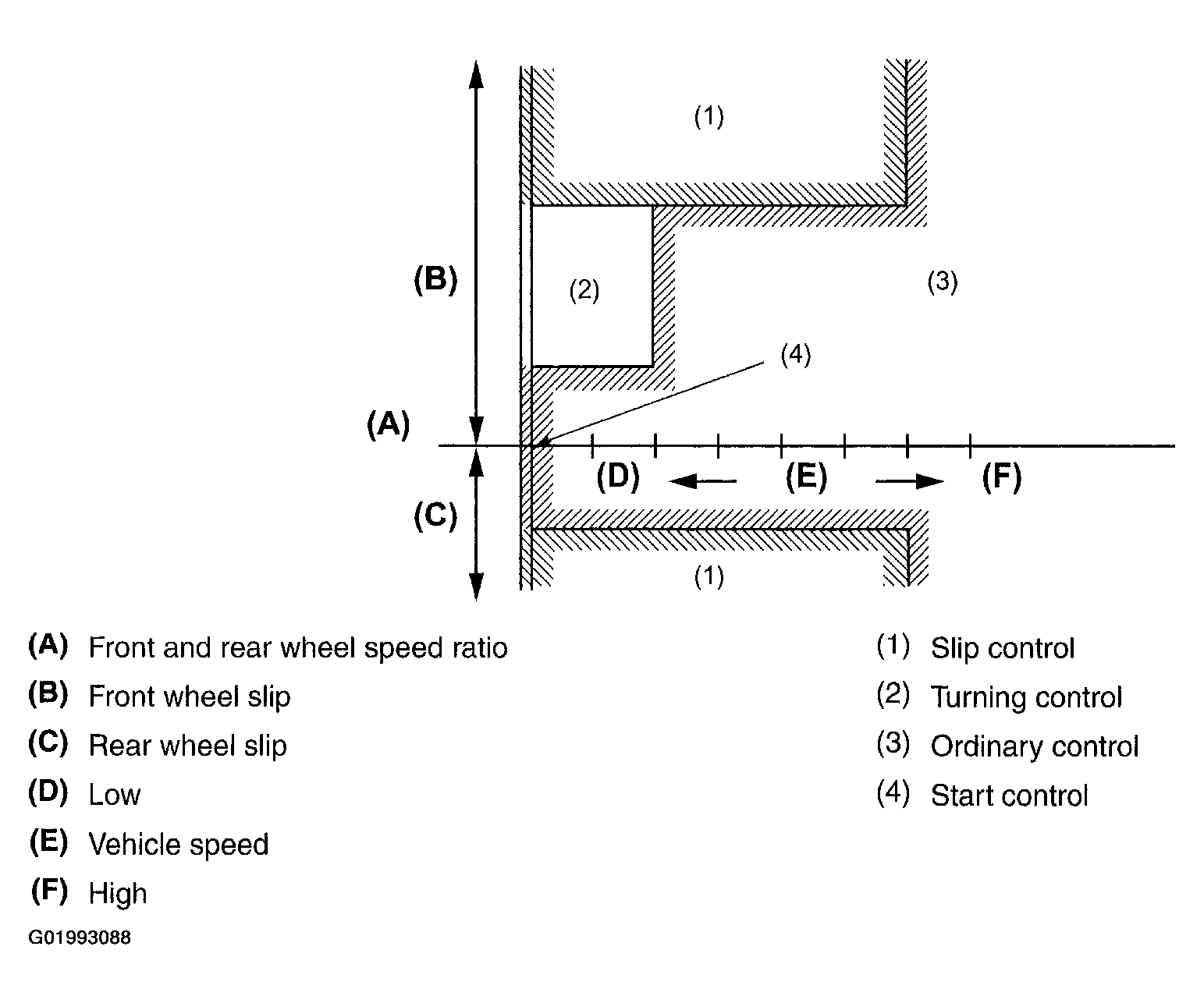

Fig 1: Slip Control Chart (VTD Models)
G01993088Courtesy of SUBARU OF AMERICA, INC.
