Keyless Entry Control Module
Fig 1: Keyless Entry Control Module Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

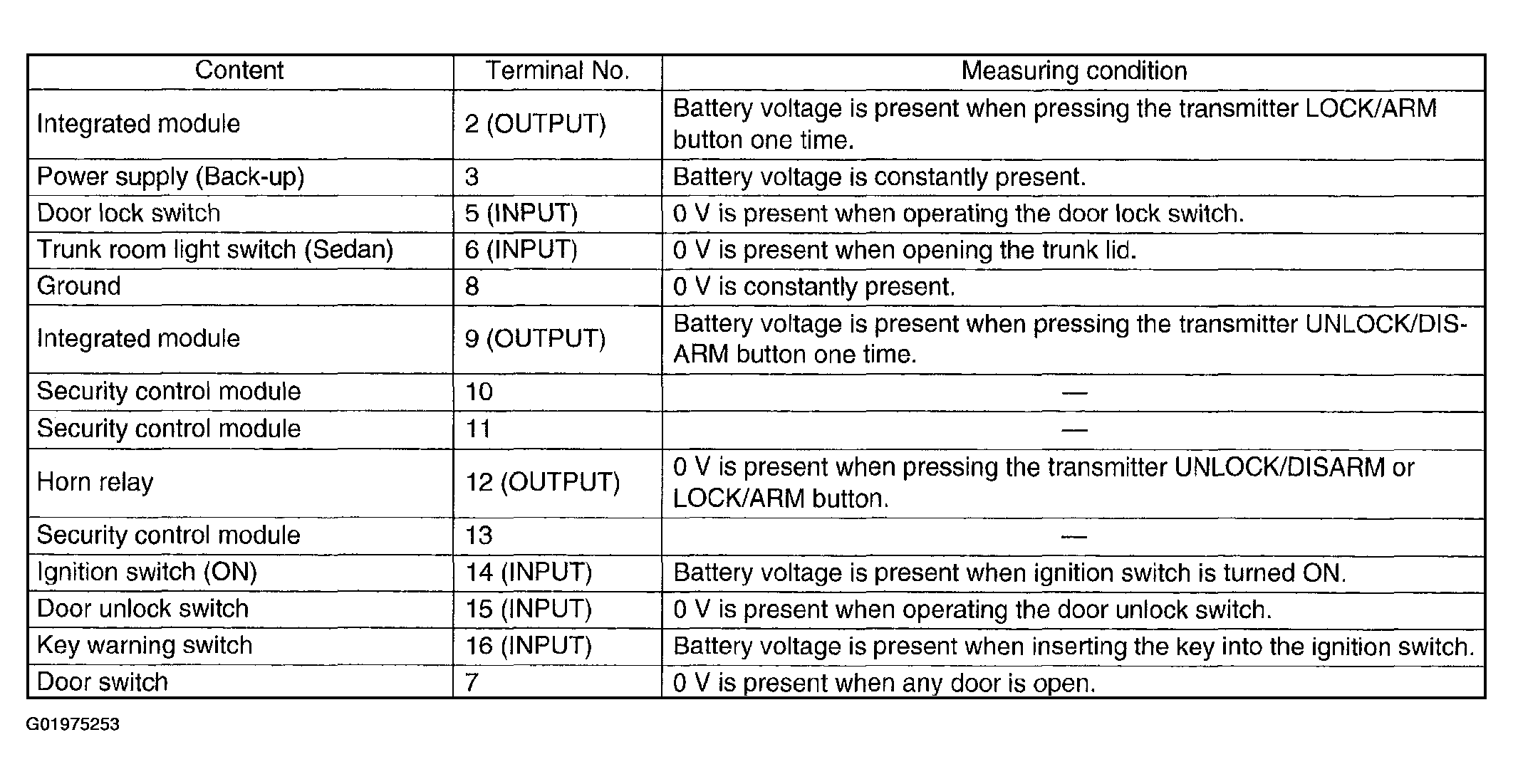

Fig 2: Keyless Entry Control Module Input/Output Signals (Pin Voltage) Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
