Electrical Specifications

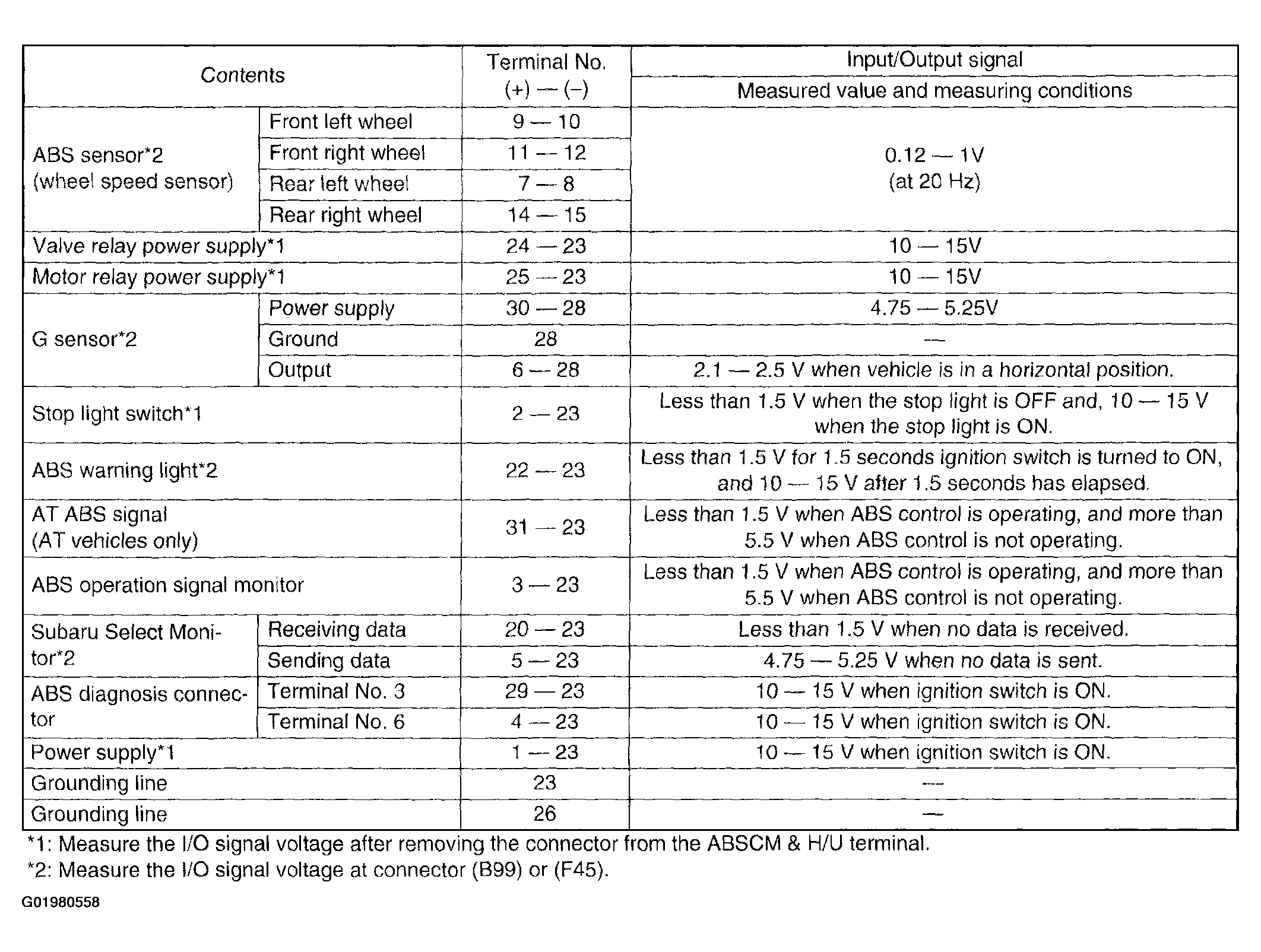

Fig 1: Control Module Electrical Specifications
G01980557Courtesy of SUBARU OF AMERICA, INC.

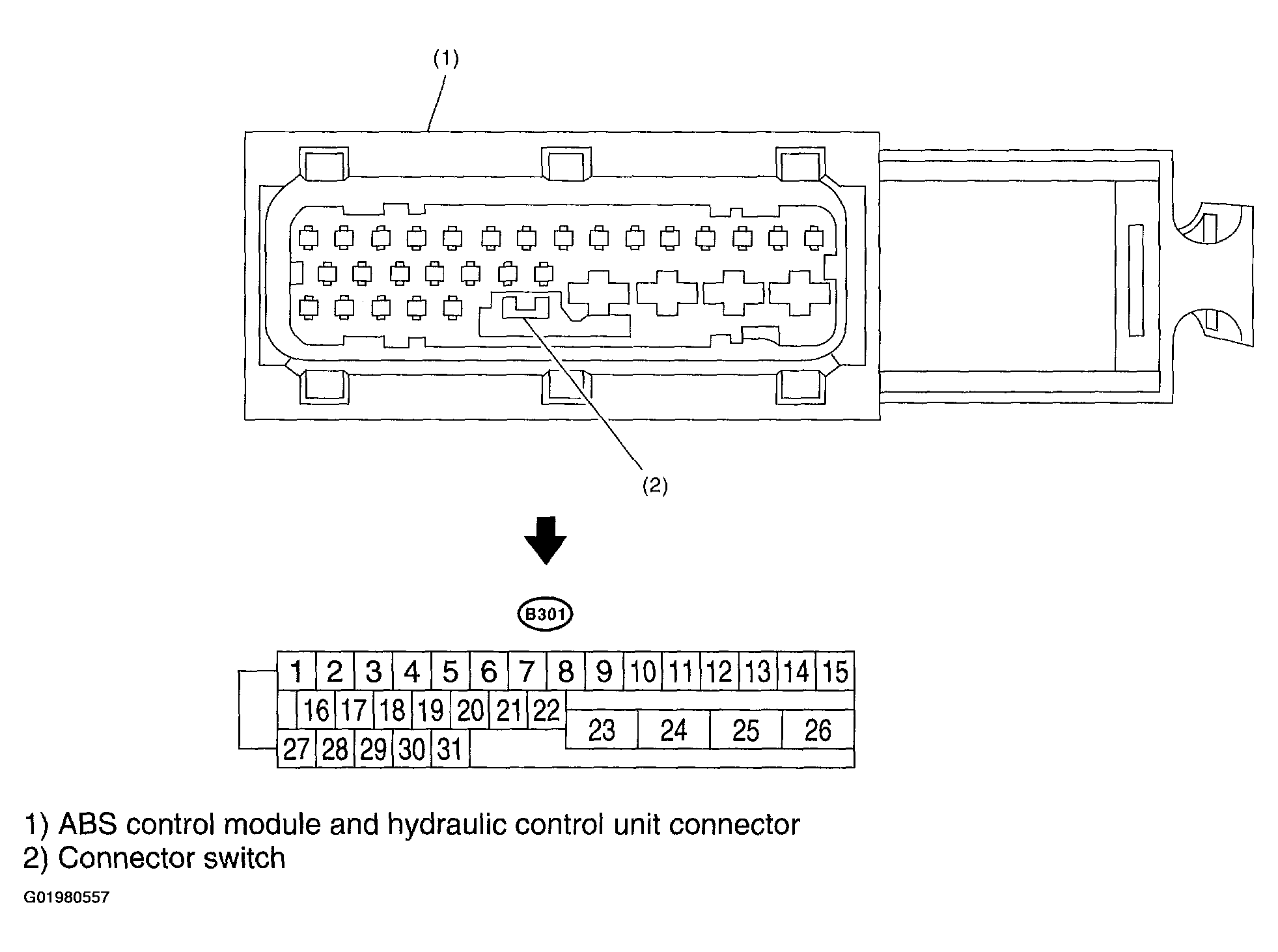

  1. ABS control module and hydraulic control unit connector.
  2. Connector switch.
NOTE:
  • The terminal numbers in ABS control module and hydraulic control unit connector are as shown in the figure.
  • When the connector is removed from ABSCM & H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. When this occurs, the ABS warning light comes on.
Fig 2: Identifying Terminal Numbers For ABS Control Module & Hydraulic Control Unit Connector
G01980558Courtesy of SUBARU OF AMERICA, INC.
