Control Module I/O Signals: Schematic

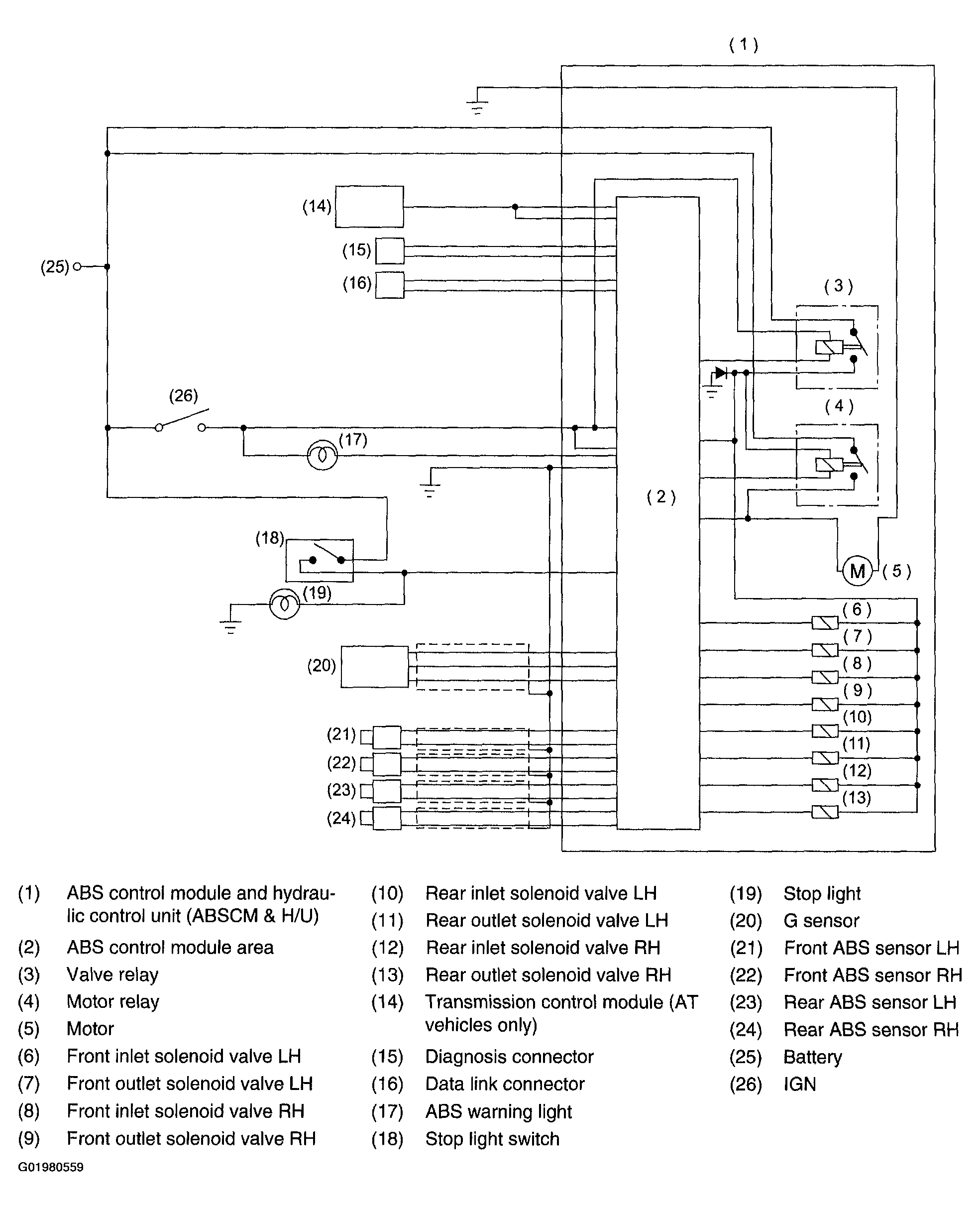

Fig 1: ABS Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
