Integrated Module

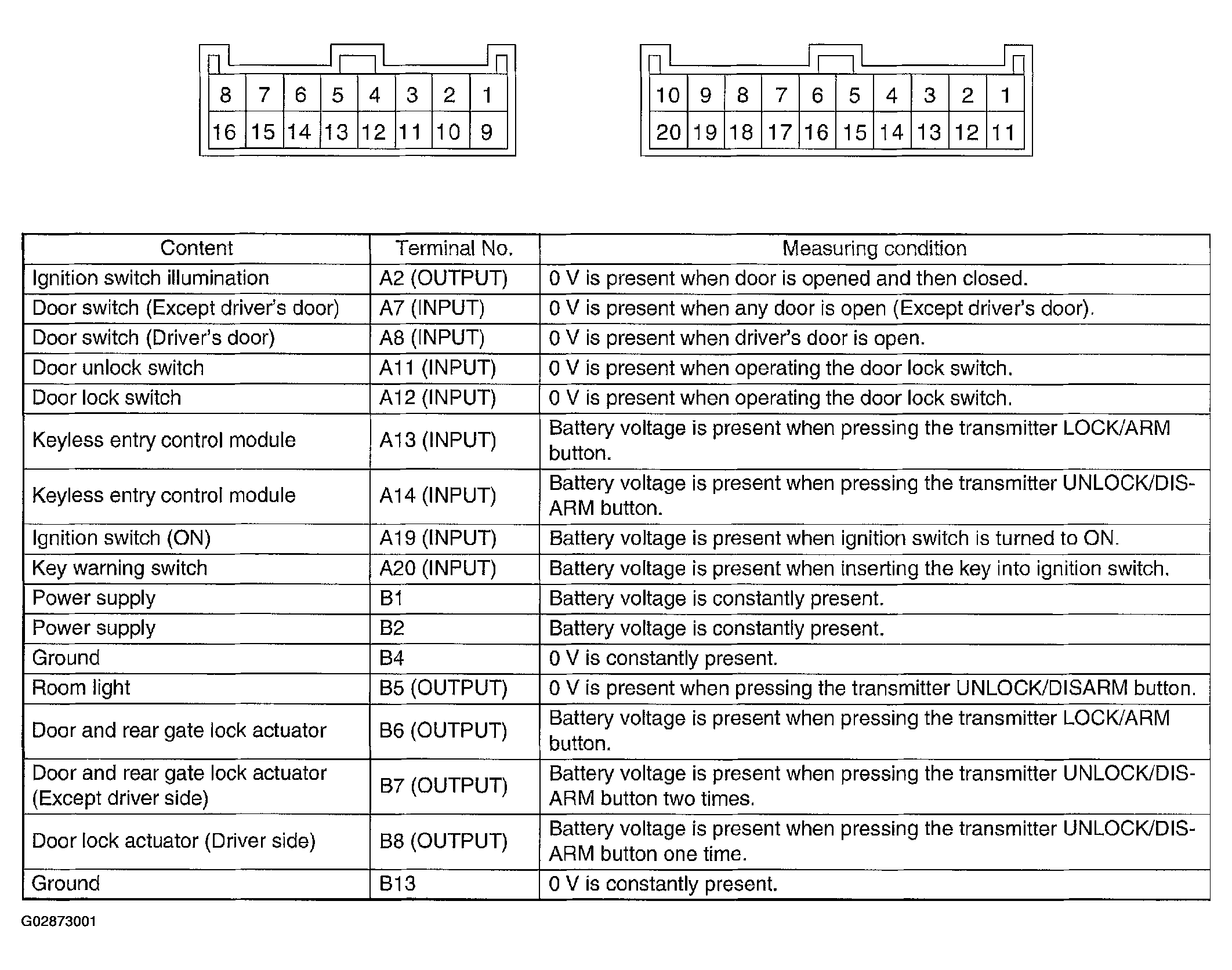

Fig 1: Electrical Specification (Integrated Module)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
