Electrical Specification

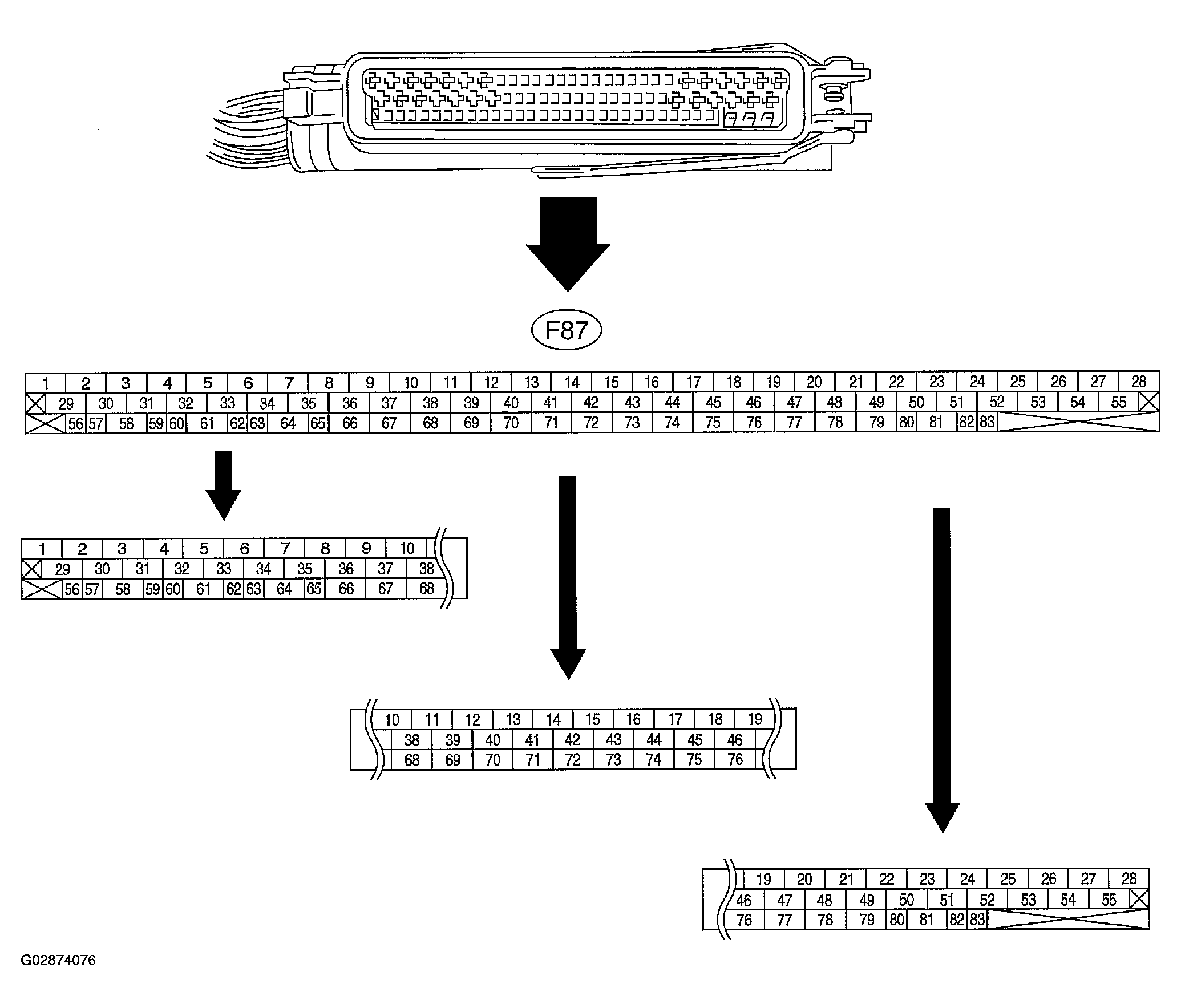

Fig 1: Identifying Control Module I/O Signal Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The terminal numbers in the VDC control module connector are as shown in the figure.
When the connector is removed from the VDCCM, the connector switch closes the circuit between terminal No. 53, No. 54 and No. 55. The ABS and VDC warning light illuminate.

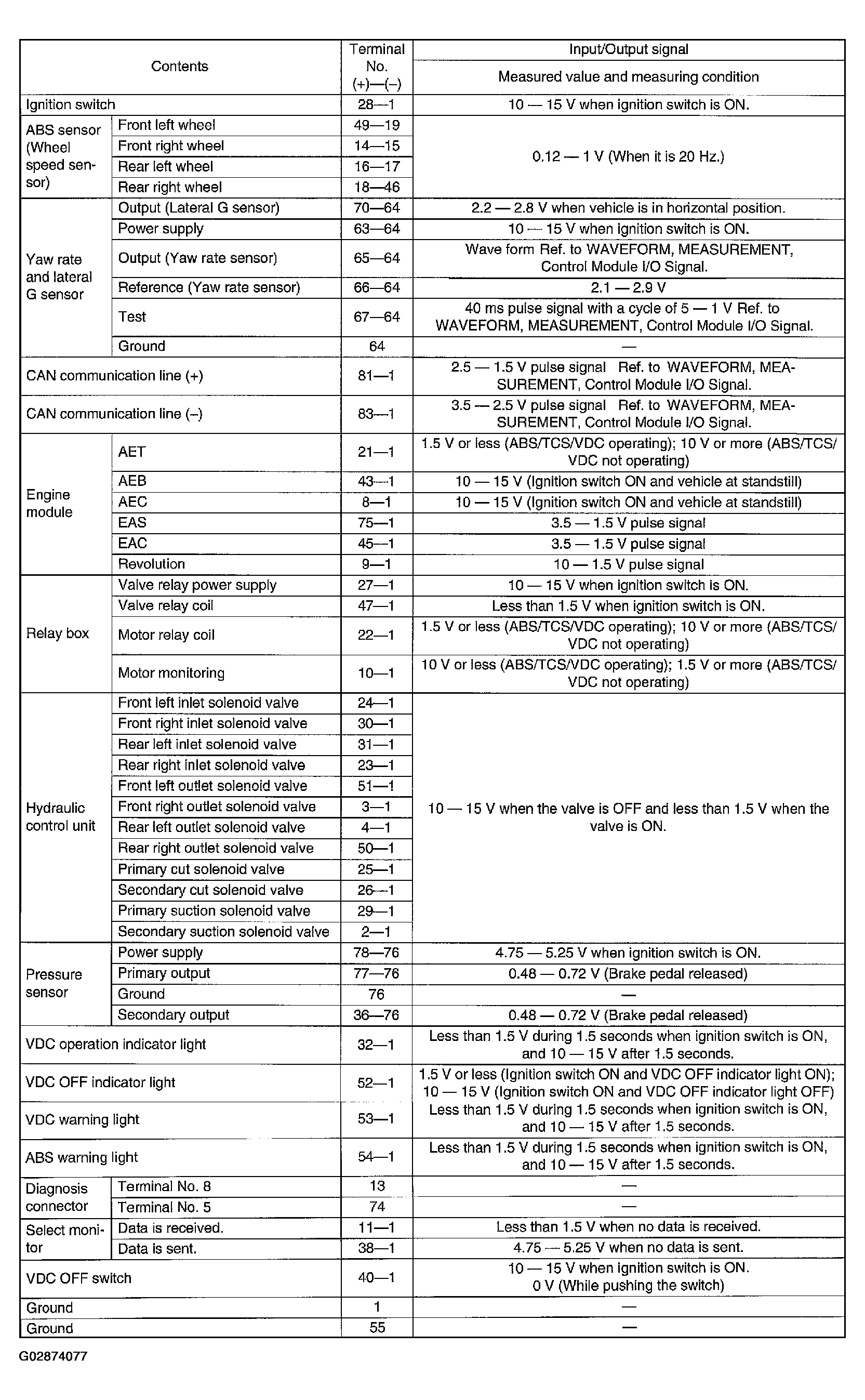

Fig 2: Control Module I/O Signal Chart

Courtesy of SUBARU OF AMERICA, INC.
