Control Module I/O Signal: Measurement: Waveform

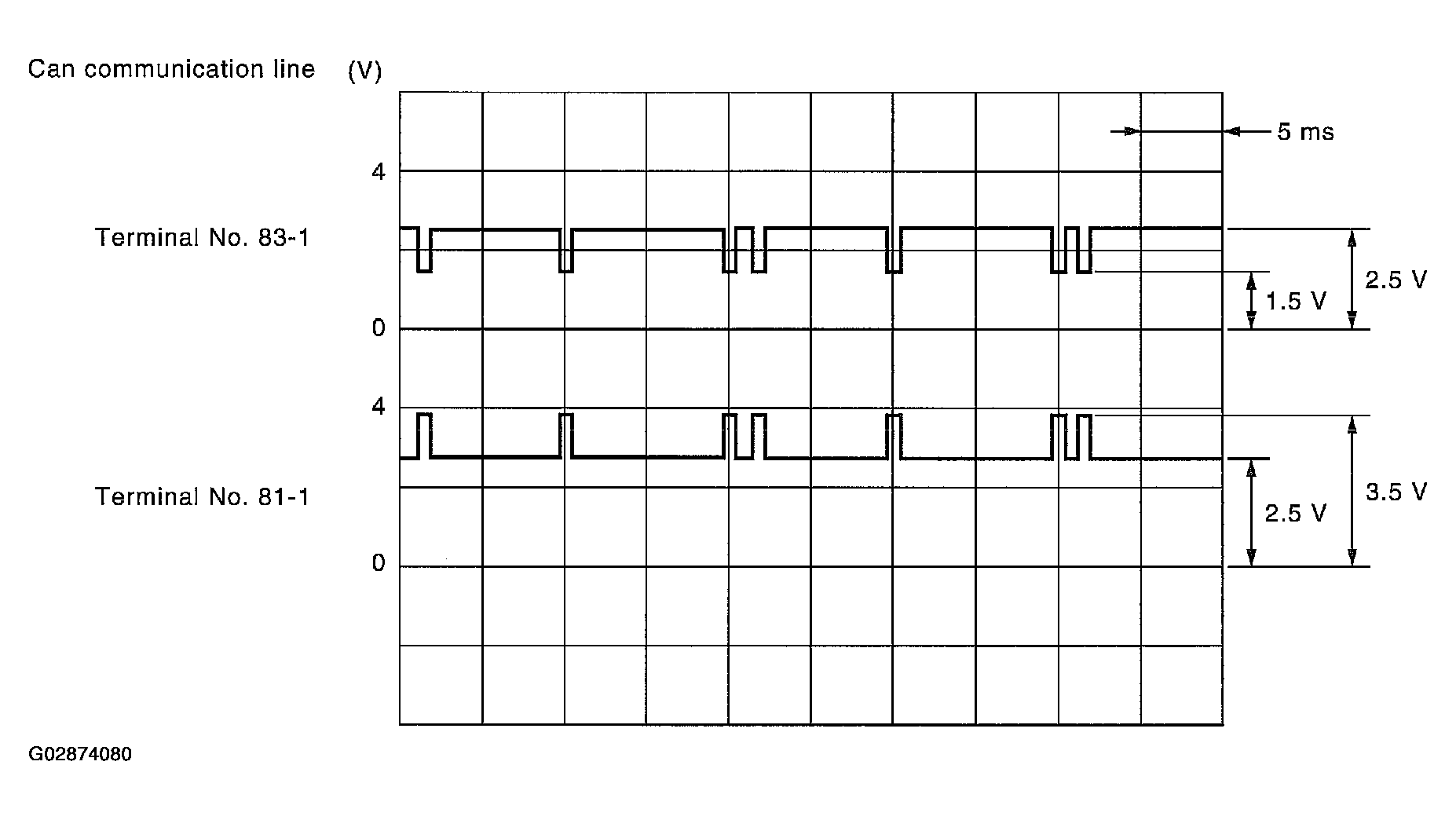

Fig 1: Control Module I/O Signal Waveform (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

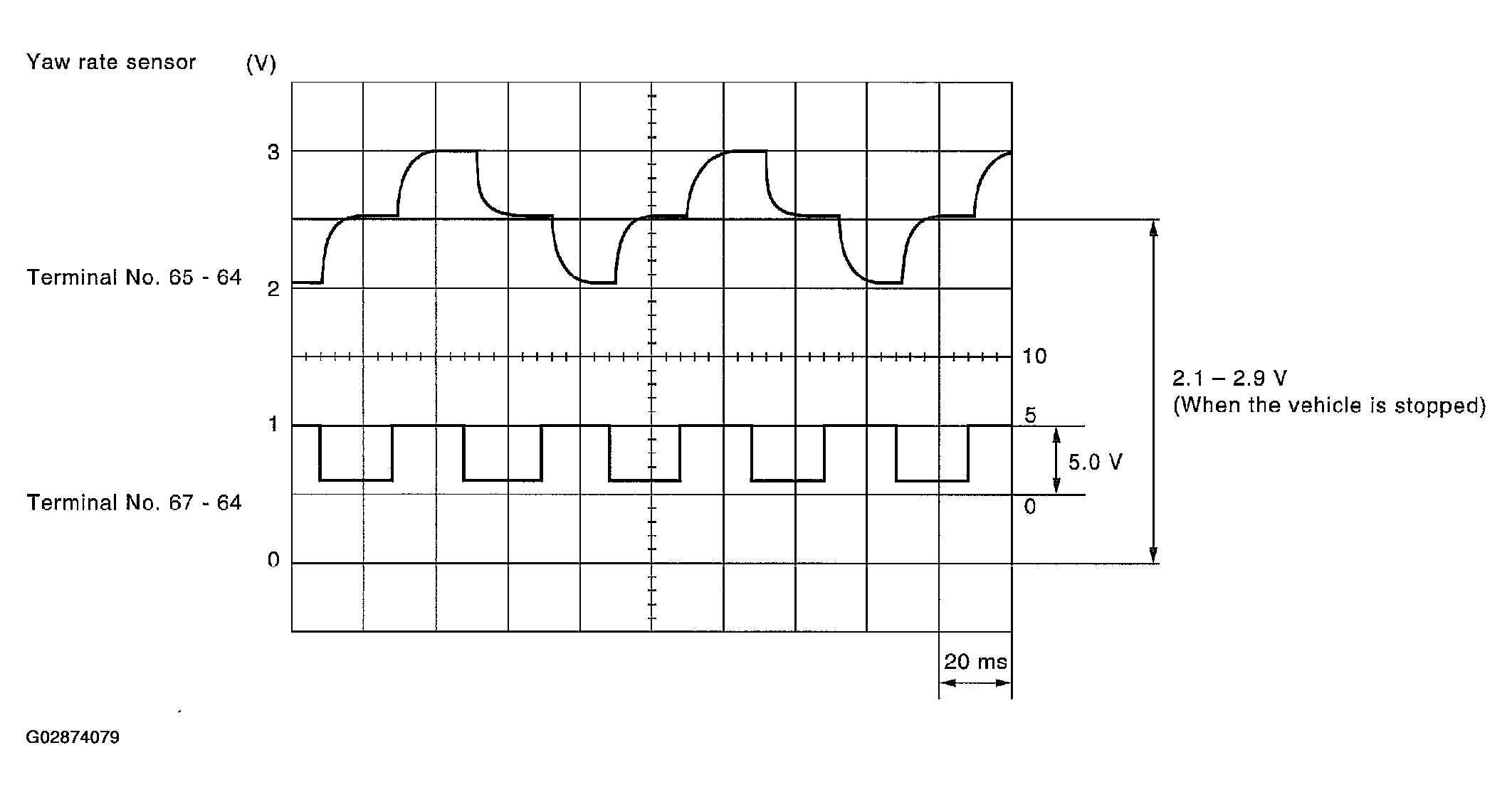

Fig 2: Control Module I/O Signal Waveform (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
