Engine Controls - Self-Diagnostics - 3.0L
>>
Diagnostic Tests
>>
DTC P0604: Internal Control Module Memory Check Sum Error
>>
Diagnosis & Repair
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnosis & Repair
For diagnosis, see
Fig 1
.

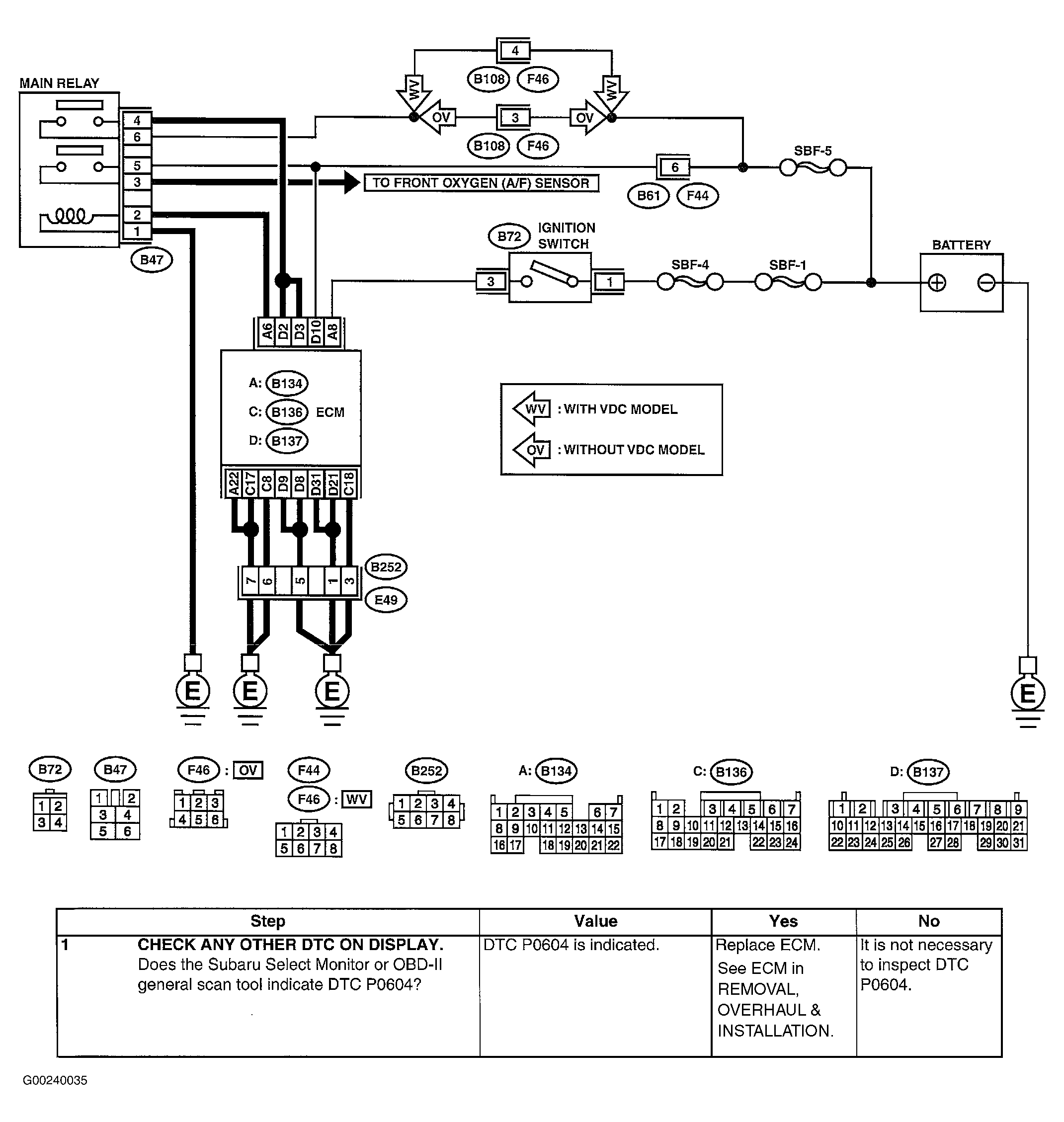

Fig 1: DTC P0604 Diagnostic Procedure
Courtesy of SUBARU OF AMERICA, INC.
