Fuel Level Sensor

The fuel level sensor forms part of the fuel pump and is located in the fuel tank. The sensor outputs an electric resistance signal that varies with movement of its float to indicate the level of the fuel remaining in the tank.

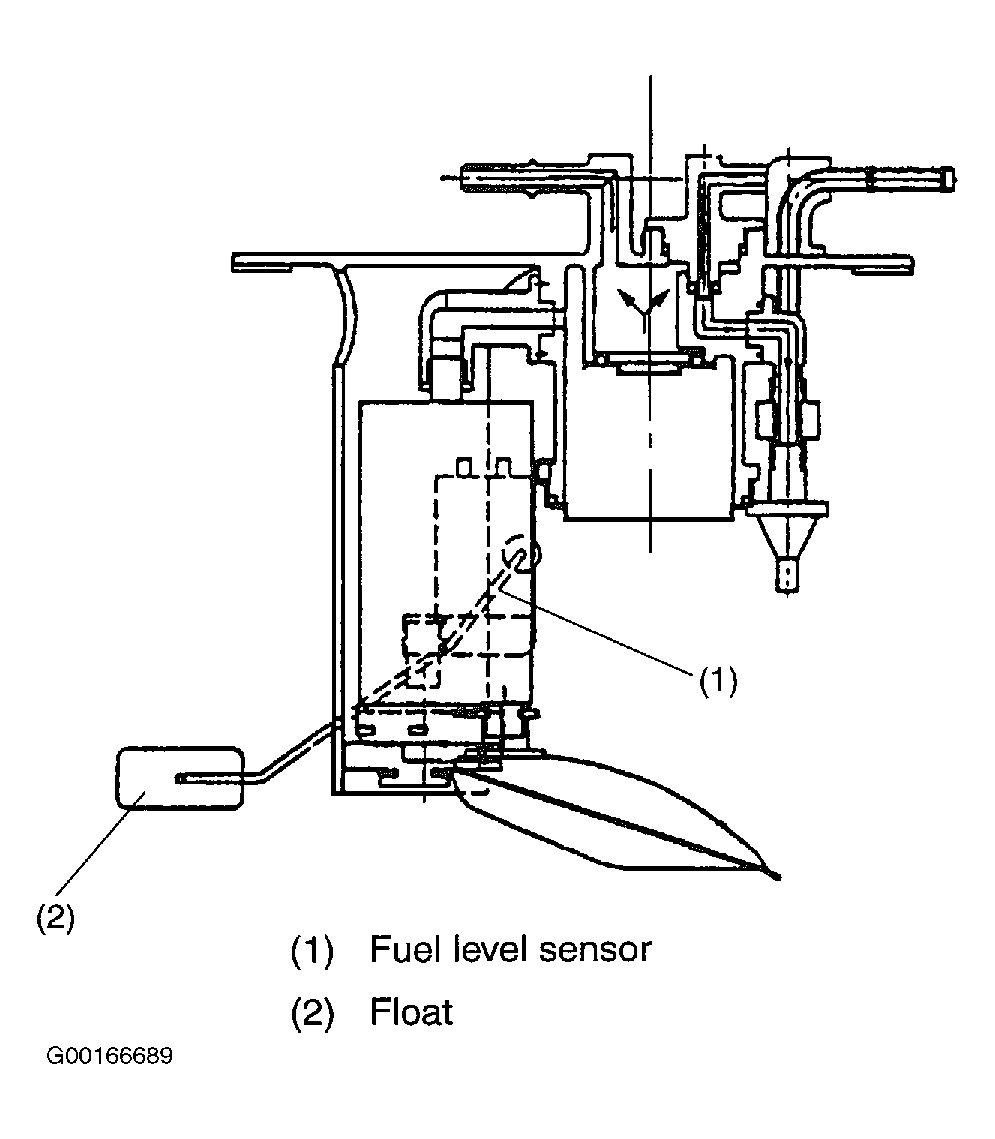

Fig 1: Identifying Fuel Level Sensor (Baja, Legacy & Outback)

Courtesy of SUBARU OF AMERICA, INC.

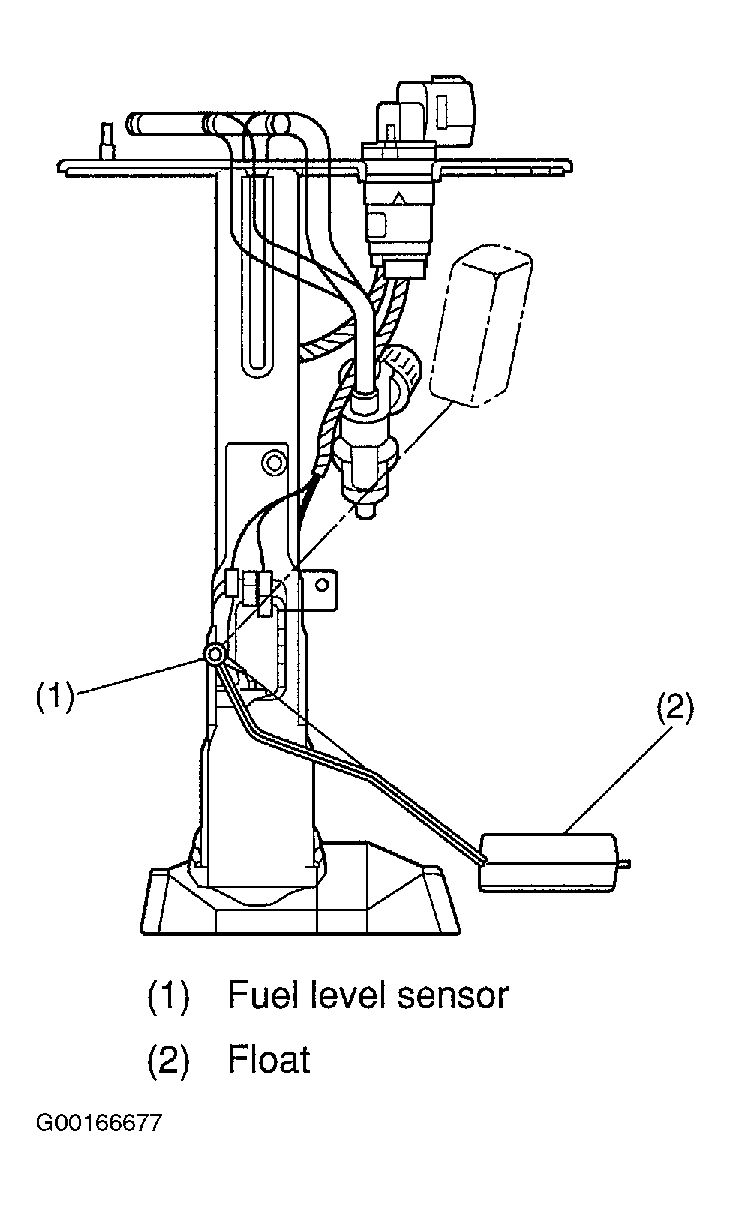

Fig 2: Identifying Fuel Level Sensor (Forester, Impreza & Outback Sport )

Courtesy of SUBARU OF AMERICA, INC.
