Audio System: Description

The McIntosh^TM system consists of a head unit, a speaker amplifier, two tweeters, four mid-range speakers, and a woofer. The speaker amplifier is located below the front passengers seat and the woofer at the right rear quarter trim (wagon) or left rear shelf trim (sedan).

The output power handled by each of the four channels is 24W and that handled by the woofer is 60W. The total harmonic distortion of the system is as low as 0.05% which is comparable to that of high-class home-use audio systems.

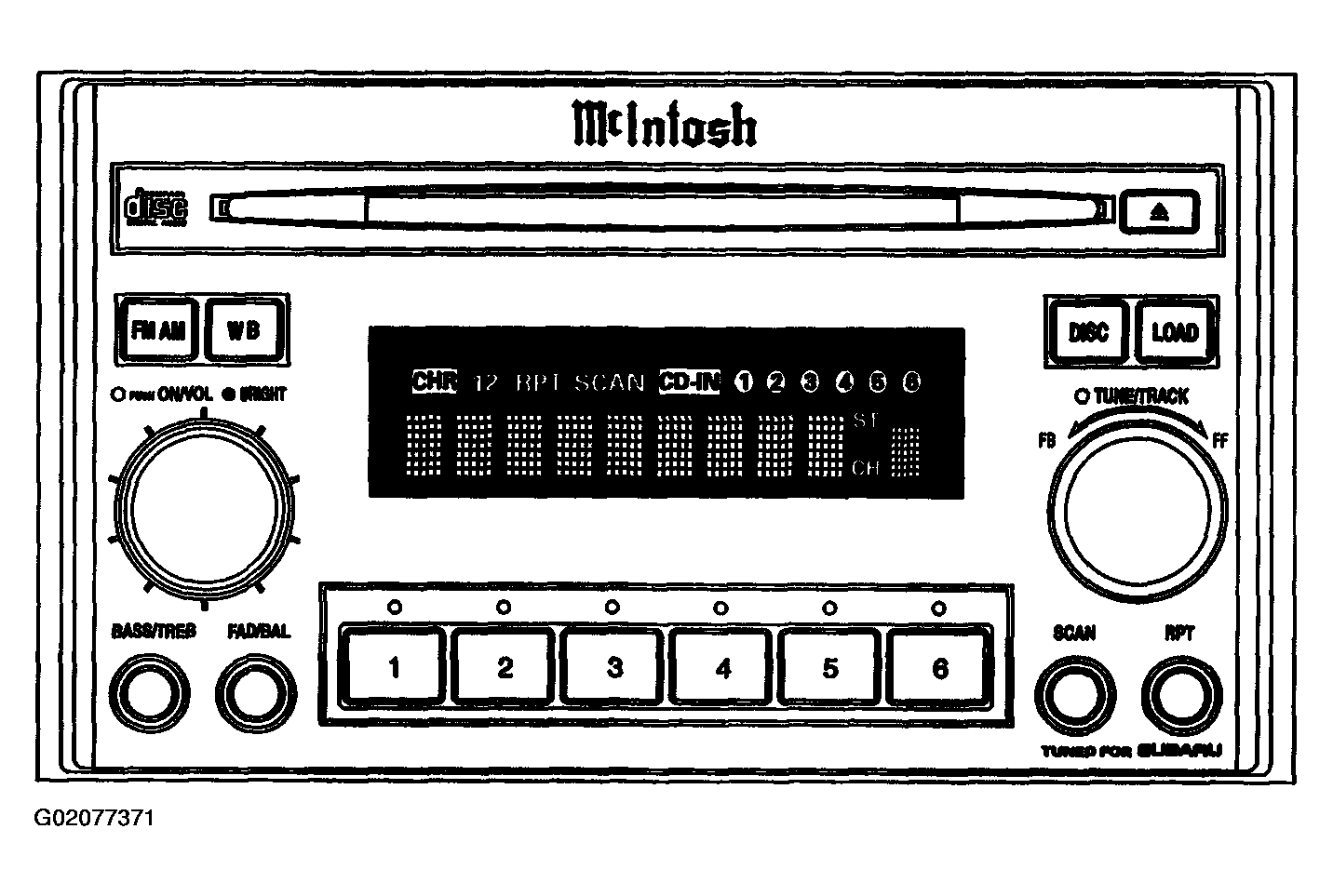

Fig 1: Identifying Audio System Components (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

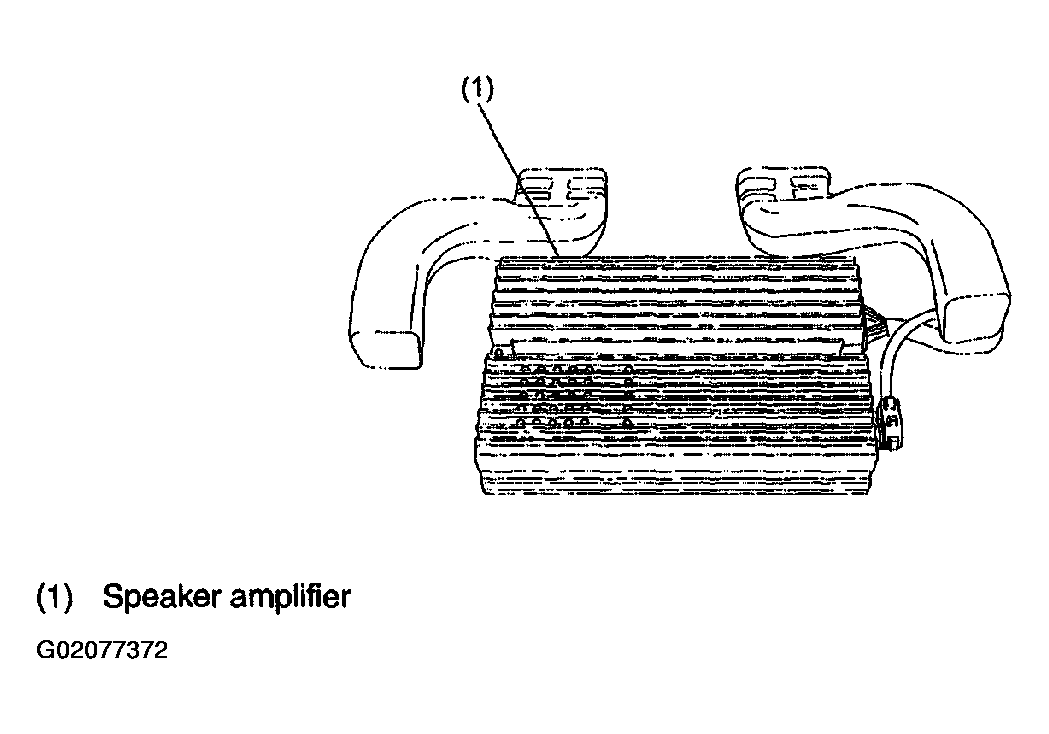

Fig 2: Identifying Audio System Components (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Audio System Components (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

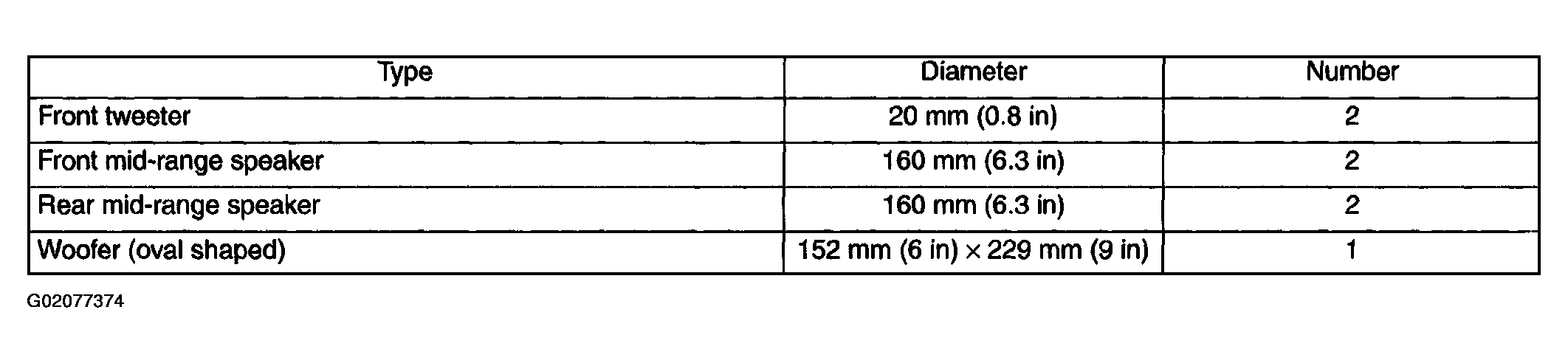

Fig 4: Identifying Speaker Usage Chart

Courtesy of SUBARU OF AMERICA, INC.

McIntosh: McIntosh is a registered trademark of McIntosh Laboratory, Inc.
