Diagnostics Chart with Diagnosis Connector
>>
DTC 41: Abnormal Abs Control Module
>>
Diagnostic Procedures:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures:

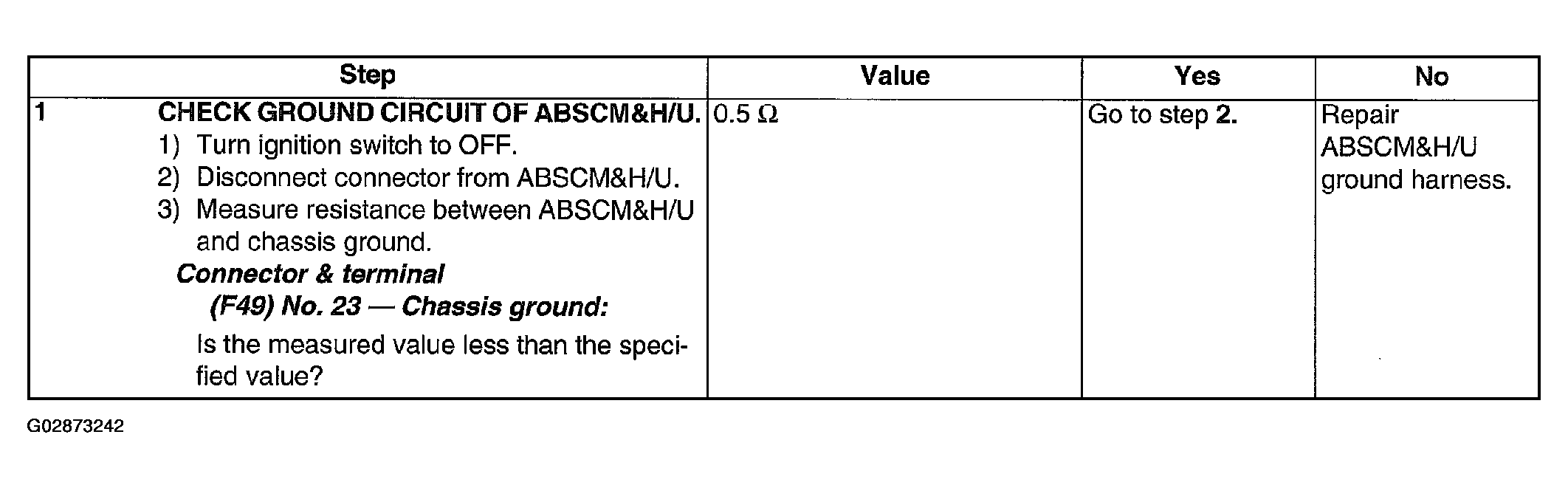

Fig 1: DTC 41: Abnormal ABS Control Module Diagnostic Chart (Step 1)
Courtesy of SUBARU OF AMERICA, INC.

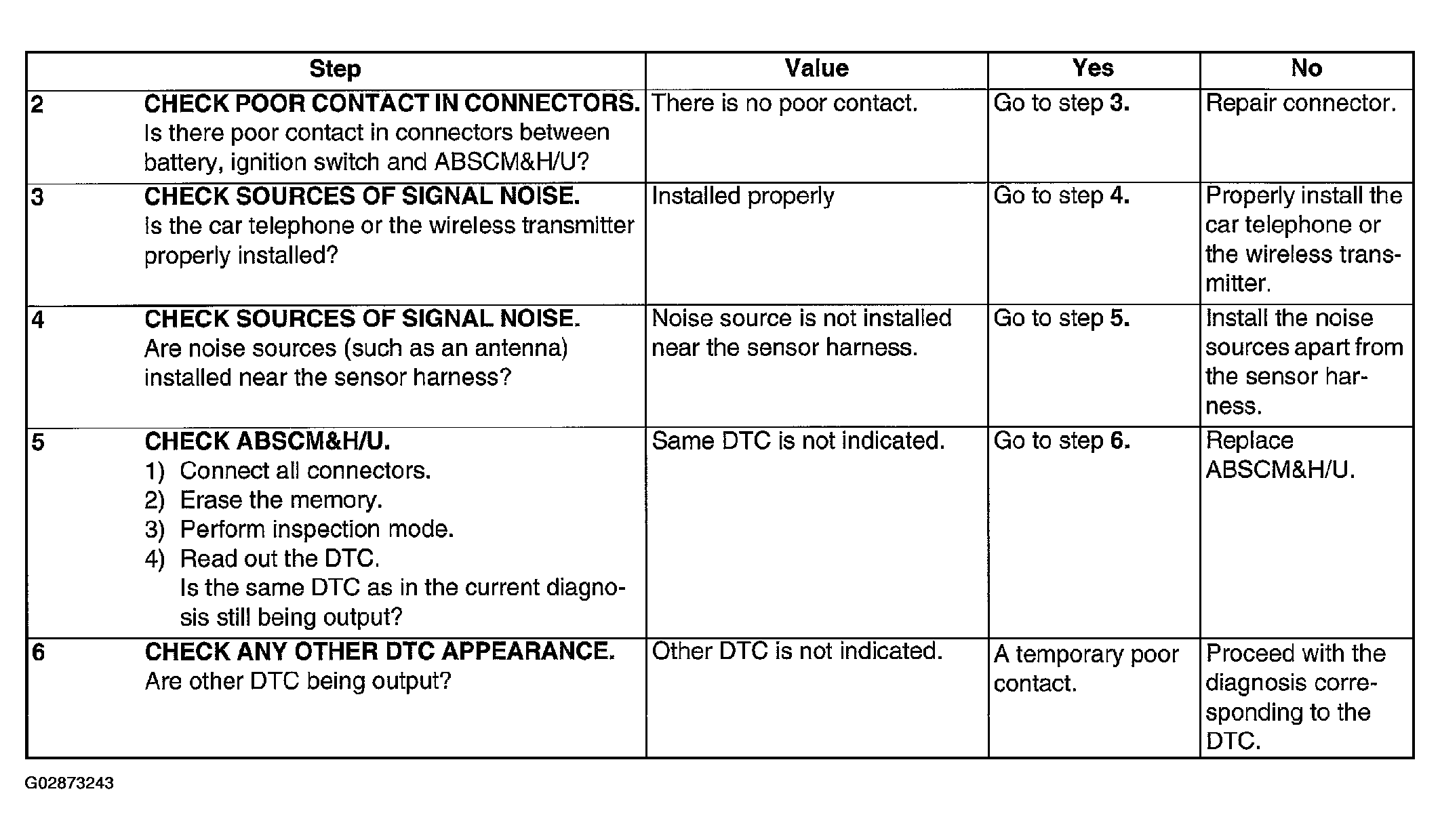

Fig 2: DTC 41: Abnormal ABS Control Module Diagnostic Chart (Steps 2 - 6)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
