Diagnostics Chart with Subaru Select Monitor
>>
Communication For Initializing Impossible
>>
Diagnostic Procedures:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures:

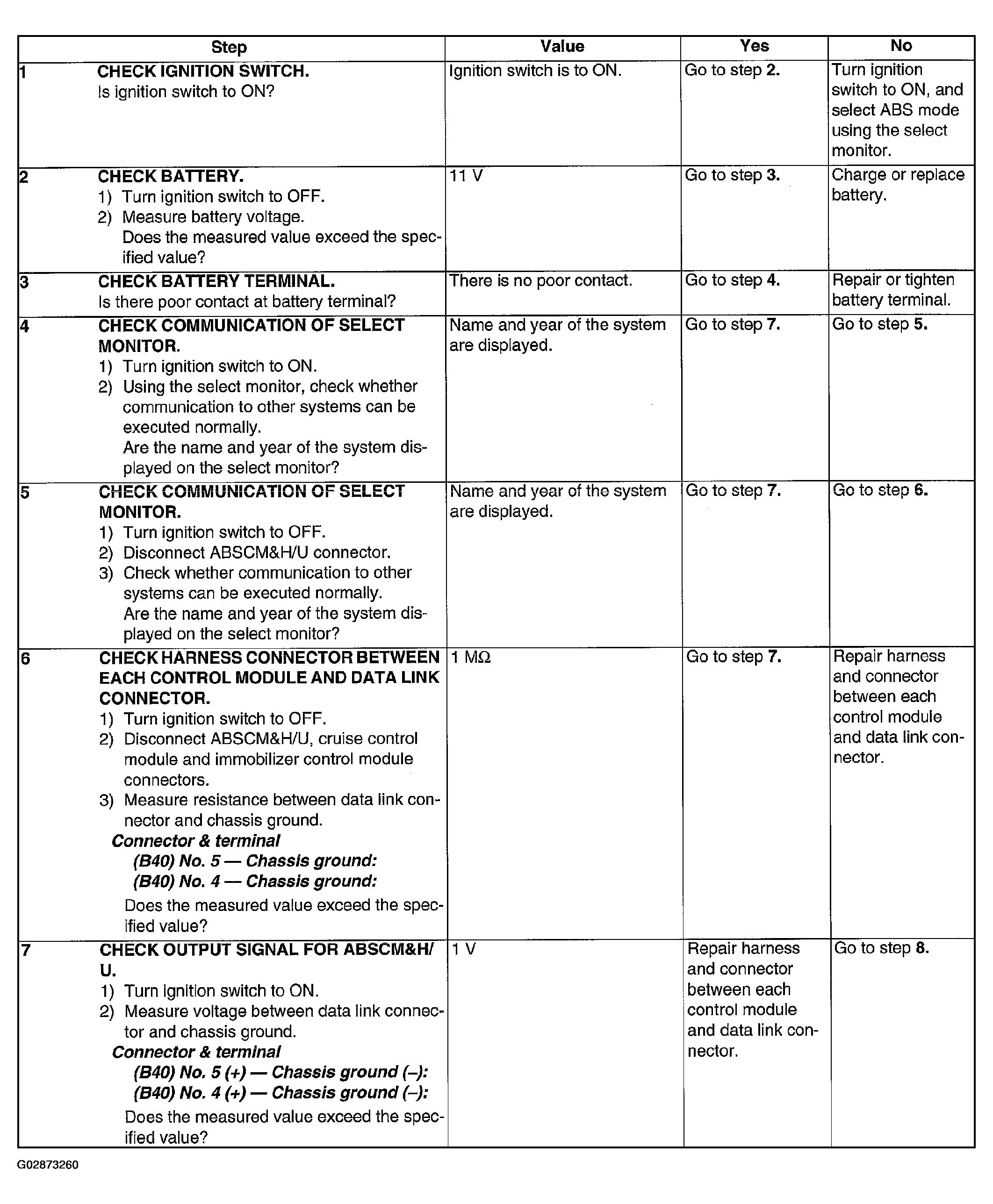

Fig 1: Communication For Initializing Impossible Diagnostic Chart (Steps 1 - 7)
Courtesy of SUBARU OF AMERICA, INC.

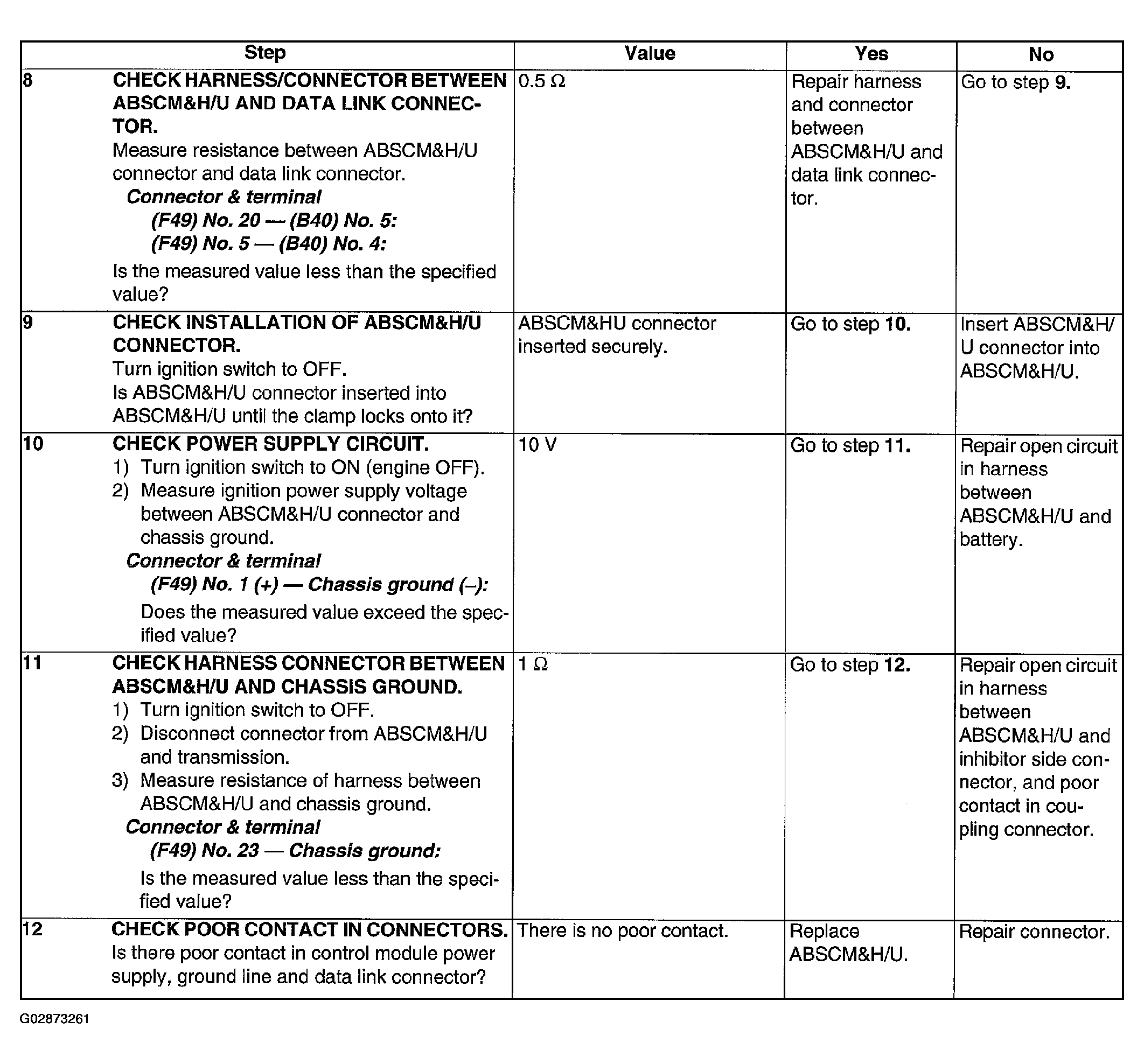

Fig 2: Communication For Initializing Impossible Diagnostic Chart (Steps 8 - 12)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
