Instrumentation-Driver Info - Mechanism & Function
>>
Combination Meter
>>
Speedometer
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

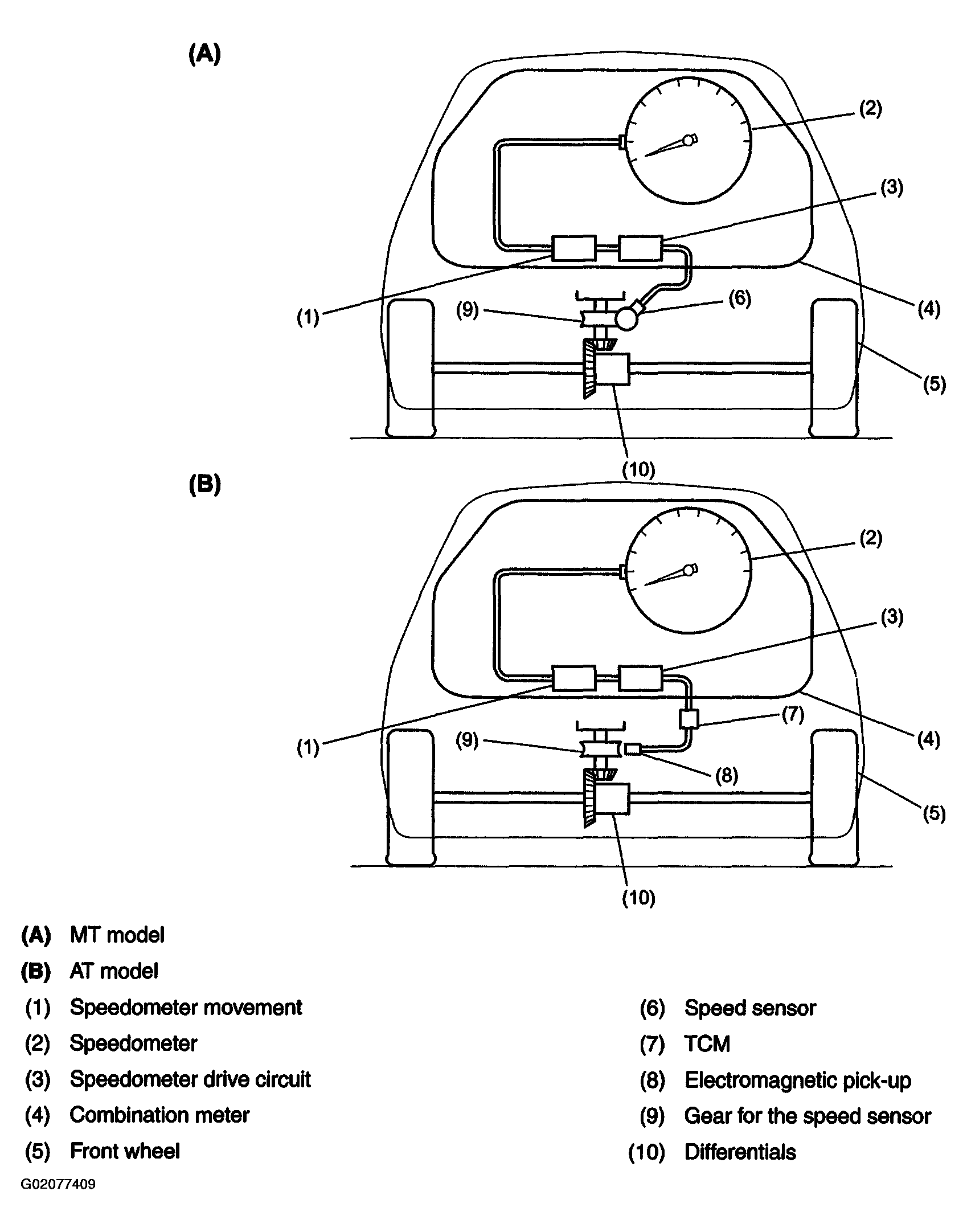

Fig 1: Identifying Vehicle Speed Signal System Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
