Power Assisted System (Power Steering): General Description: Specifications

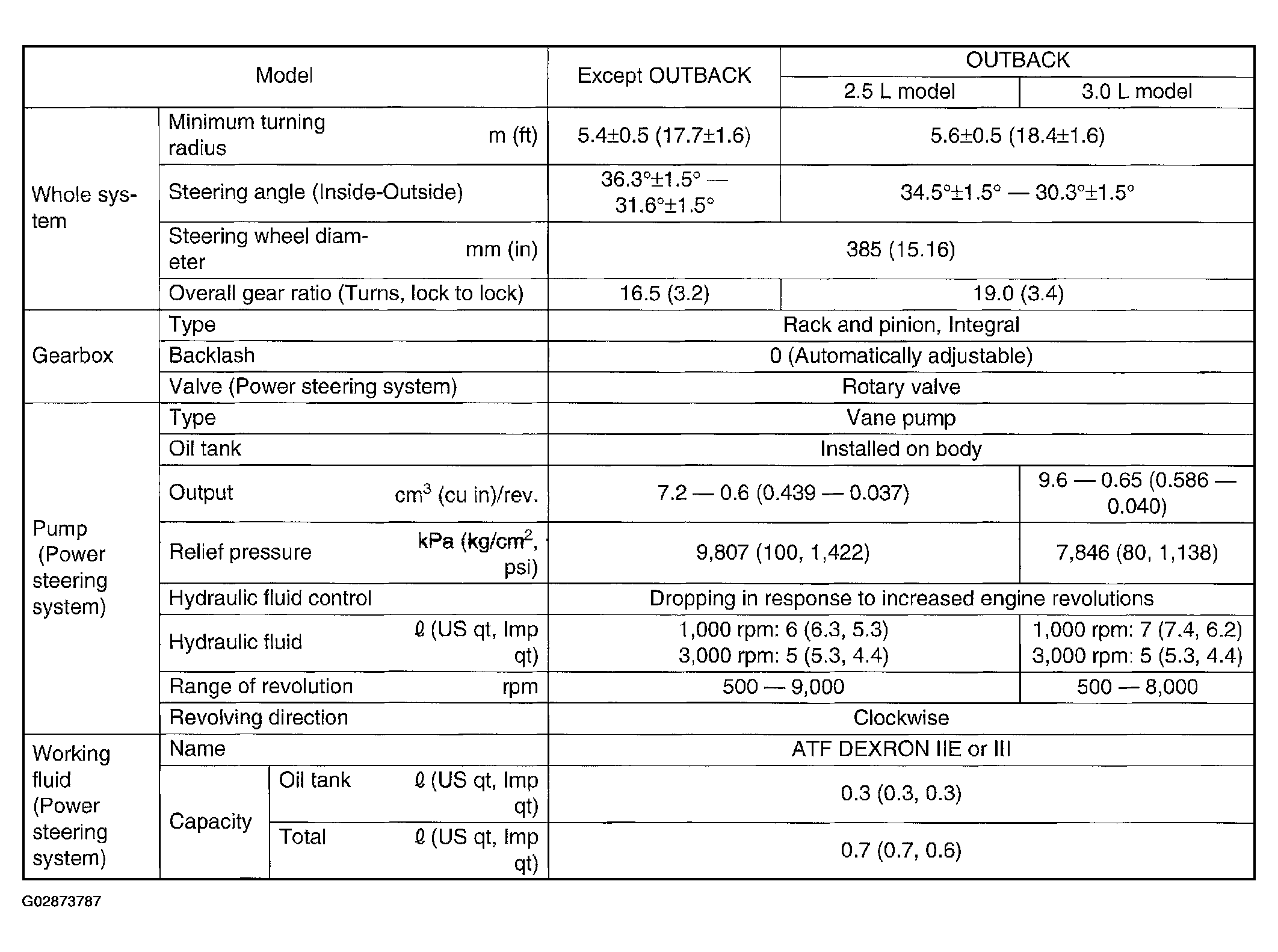

Fig 1: Power Assisted System (Power Steering) Specifications Chart (1 Of 2)
G02873787Courtesy of SUBARU OF AMERICA, INC.

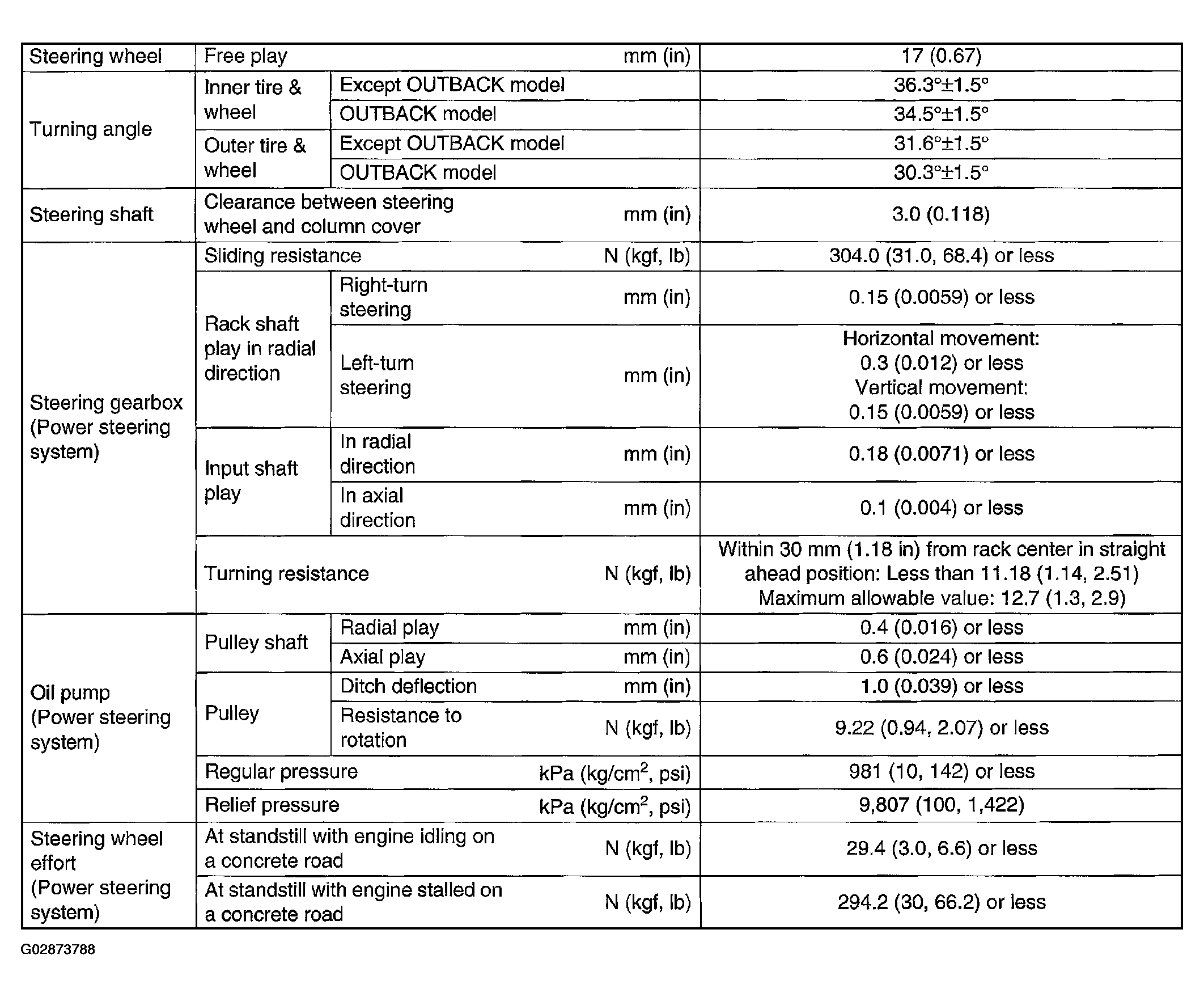

Fig 2: Power Assisted System (Power Steering) Specifications Chart (2 Of 2)
G02873788Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Recommended Power Steering Fluid Specification Chart
G02873789Courtesy of SUBARU OF AMERICA, INC.
CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.

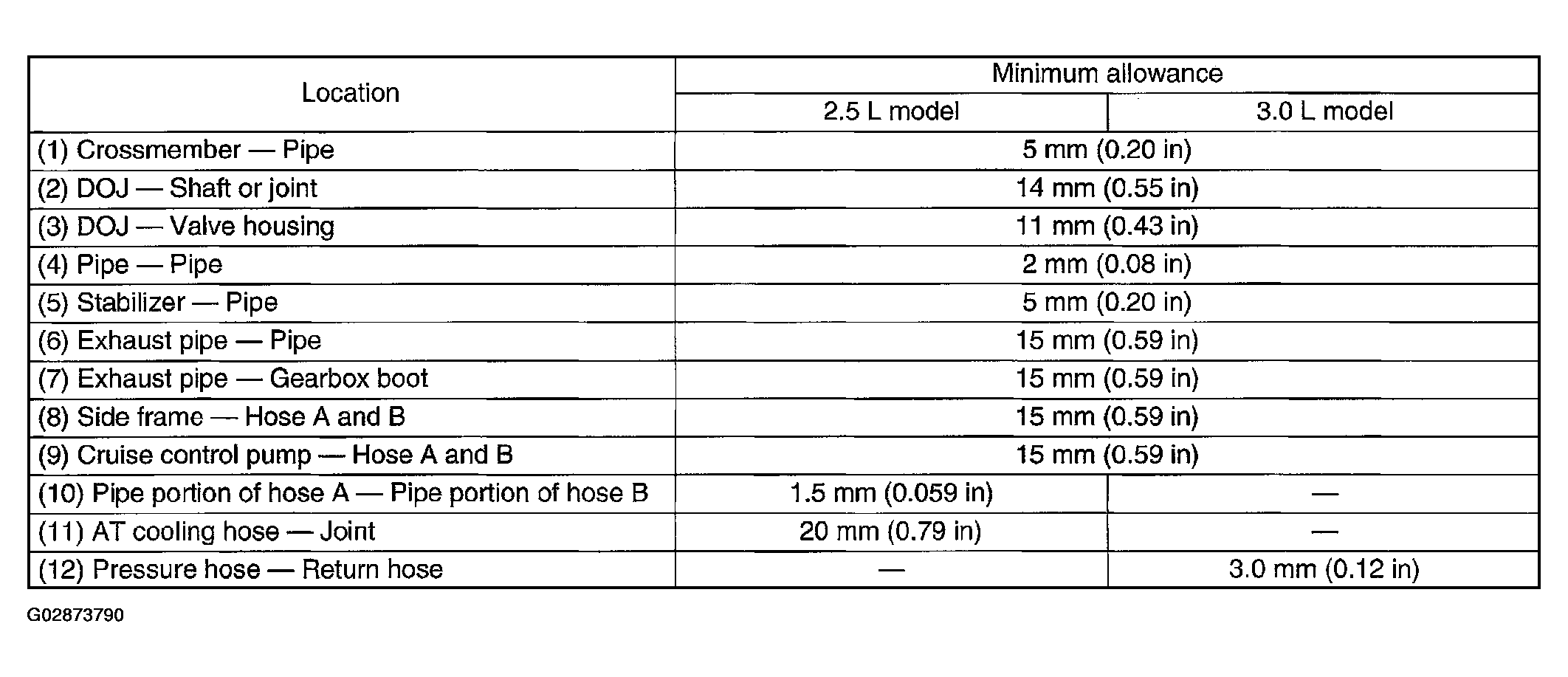

Fig 4: Clearances Specifications Chart
G02873790Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Clearances
G02873791Courtesy of SUBARU OF AMERICA, INC.
