Electrical Component: Location

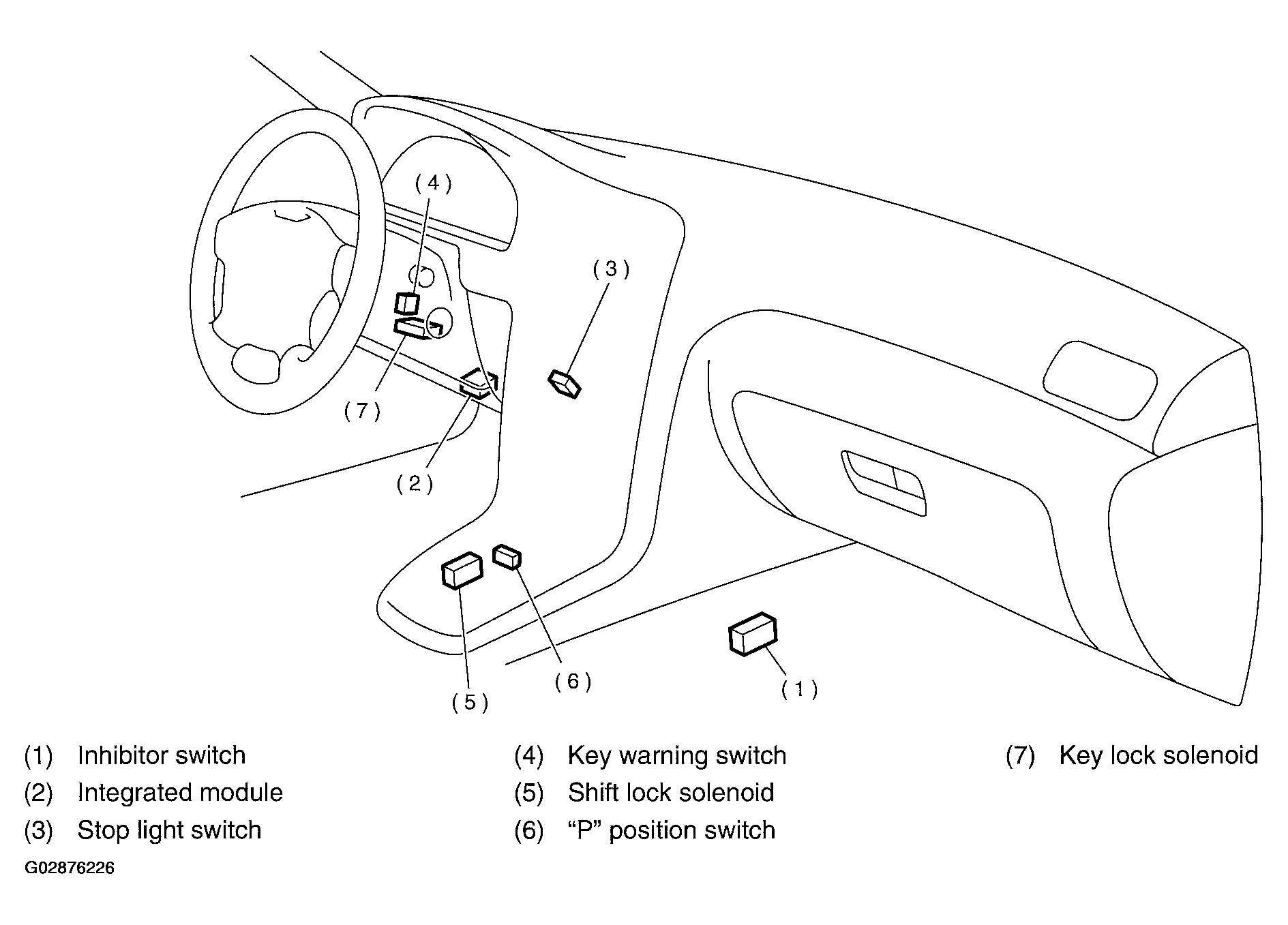

Fig 1: Identifying Location Of Electrical Component (1 Of 2)
G02876226Courtesy of SUBARU OF AMERICA, INC.

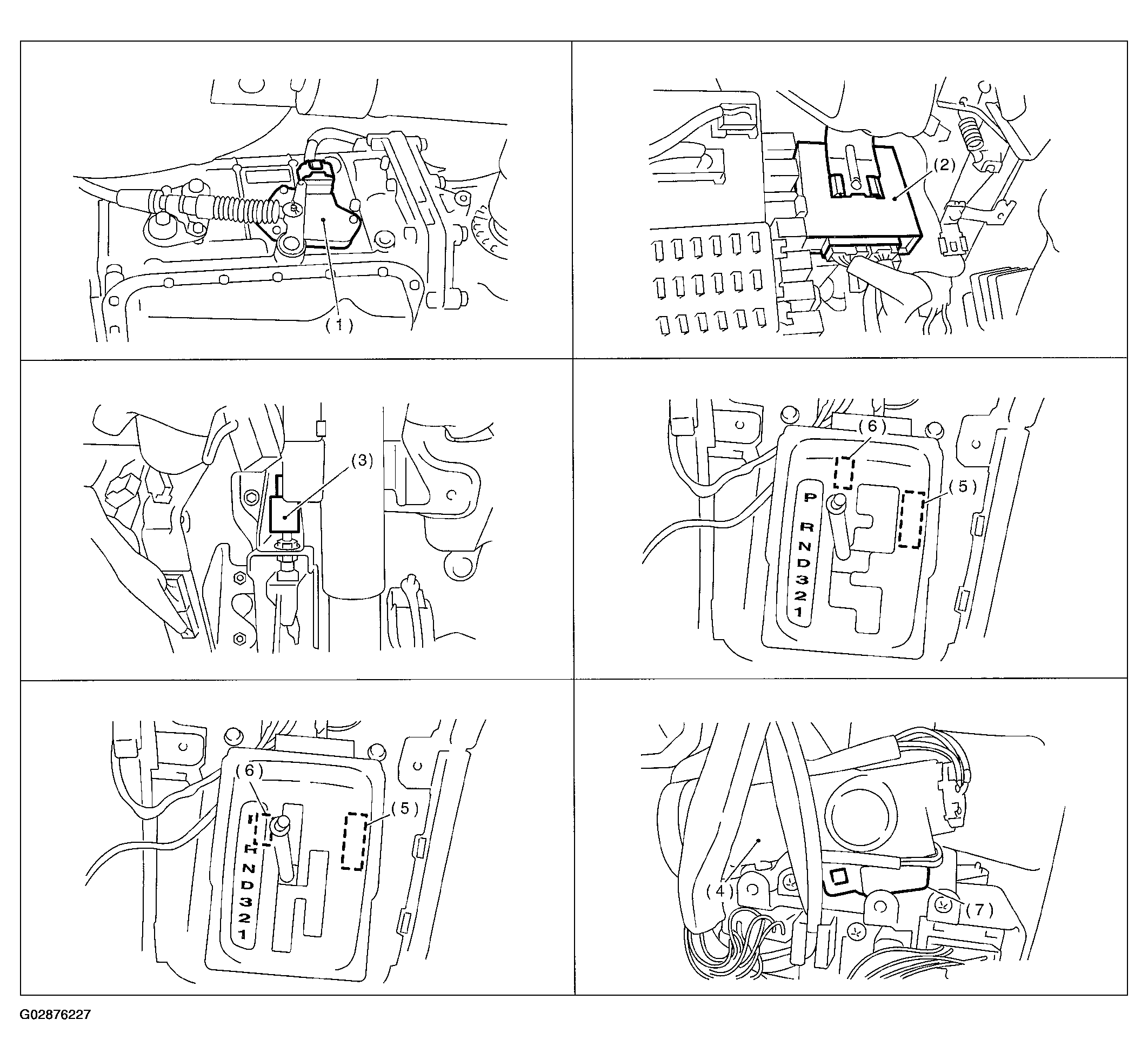

Fig 2: Identifying Location Of Electrical Component (2 Of 2)
G02876227Courtesy of SUBARU OF AMERICA, INC.
