Select Lever: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Move the select lever to "N" position.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
2.5 L model
1. < Ref. to REMOVAL , Rear Exhaust Pipe> and < Ref. to REMOVAL , Muffler.>
3.0 L model
1. < Ref. to REMOVAL , Rear Exhaust Pipe> and < Ref. to REMOVAL , Muffler.>
Remove the heat shield cover. (If equipped)
Disconnect the cable from select lever, and then remove the cable bracket.

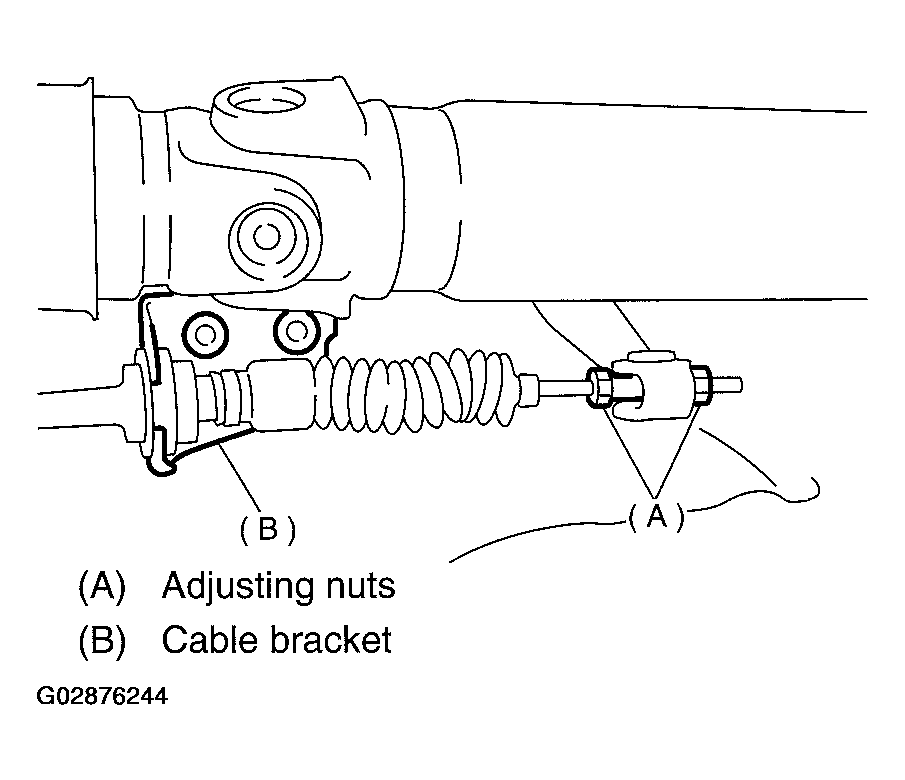

Fig 1: Disconnecting Cable From Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the console box. < Ref. to REMOVAL , Console Box.>
Disconnect the connectors, then remove the four bolts to take out the select lever assembly from body.

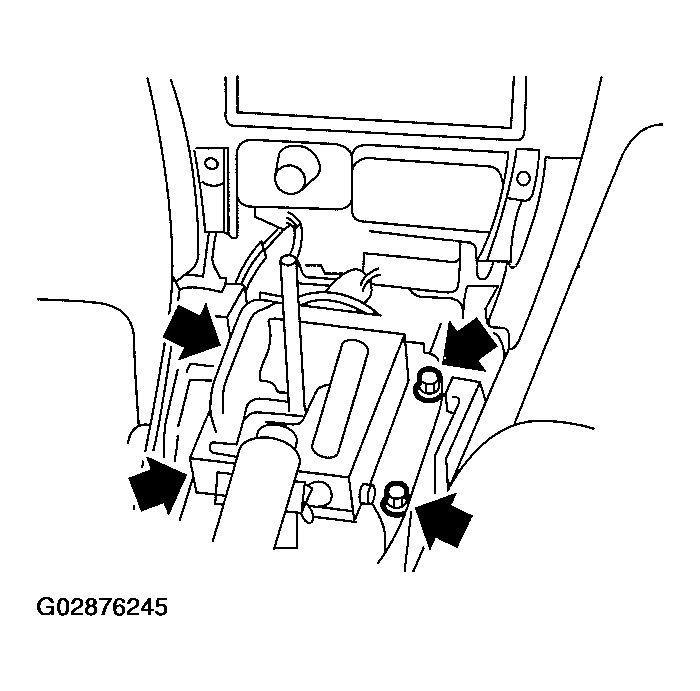

Fig 2: Removing Select Lever Assembly Bolts

Courtesy of SUBARU OF AMERICA, INC.
