Main Switch

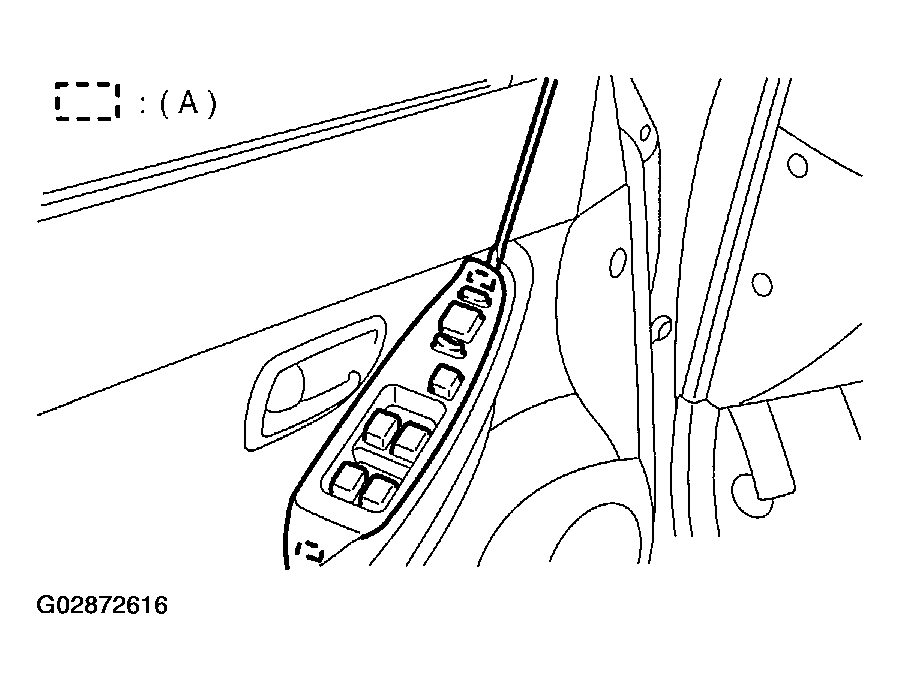

Remove two hooks (A) of switch panel to remove power window main switch.

Fig 1: Removing Two Hooks Of Switch Panel
Courtesy of SUBARU OF AMERICA, INC.
Disconnect electrical connectors from power window main switch and mirror switch.

Fig 2: Disconnecting Electrical Connectors From Power Window Main Switch
Courtesy of SUBARU OF AMERICA, INC.
