Integrated Module

Integrated Module

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower cover.

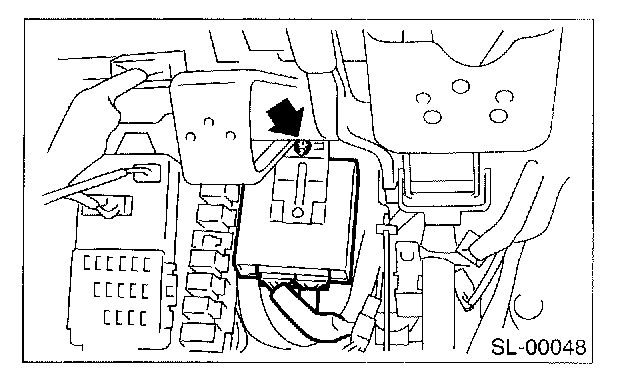

3. Remove the nut, then remove the integrated module while disconnecting the connector.

INSTALLATION

Install in the reverse order of removal.
