Alarm Module: Testing and Inspection
Security Control ModuleINSPECTION
IMPACT SENSITIVITY TEST
1. Remove the key from the ignition switch.
2. Close all windows.
3. Close all doors and the rear gate.
4. Cover the hood with a blanket.
5. Press the LOCK/ARM button of the transmitter.
6. Confirm that the security indicator light blinks every 2 seconds.

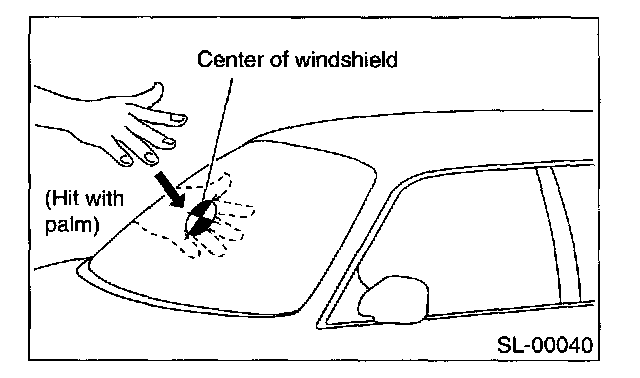

7. Hit the center of the windshield with your palm and make sure the alarm operates.
If NG, adjust the impact sensitivity.
