Integrated Module: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.
Remove the knee bolster.

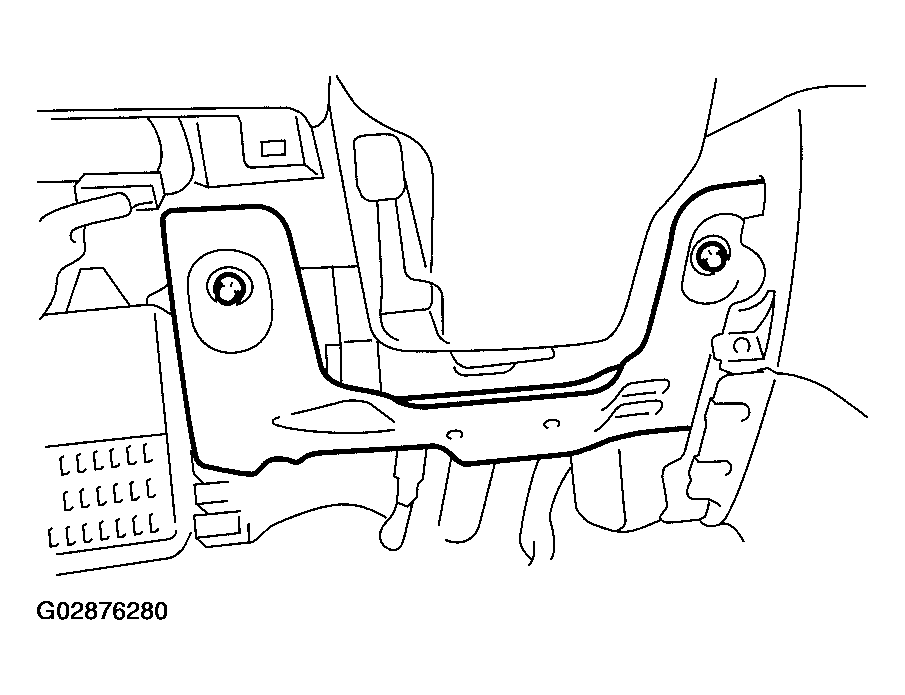

Fig 2: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from integrated module.
Remove the integrated module.

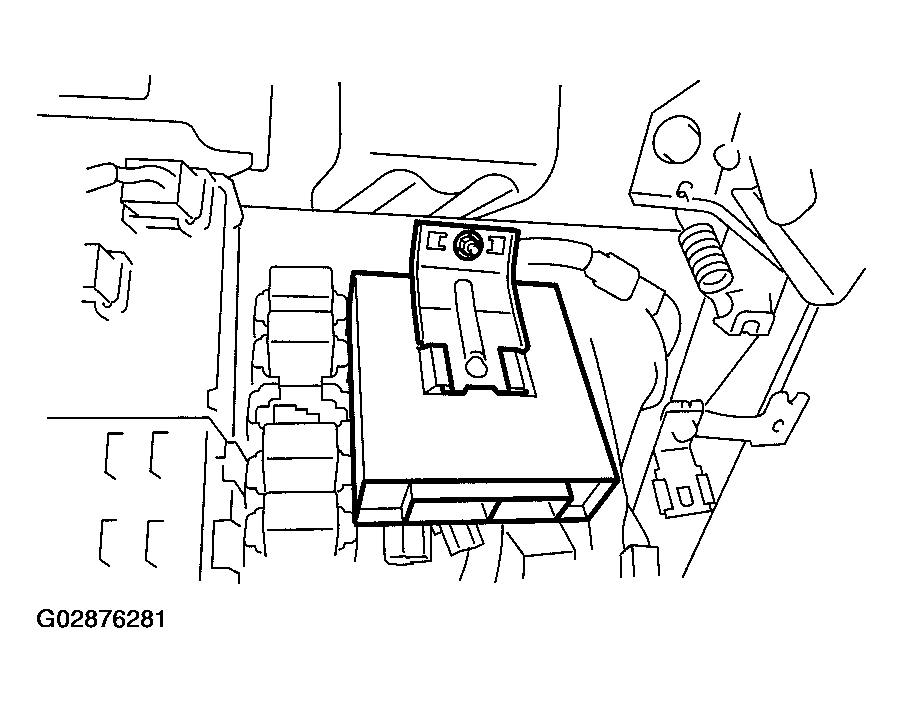

Fig 3: Removing Integrated Module

Courtesy of SUBARU OF AMERICA, INC.
