Impact Sensitivity Test

  1. Remove the key from the ignition switch.
  2. Close all windows.
  3. Close all doors and the rear gate.
  4. Cover the hood with a blanket.
  5. Press the LOCK/ARM button of the transmitter.
  6. Confirm that the security indicator light blinks every 2 seconds.
  7. Hit the center of the windshield with your palm and make sure the alarm operates.

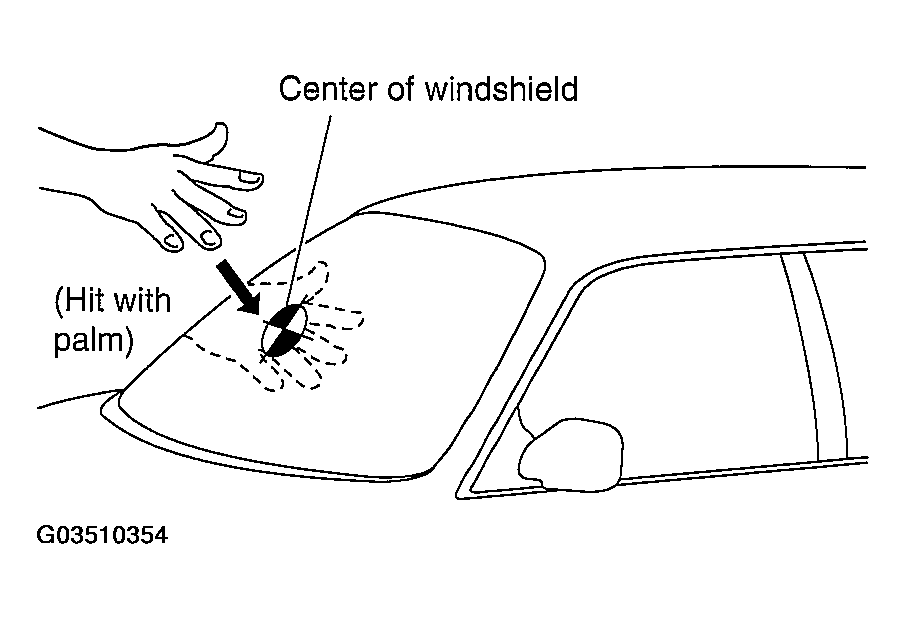

    Fig 1: Hitting Center Of Windshield
    G03510354Courtesy of SUBARU OF AMERICA, INC.

    If NG, adjust the impact sensitivity. Refer to ADJUSTMENT , Security Control Module.
