Control Module I/O Signal: Measurement: Waveform

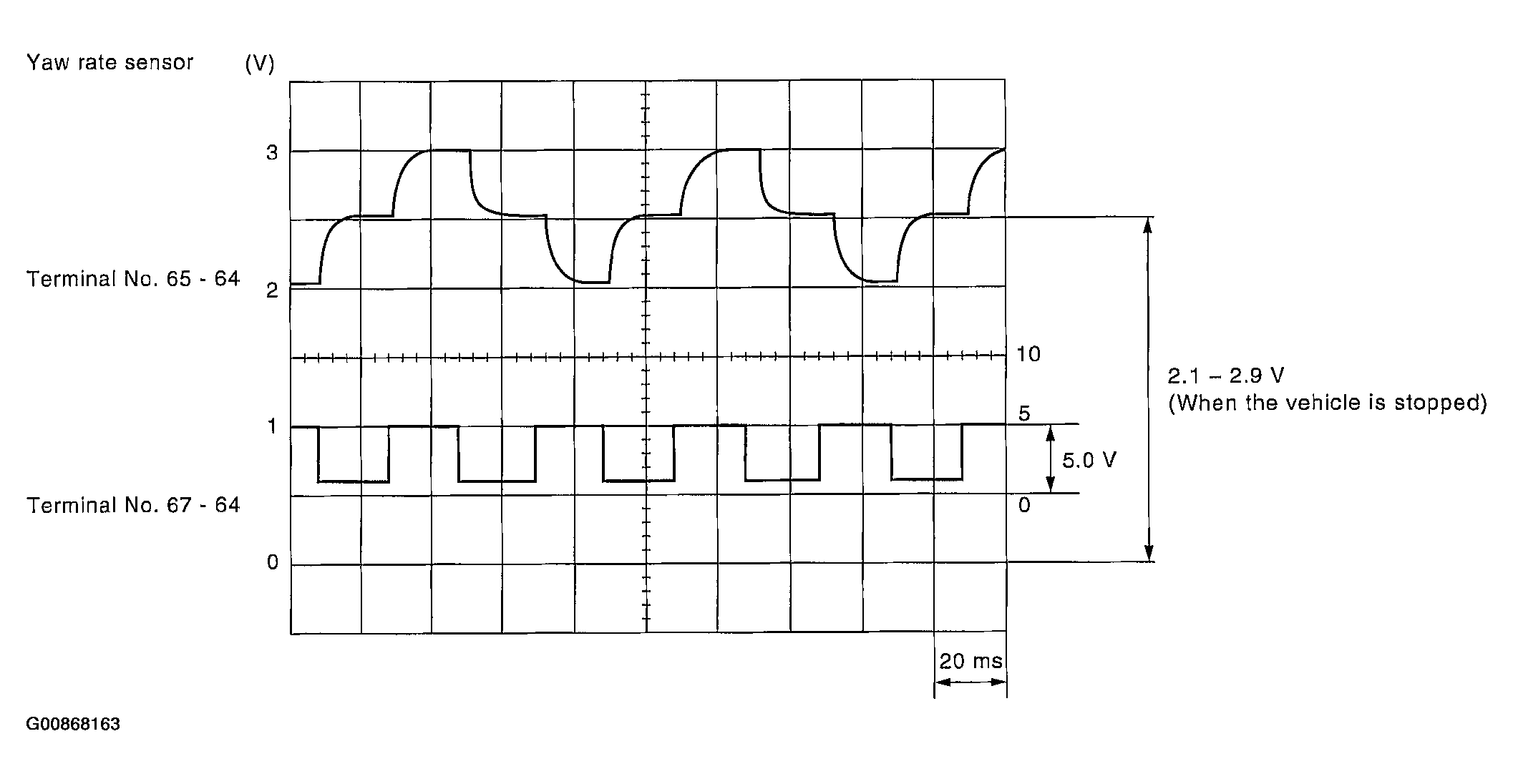

Fig 1: Meauring Input/Output Signal Voltage Waveform (1 Of 2)
G00868163Courtesy of SUBARU OF AMERICA, INC.

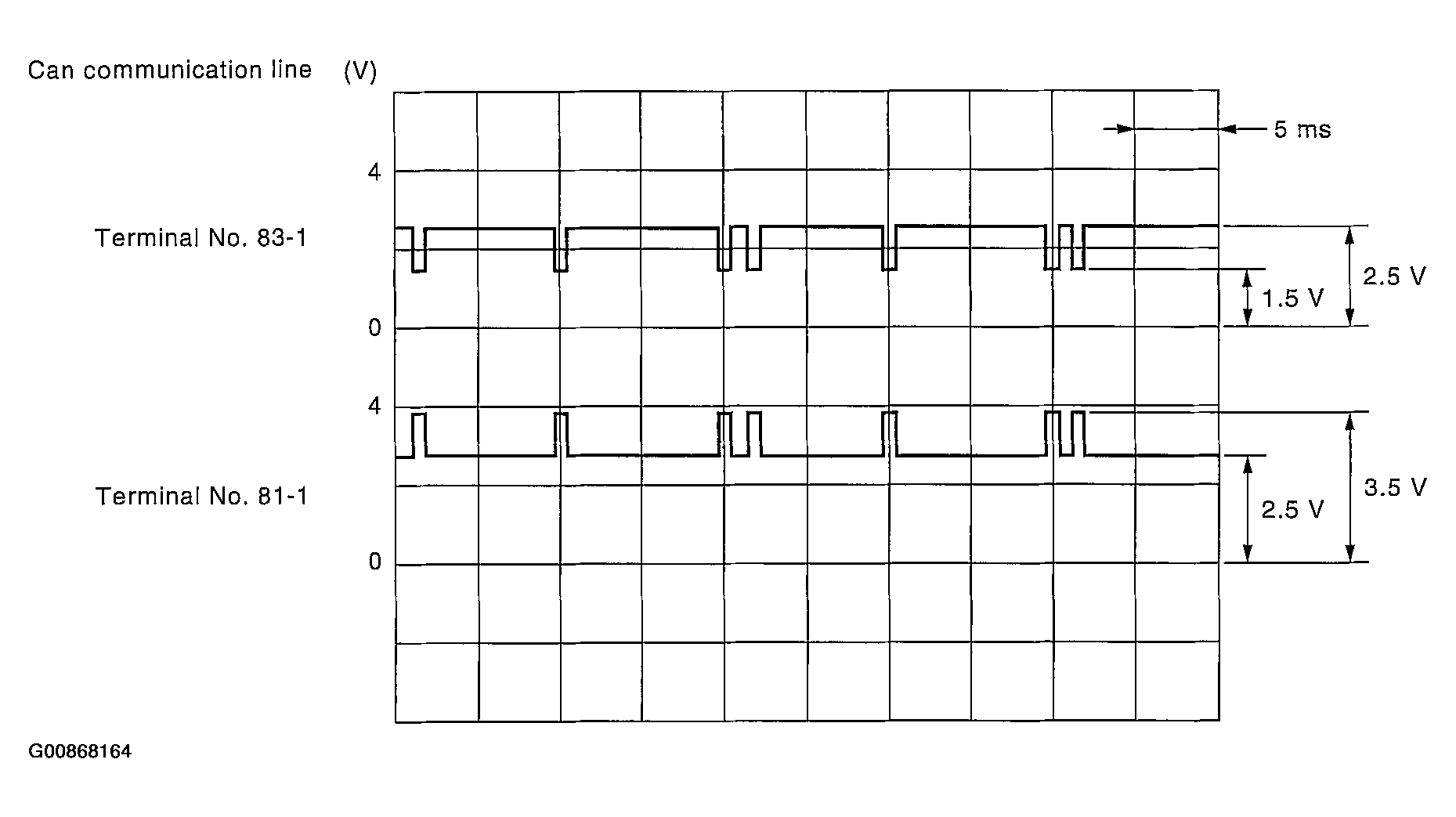

Fig 2: Measuring Input/Output Signal Voltage Waveform (2 Of 2)
G00868164Courtesy of SUBARU OF AMERICA, INC.
