Brakes
>>
Traction Control
>>
Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)
>>
Control Module I/O Signal
>>
Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Module I/O Signal: Schematic

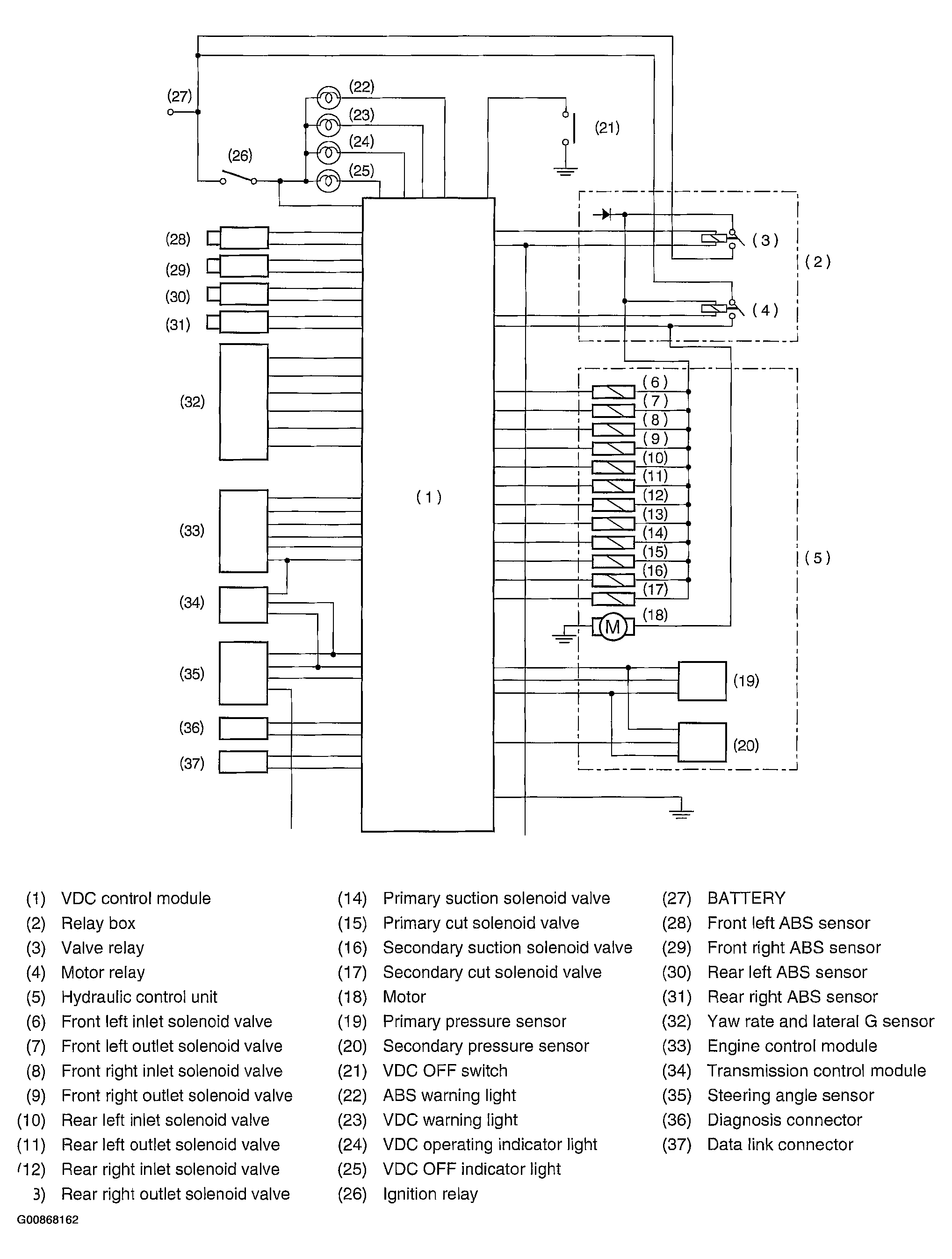

Fig 1: Control Module I/O Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
