Without SUBARU Select Monitor

  1. Take out diagnosis connector from side of driver's seat heater unit.

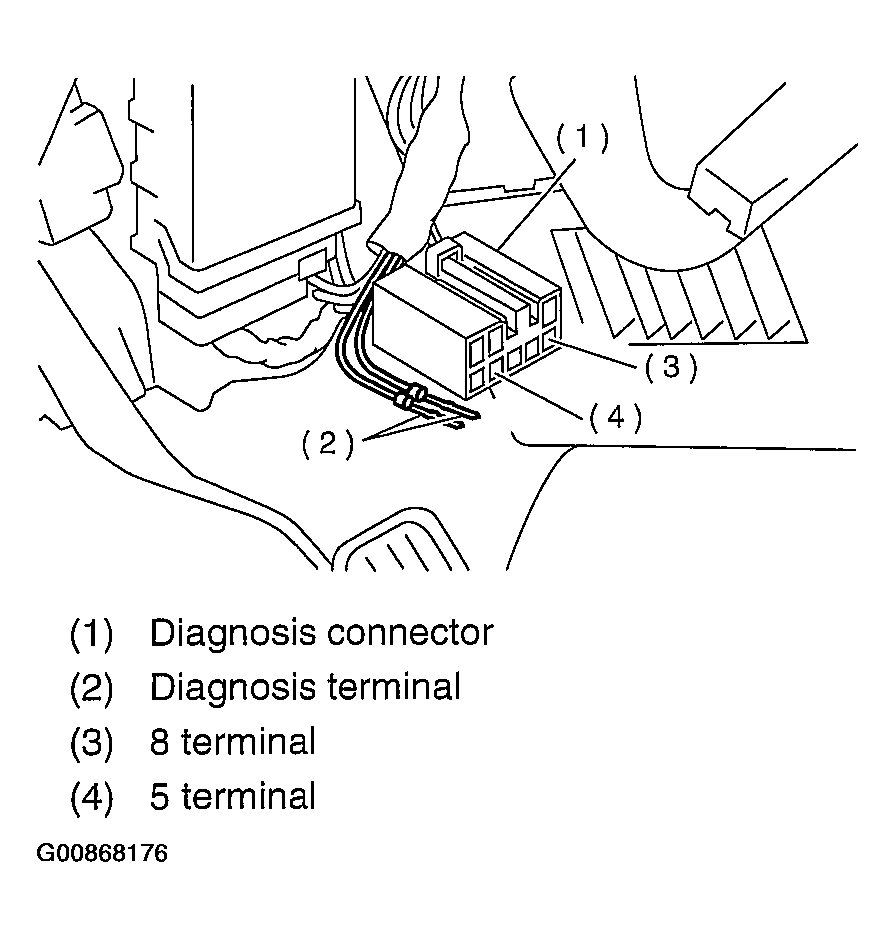

    Fig 1: Removing Diagnosis Connector From Side Of Driver's Seat Heater Unit
    G00868176Courtesy of SUBARU OF AMERICA, INC.
  2. Turn ignition switch OFF.
  3. Connect diagnosis connector terminal 8 to diagnosis terminal.
  4. Turn ignition switch ON.
  5. ABS warning light is set in the diagnostic mode and blinks to identify diagnostic trouble code (DTC).
  6. After the start code (11) is shown, the diagnostic trouble codes (DTCs) will be shown in order of the last information first.

    These repeat for a maximum of 5 minutes.

    NOTE:
    • When there are no diagnostic trouble codes (DTCs) in memory, only the start code (11) is shown.
    • When on-board diagnosis of the VDC control module detects a problem, the information (up to a maximum of three) will be stored in the EEP ROM as a diagnostic trouble code (DTC). When there are more than three, the most recent three will be stored. (Stored codes will stay in memory until they are cleared.)

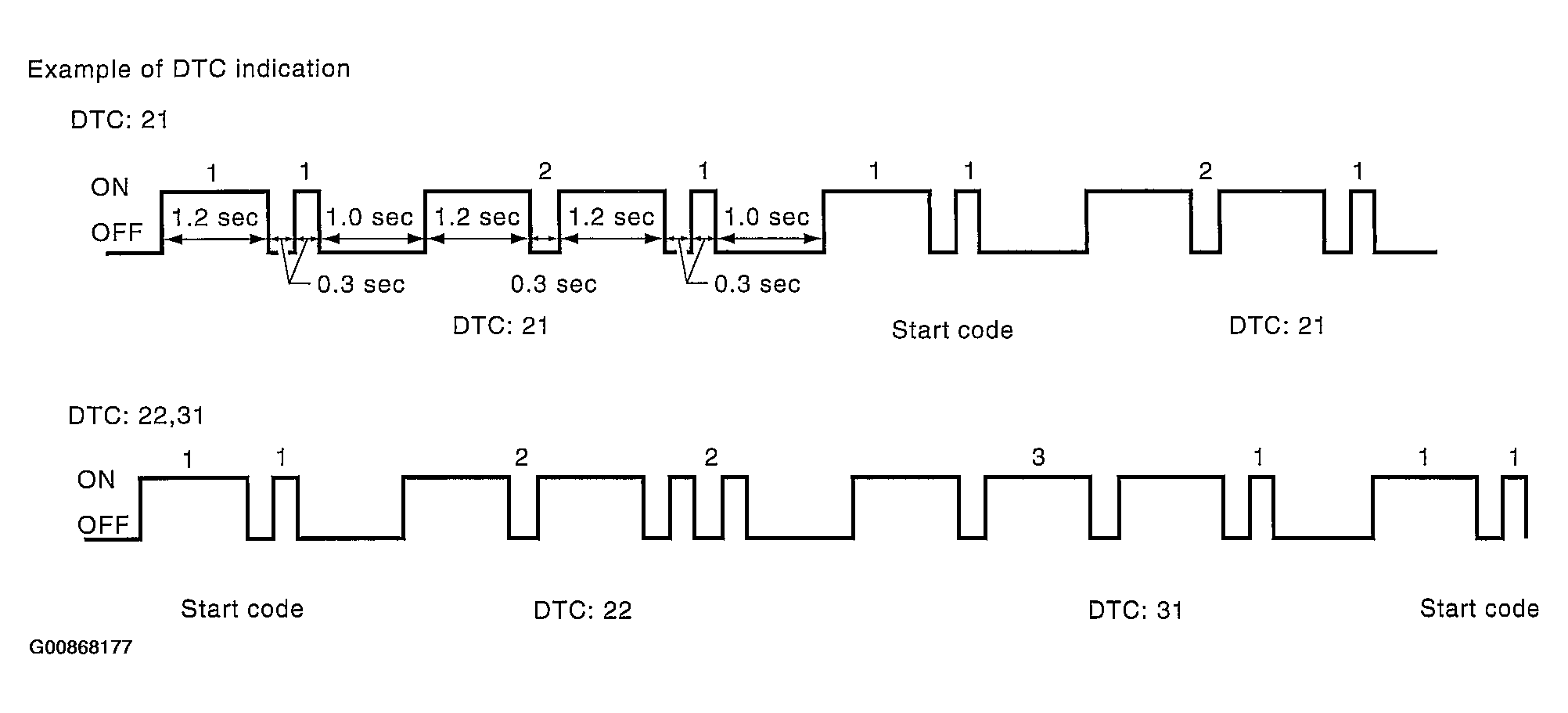

    Fig 2: Example Of DTC Indication
    G00868177Courtesy of SUBARU OF AMERICA, INC.
