Engine Control Module: Removal

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
Detach floor mat of passenger seat.

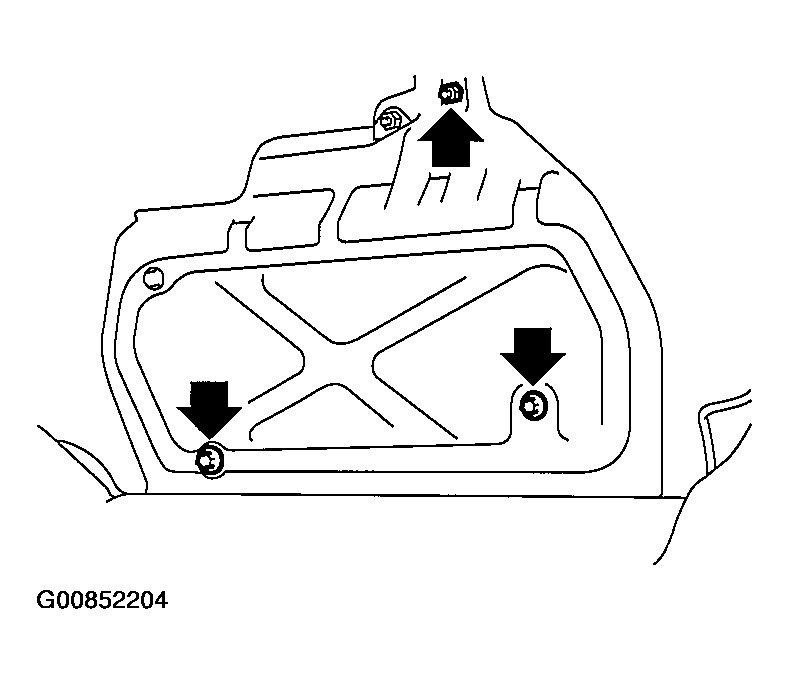

Remove protect cover.

Fig 2: Removing Lower Inner Trim Of Passenger Side
Courtesy of SUBARU OF AMERICA, INC.

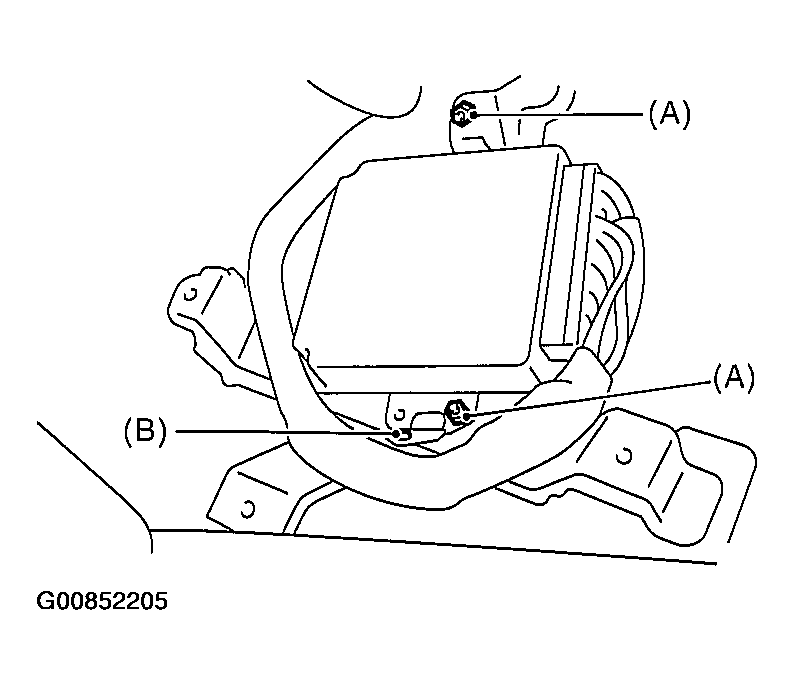

Remove nuts (A) which hold ECM to bracket.
Remove clip (B) from bracket.

Fig 3: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
