Model Without Electronic Control Throttle

  1. Disconnect ground cable from battery.
  2. Remove glove box. Refer to REMOVAL , Glove Box.
  3. Remove nut, then remove cruise control module (A) and the other electrical control module (B) while disconnecting connector.

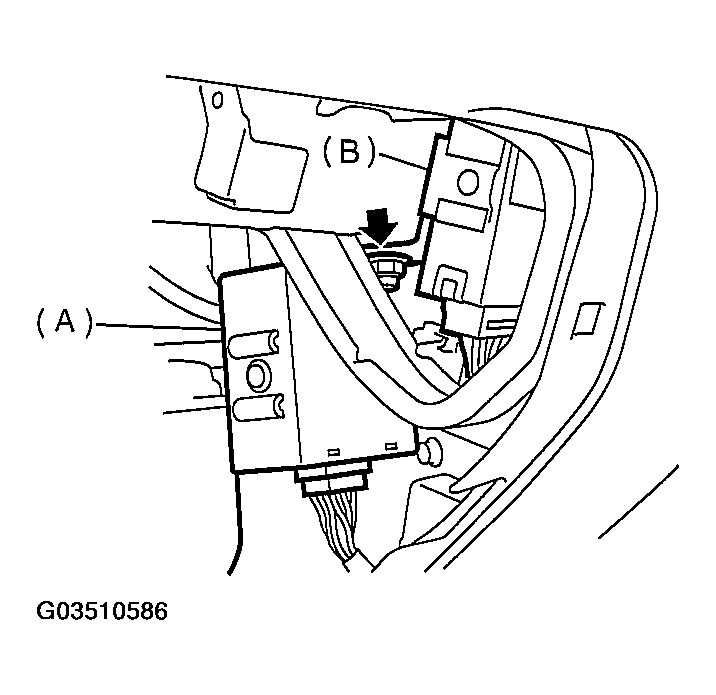

    Fig 1: Removing Nut Remove Cruise Control Module
    G03510586Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect cruise control module and the other electrical control module.
