Main Relay: Removal

  1. Disconnect battery ground cable.
    Fig 1: Disconnecting Battery Ground Cable
    G00852206Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover of driver side.
  3. Disconnect connectors from main relay.

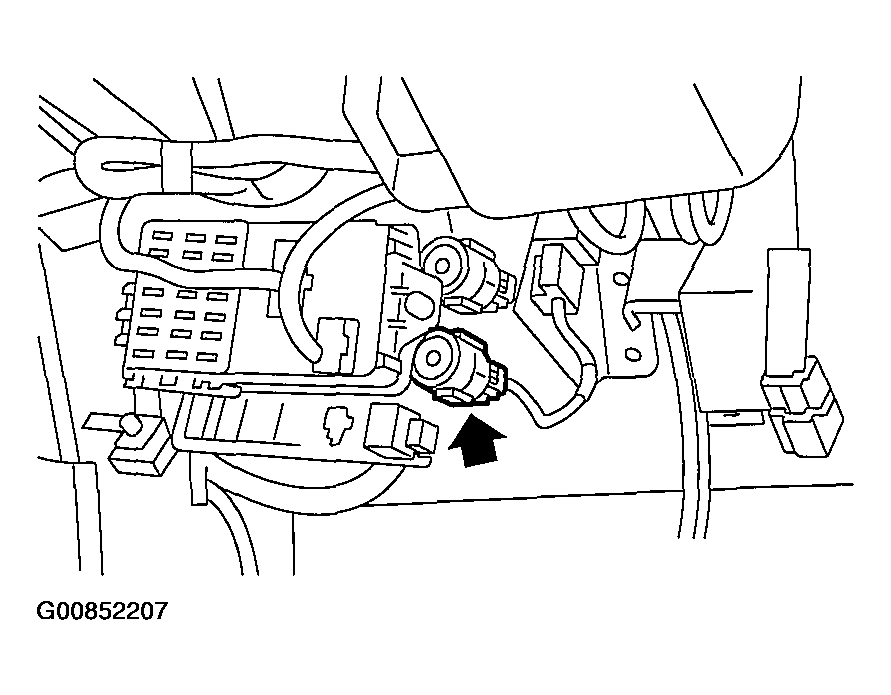

    Fig 2: Disconnecting Connectors From Main Relay
    G00852207Courtesy of SUBARU OF AMERICA, INC.
  4. Remove main relay from bracket.
