Turbo Models

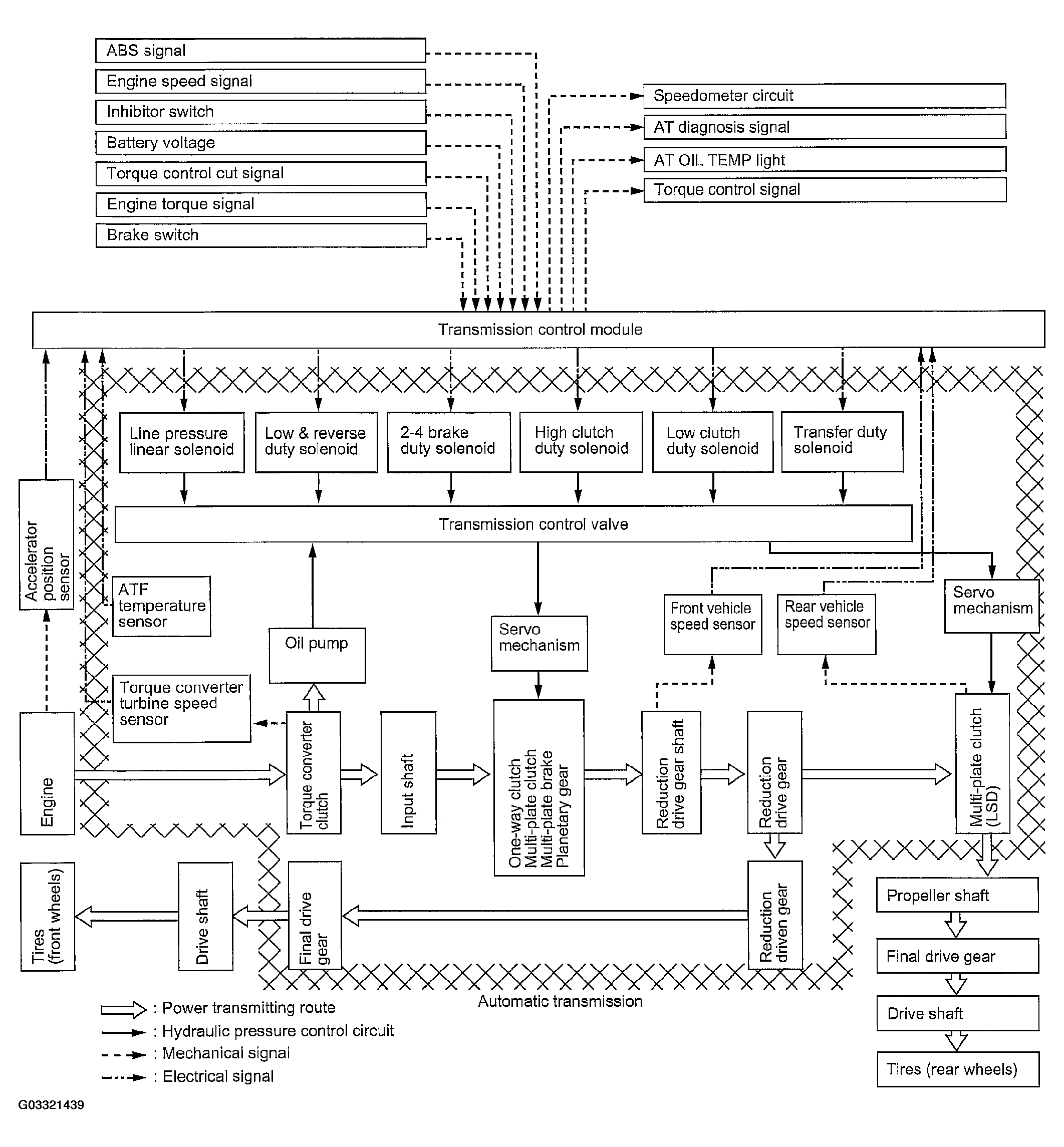

Fig 1: Turbo Models Schematic Diagrams
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
