A/T & M/T Control Systems: General Description: Component

AT SELECT LEVER (EXCEPT SPORT SHIFT MODEL)

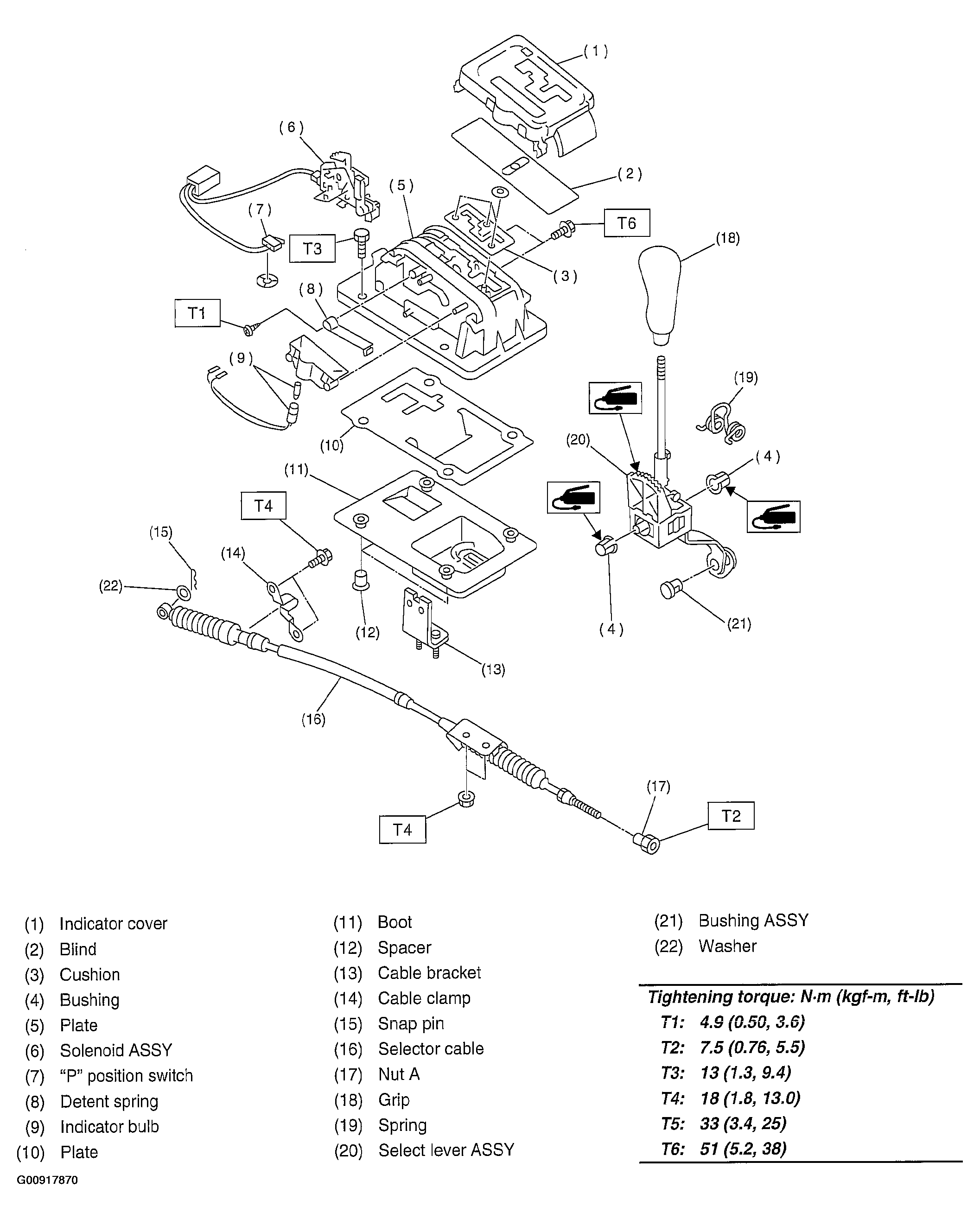

Fig 1: Exploded View Of AT Select Lever (Except Sport Shift Model) Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
AT SELECT LEVER (SPORT SHIFT MODEL)

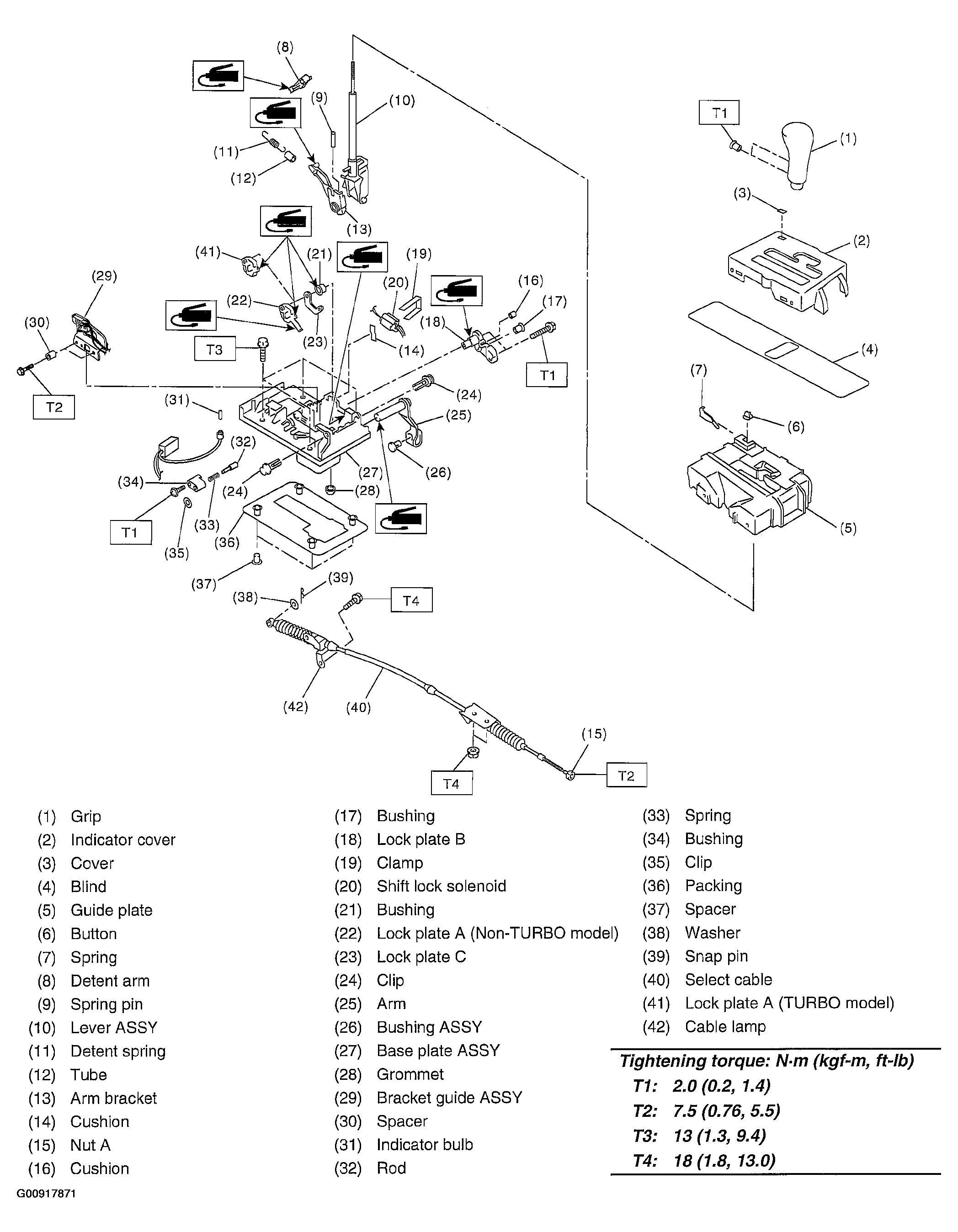

Fig 2: Exploded View Of AT Select Lever (Sport Shift Model) Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
MT GEAR SHIFT LEVER

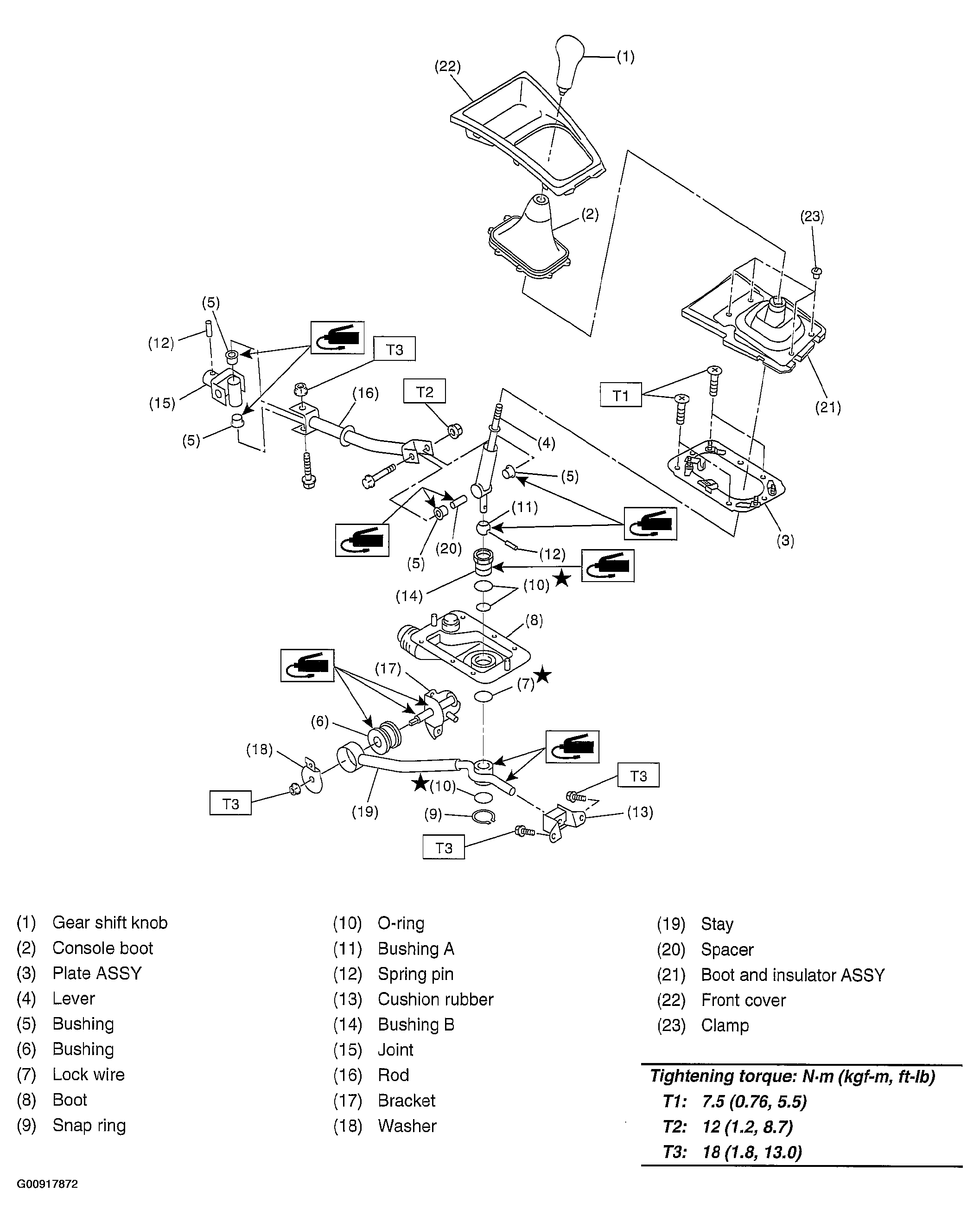

Fig 3: Exploded View Of MT Gear Shift Lever Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
