Conditions For Abs Sequence Control

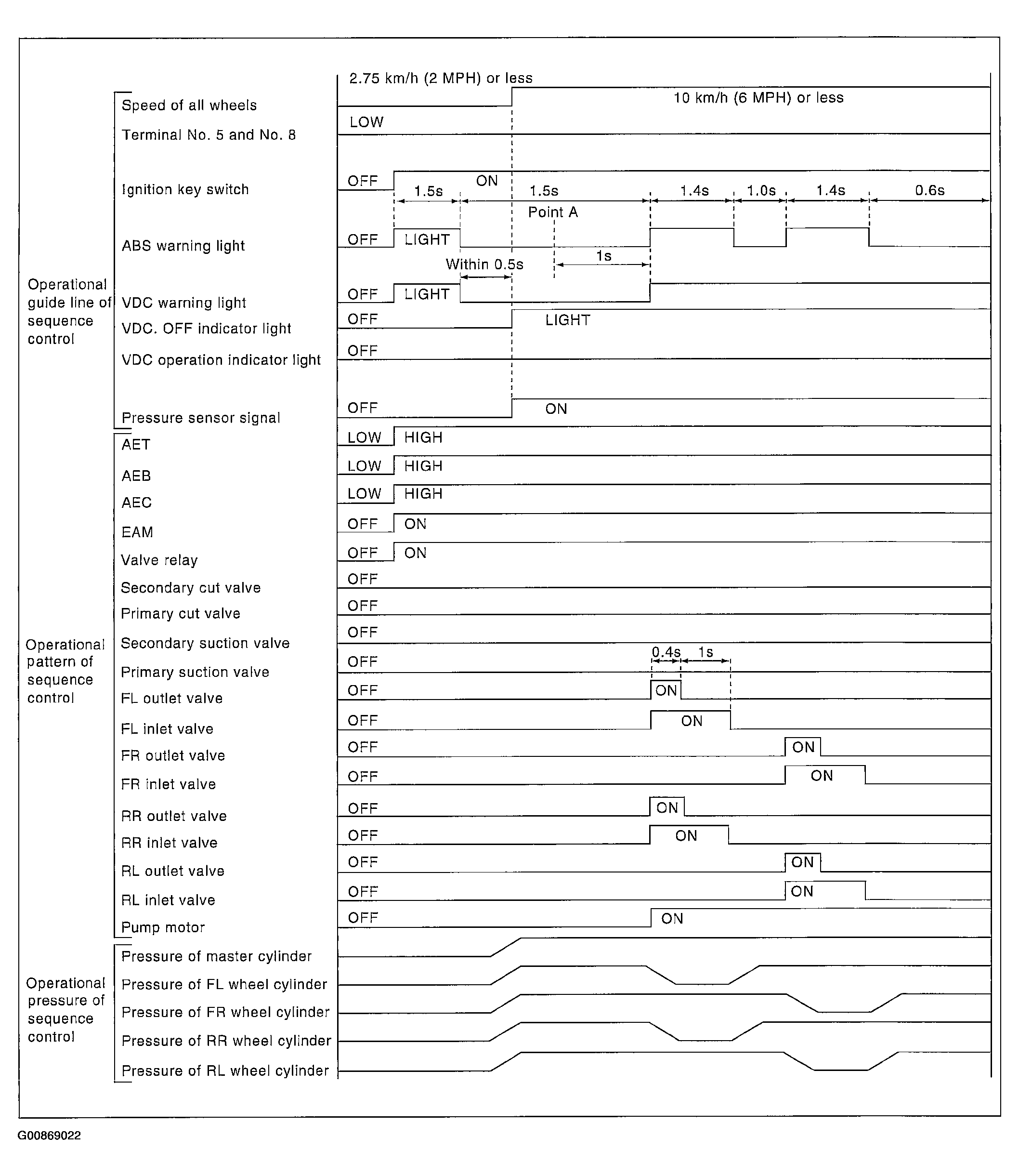

Fig 1: ABS Sequence Control Conditions Diagram
G00869022Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
  1. HIGH means high voltage.
  2. LOW means low voltage.
