Home >> Subaru >> 2004 >> Baja Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine (Diagnostics) (H4SO) >> Basic Diagnostic Procedure >> Procedure >> Engine
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Basic Diagnostic Procedure: Procedure: Engine

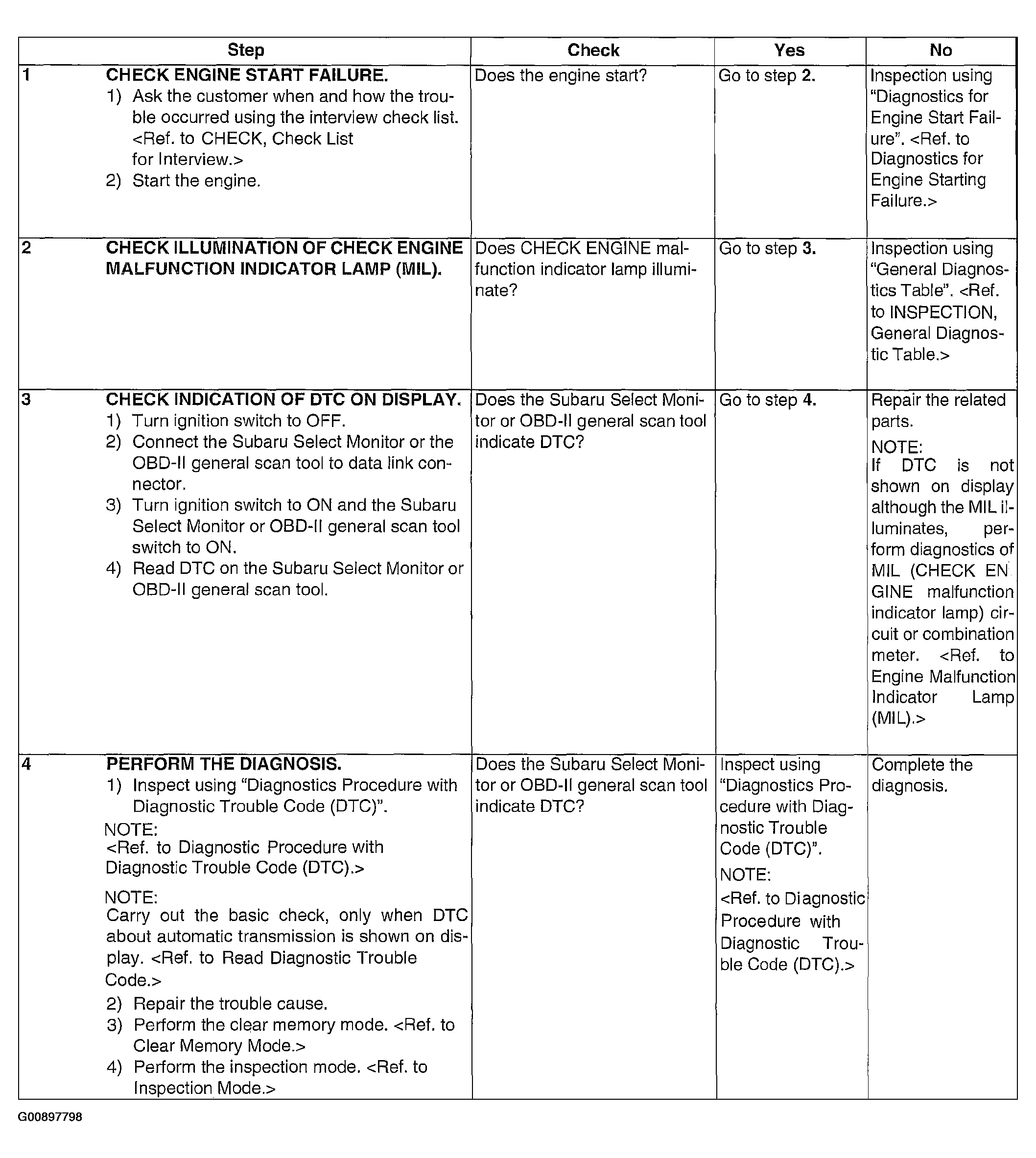

Fig 1: Identifying Basic Diagnostic Procedure Of Engine
G00897798Courtesy of SUBARU OF AMERICA, INC.
