Electrical Specification

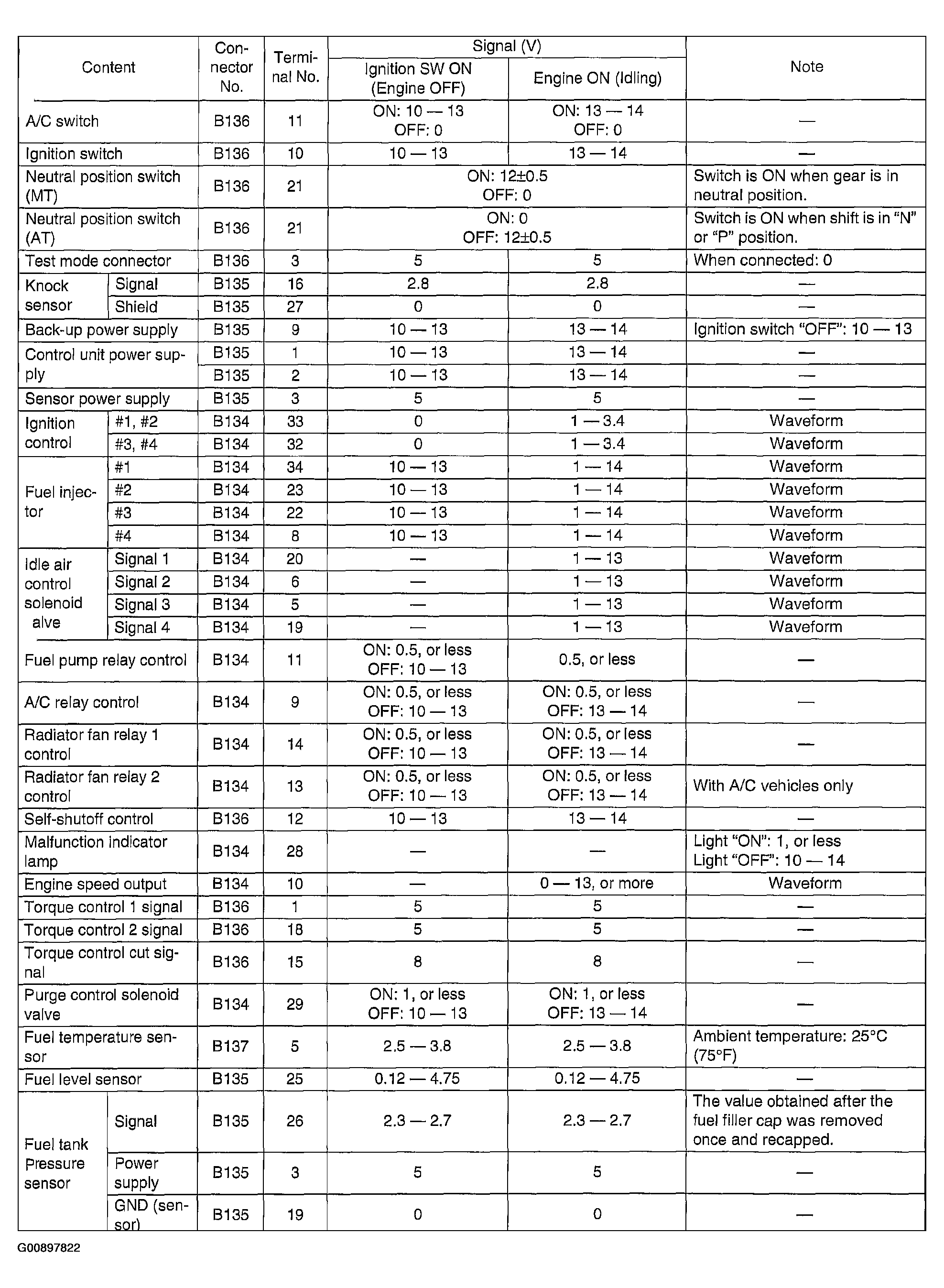

Fig 1: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

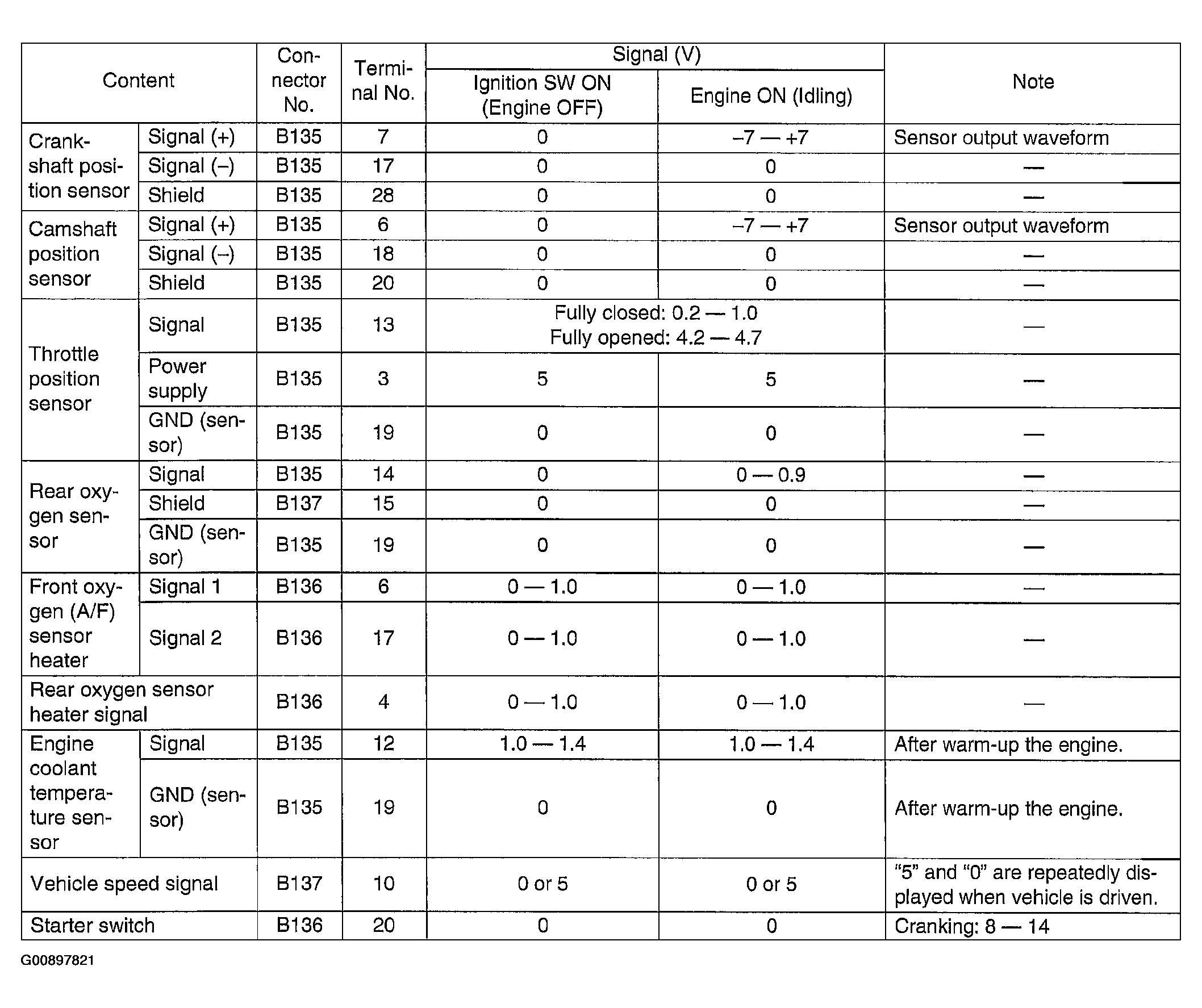

Fig 2: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

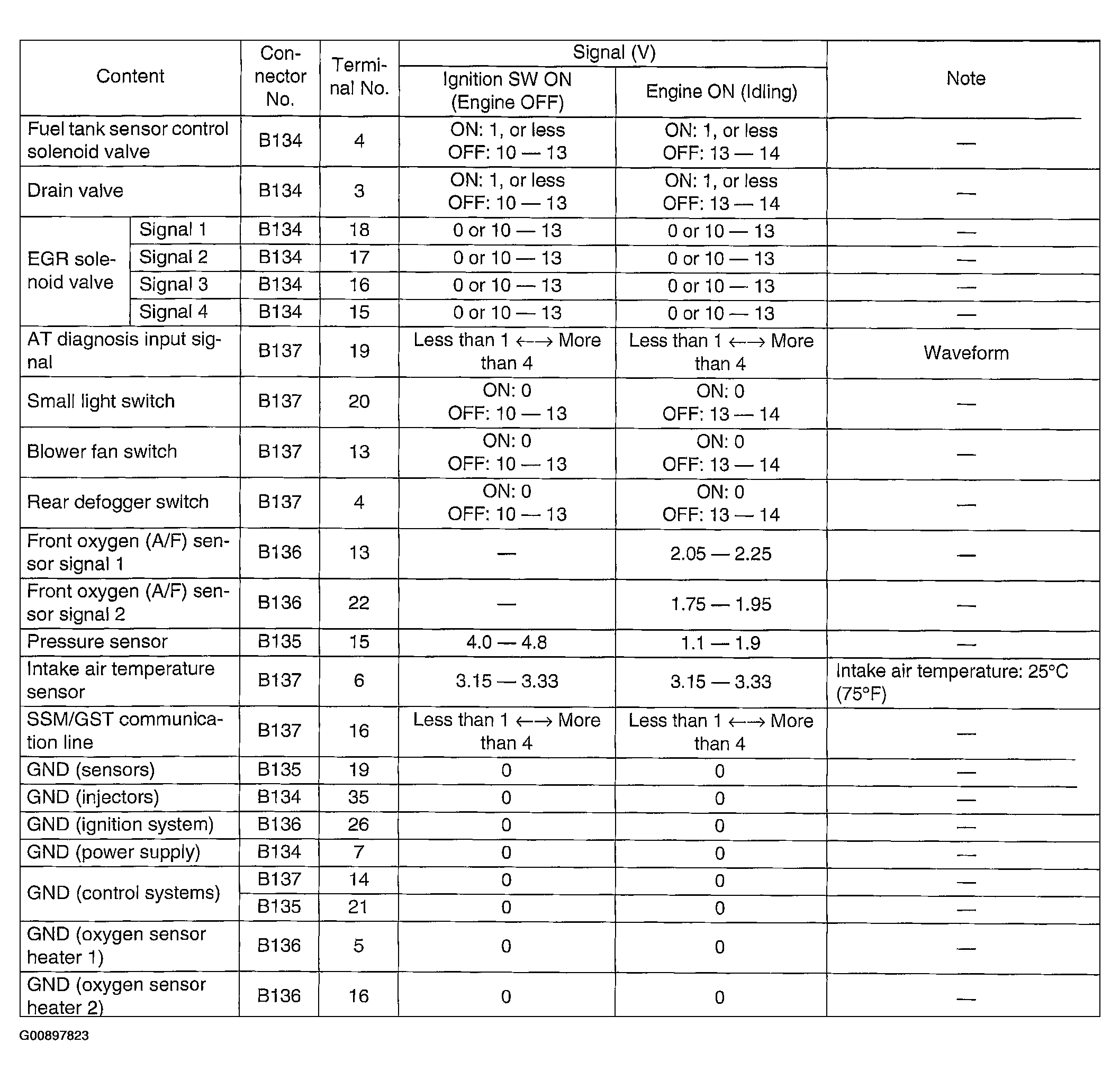

Fig 3: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

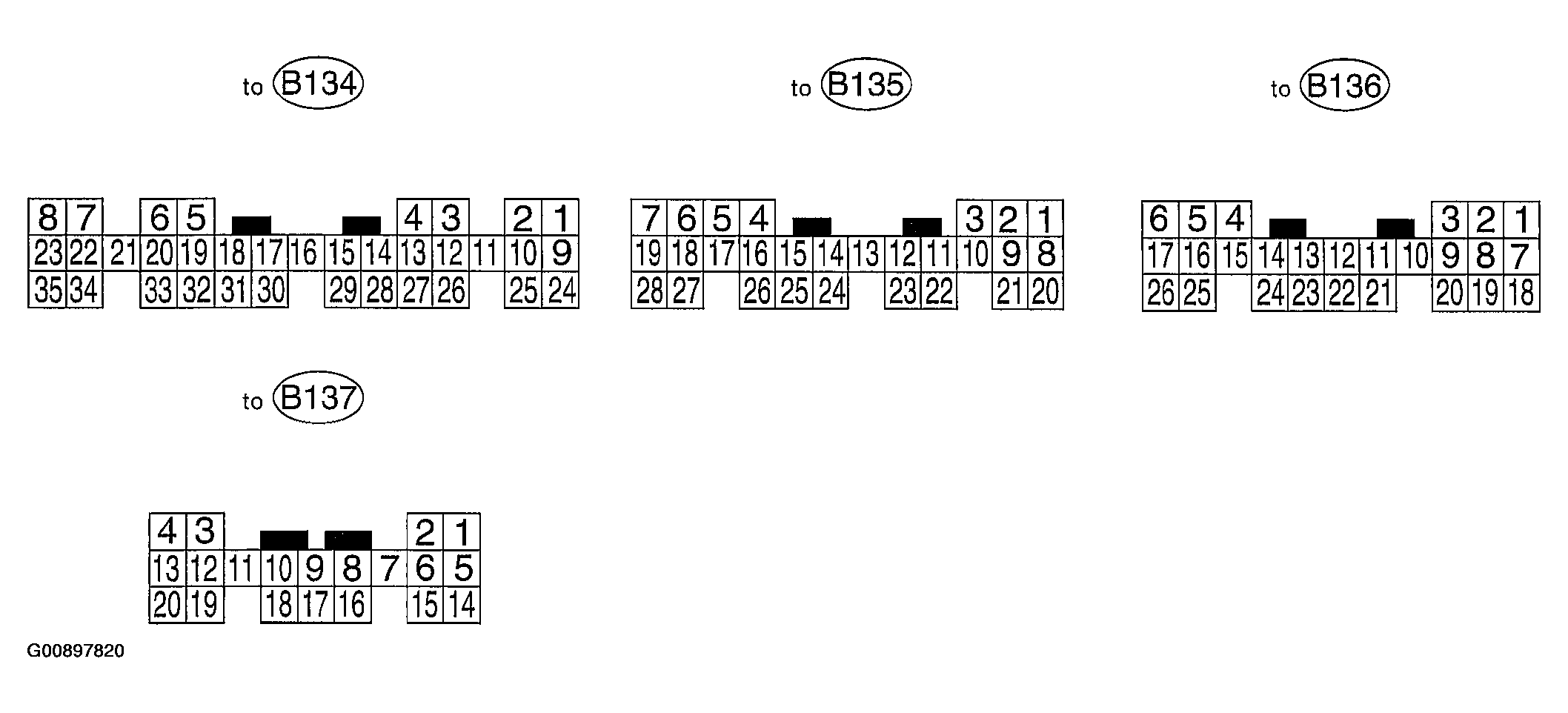

Fig 4: Identifying Engine Control Module (ECM) I/O Signal (Electrical Specification) (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
