Electrical Specification

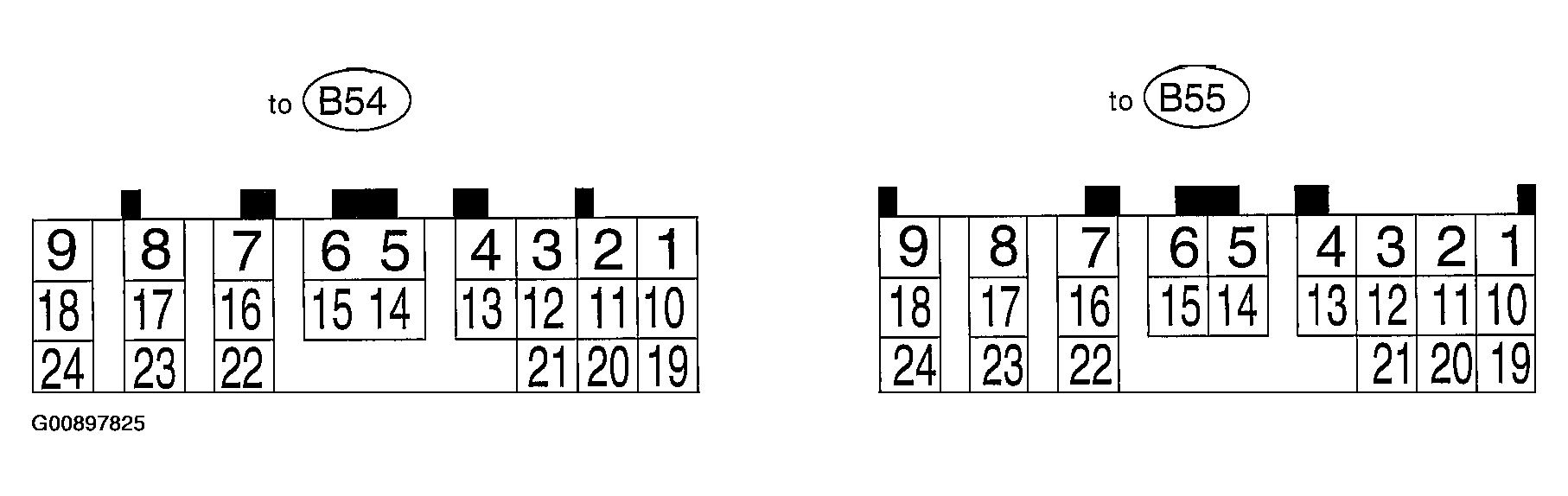

Fig 1: Identifying Transmission Control Module (TCM) I/O Signal Electrical Specification

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Check with ignition switch ON.

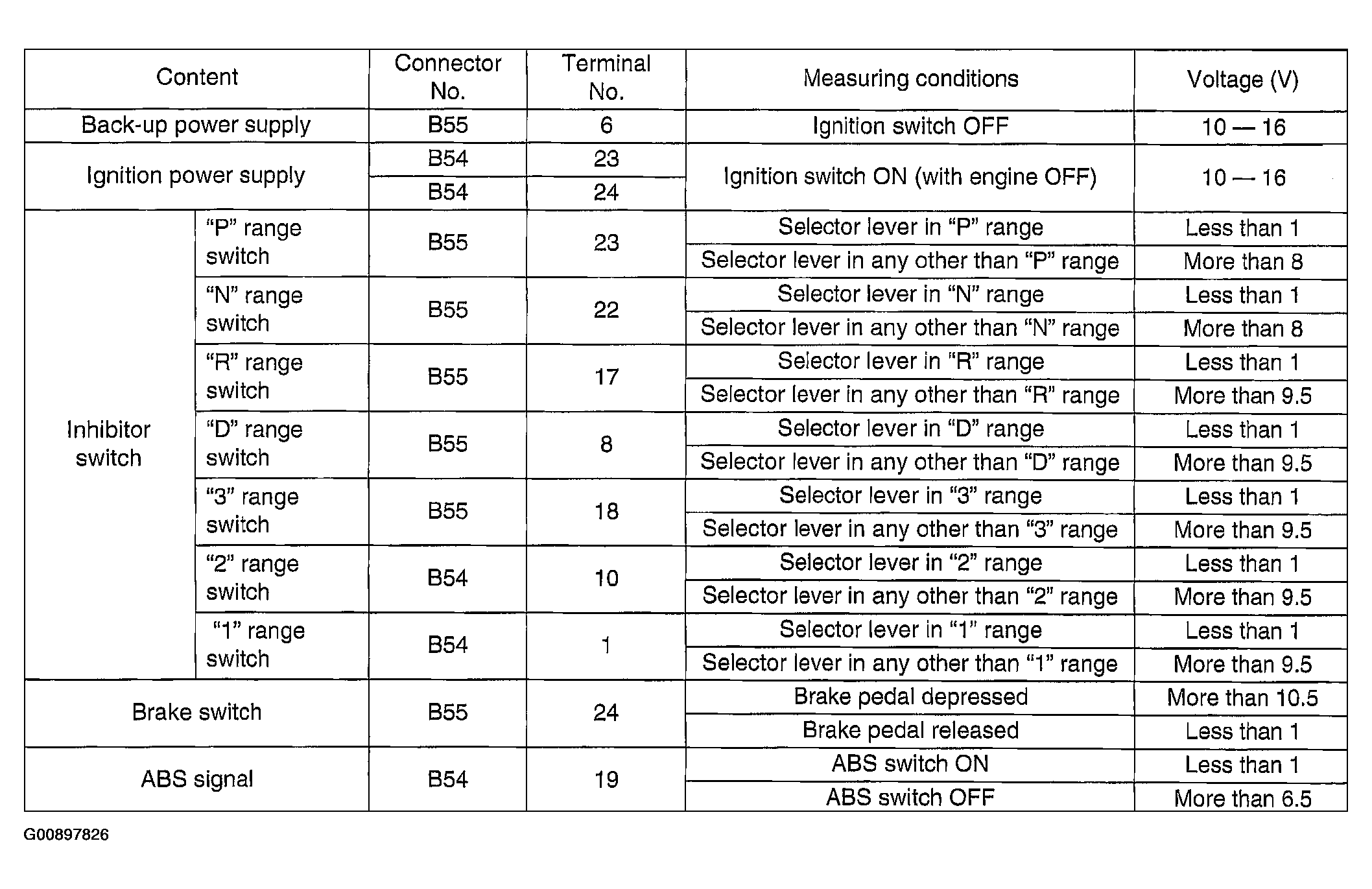

Fig 2: Checking With Ignition Switch On Measuring Table (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

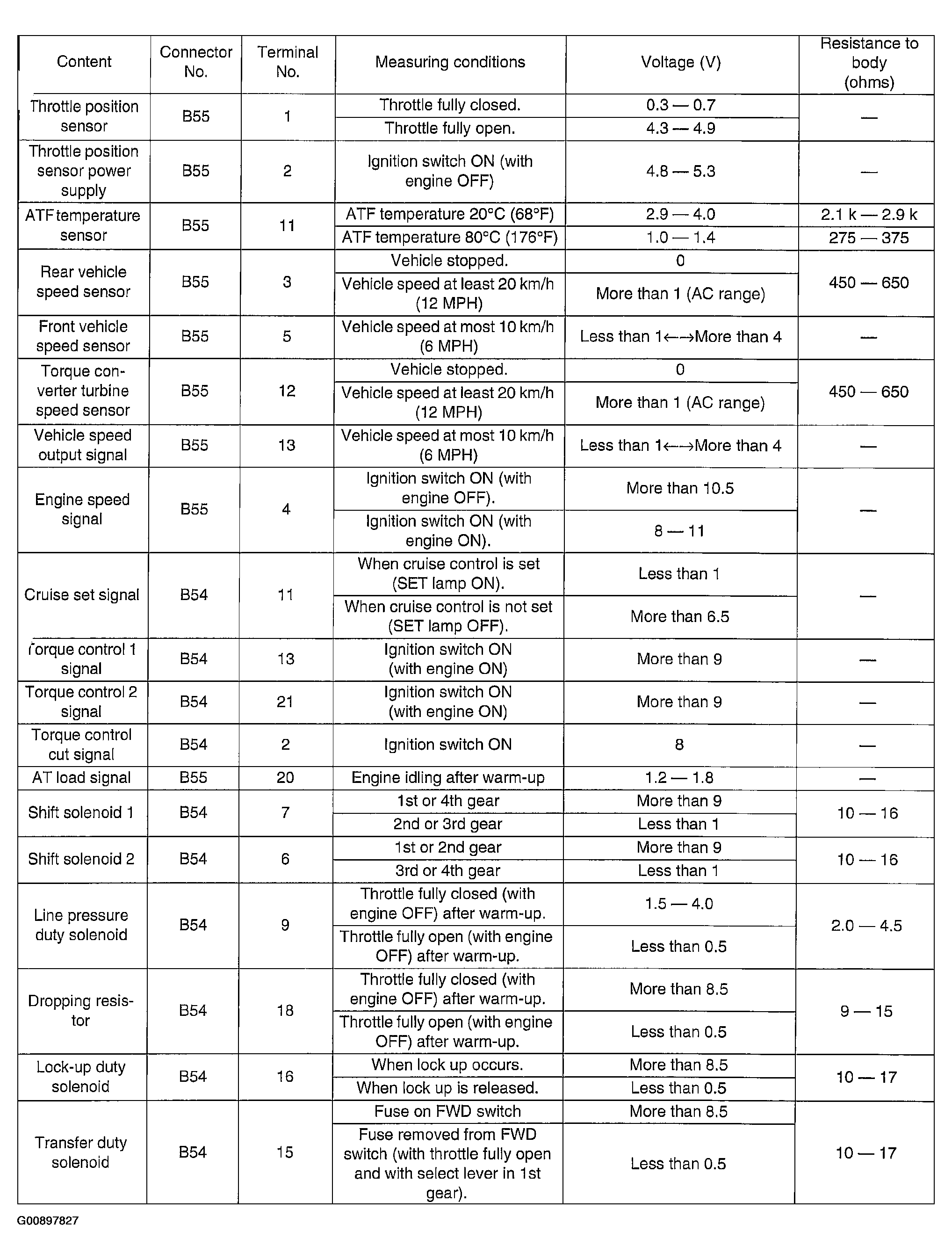

Fig 3: Checking With Ignition Switch On Reference Table (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

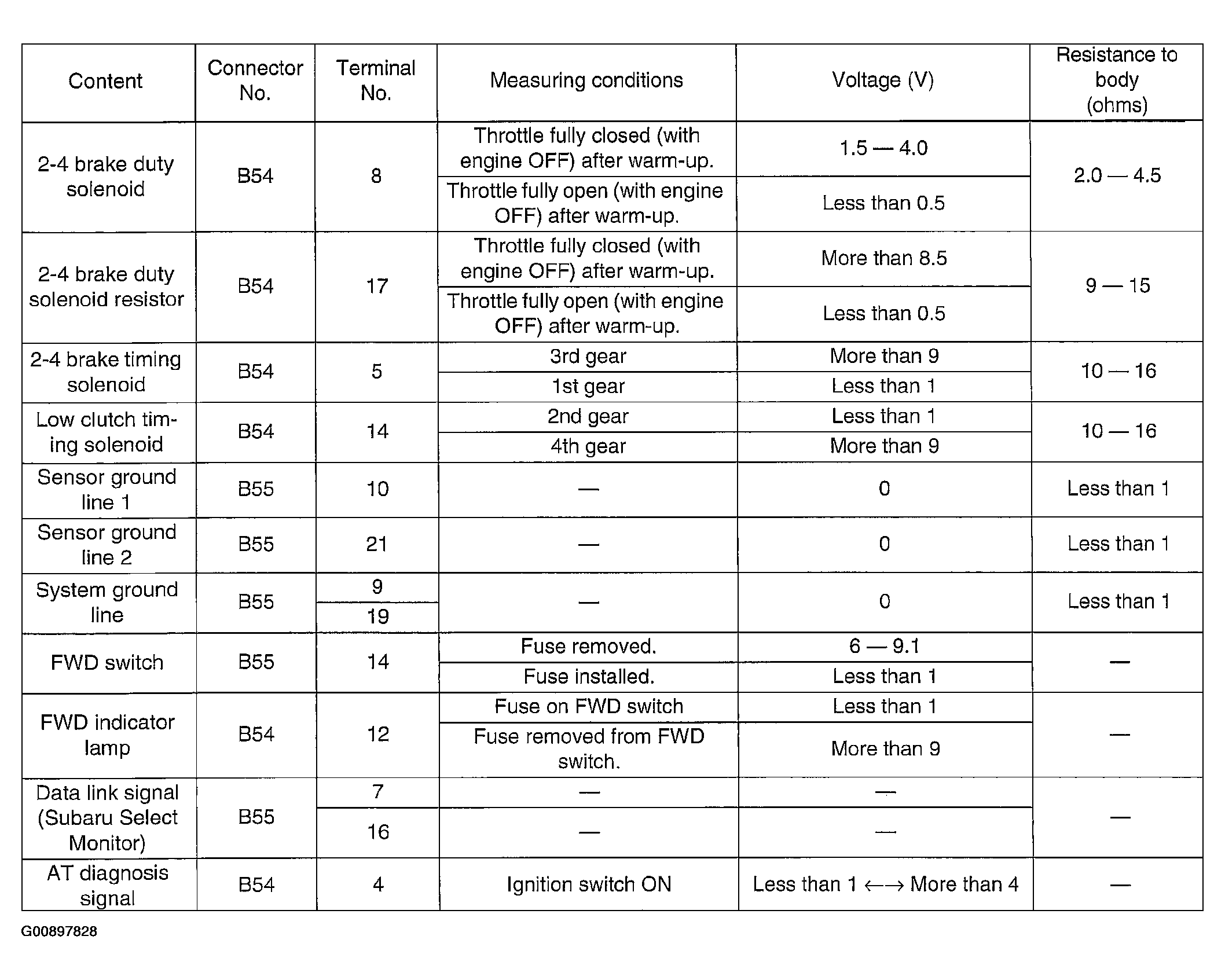

Fig 4: Checking With Ignition Switch On Reference Table (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
