Thrust Angle: Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Subaru Outback, 2003 Subaru Legacy, 2003 Subaru Baja, 2002 Subaru Outback, and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position vehicle on a level surface.
  2. Move vehicle 3 to 4 meters directly forward.
  3. Determine locus of both front and rear axles.
  4. Measure distance "L" between center line of loci of the axles.
    1. Thrust angle:  Less than 30' when "L" is equal to or less than 23 mm (0.91 in)

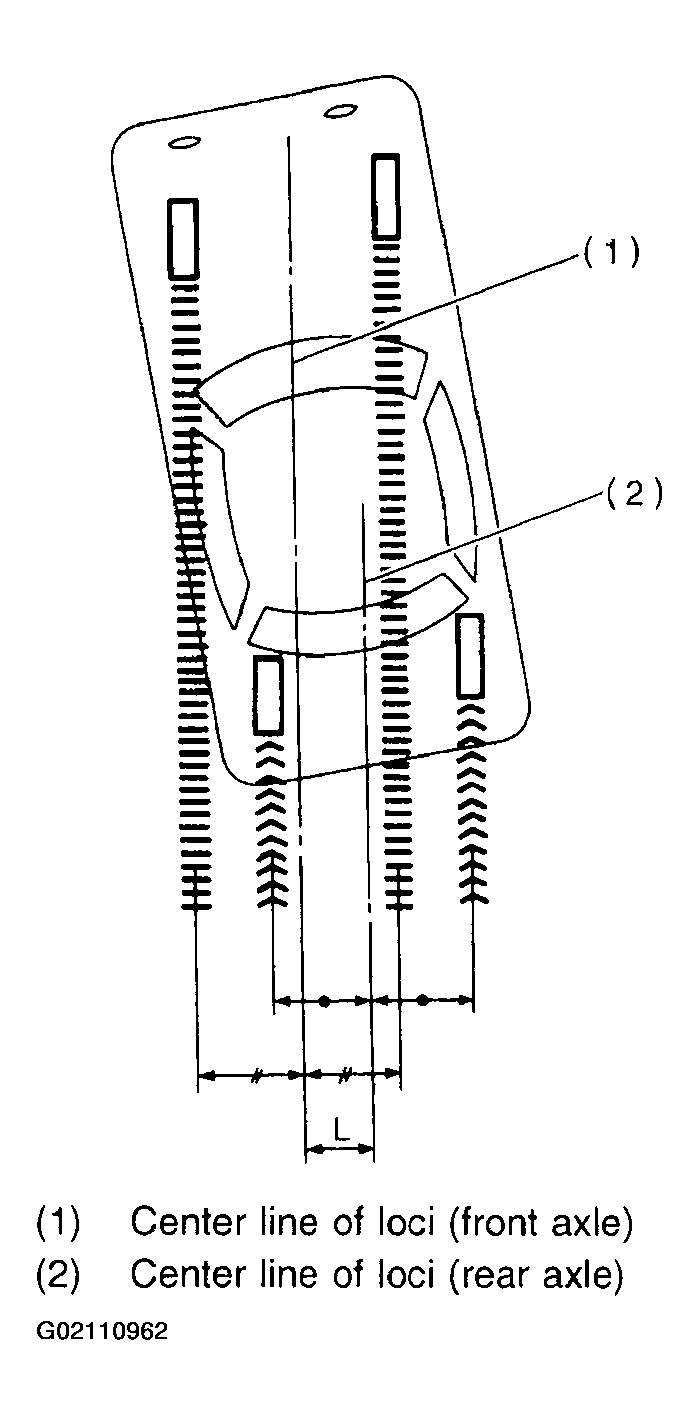

    Fig 1: Center Line For Front & Rear Axles
    G02110962Courtesy of SUBARU OF AMERICA, INC.
