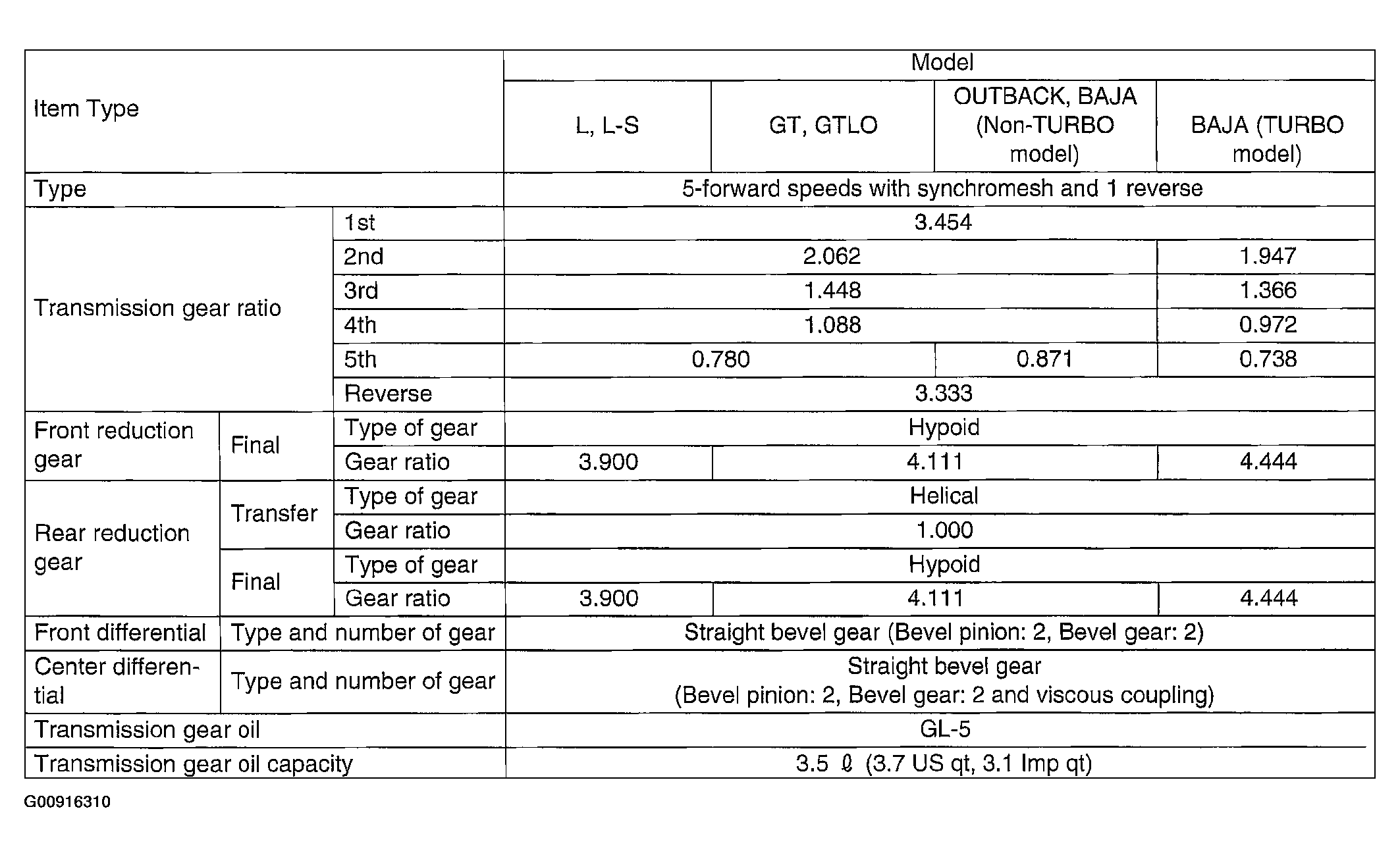

Manual Transmission And Differential: General Description: Specifications

Recommended oil

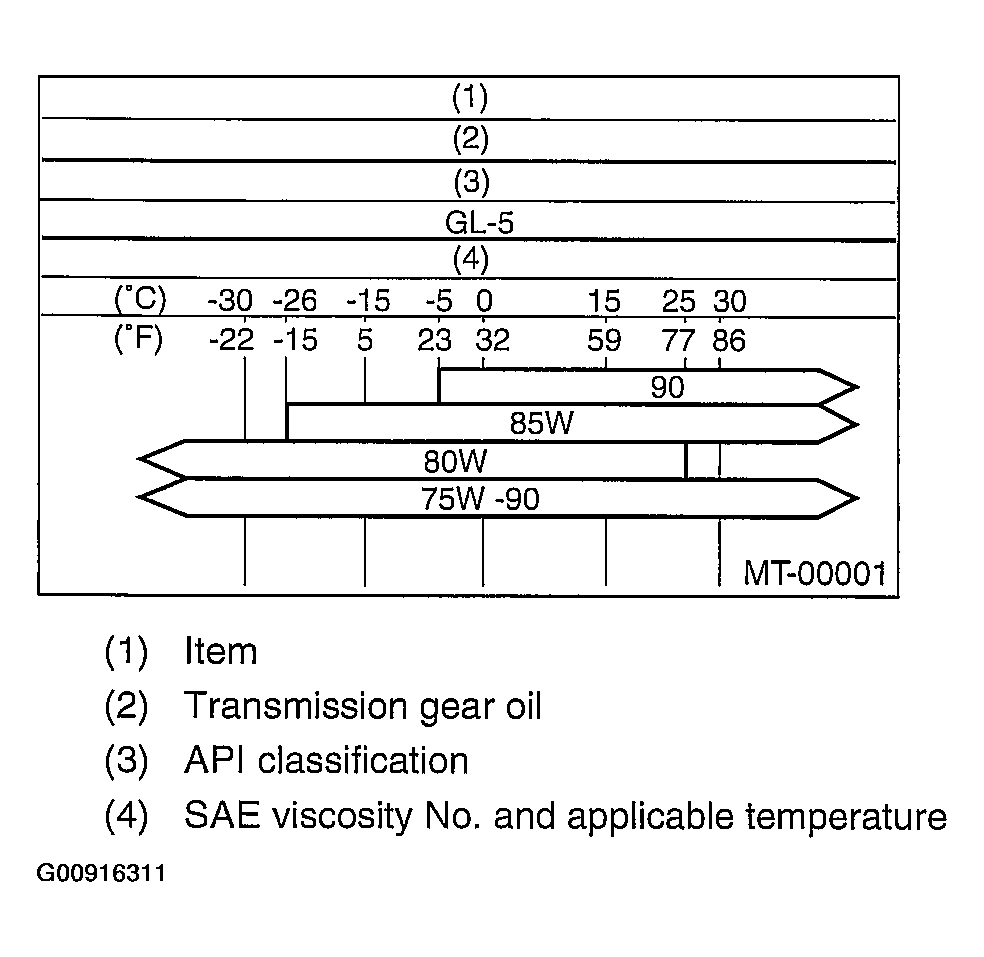

Fig 2: Transmission Gear Oil Specification

Courtesy of SUBARU OF AMERICA, INC.

Drive pinion shim adjustment

Hypoid gear backlash 0.13 - 0.18 mm (0.0051 - 0.0071 in)

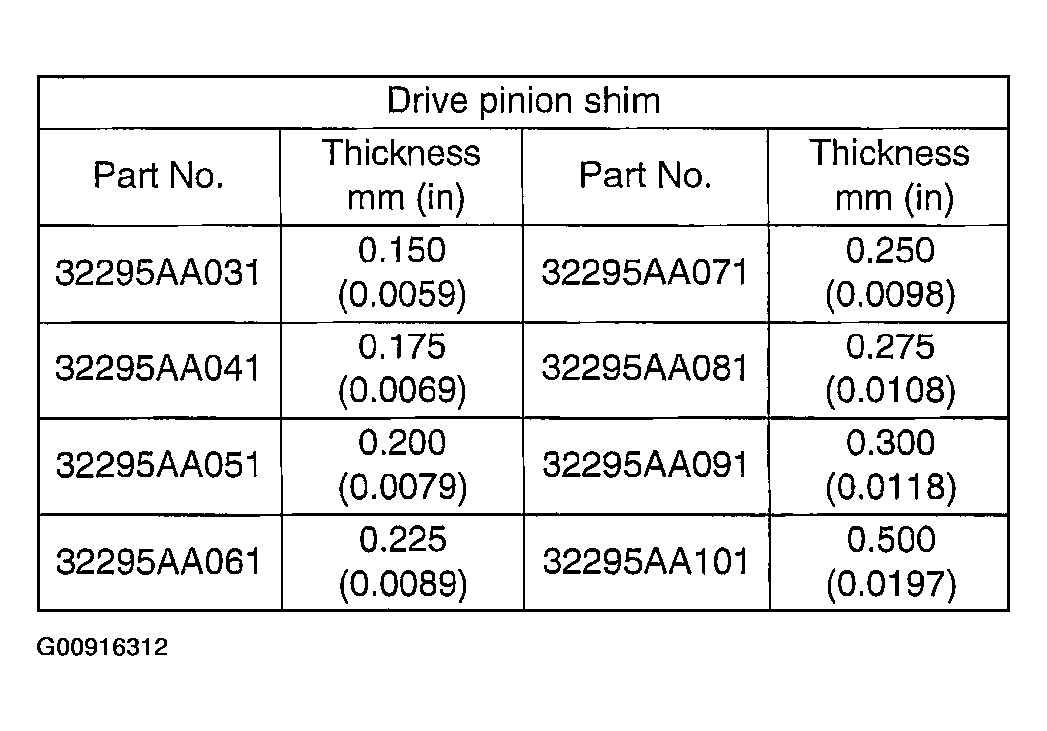

Fig 3: Drive Pinion Shim Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Main Shaft Rear Plate Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Preload adjustment of thrust bearing

Starting torque 0.3 - 0.8 N.m (0.03 - 0.08 kgf-m, 0.2 - 0.6 ft-lb)

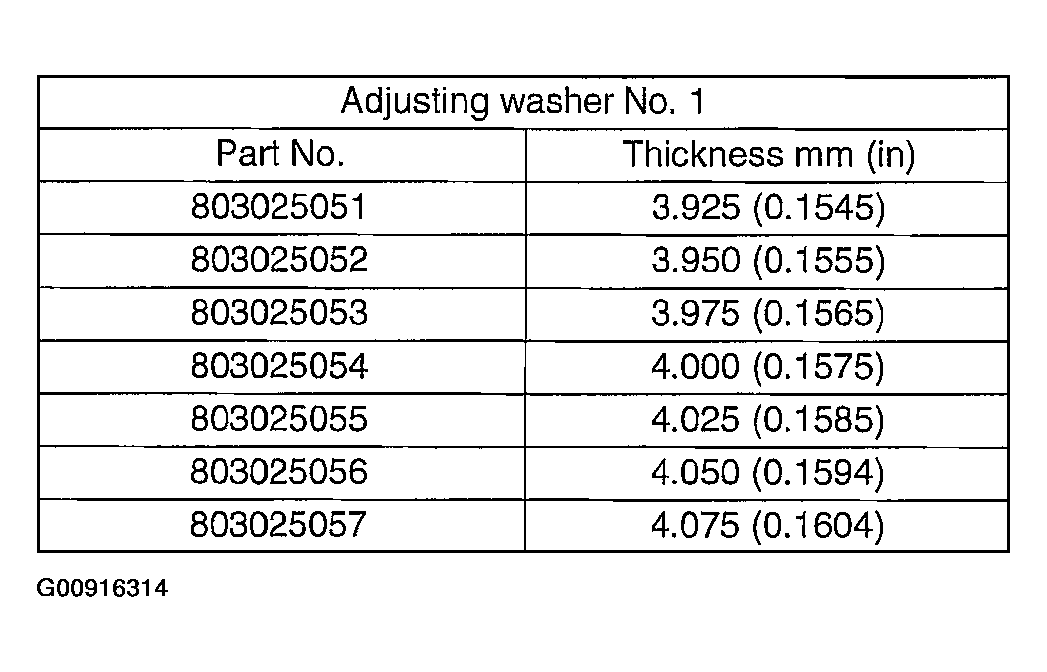

Fig 5: Adjusting Washer No. 1 Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Adjusting Washer No. 2 Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Snap ring (Outer-25) to synchronizer hub clearance 0.060 - 0.100 mm (0.0024 - 0.0039 in)

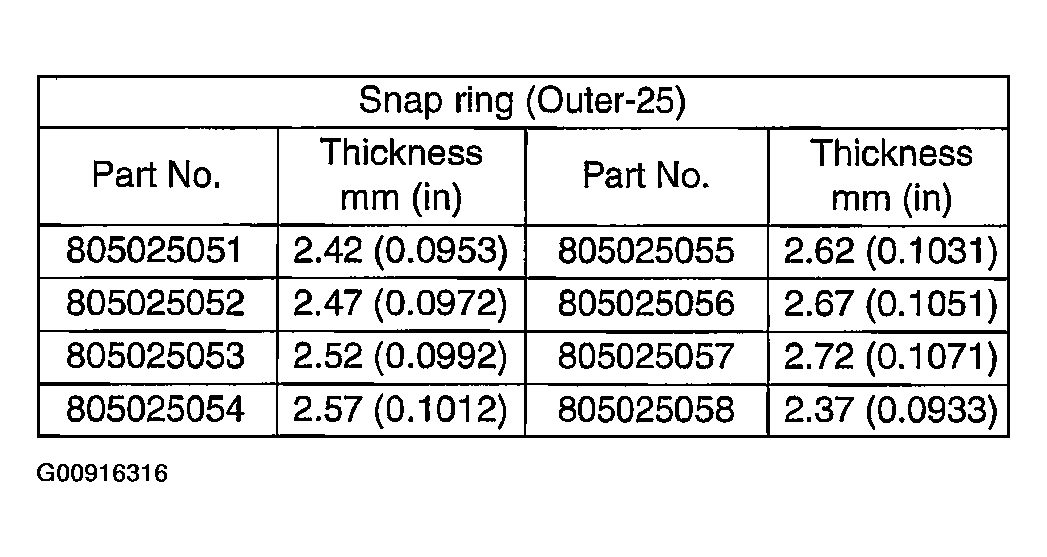

Fig 7: Snap Ring Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Adjustment of reverse idler gear position

Reverse idler gear to transmission case (LH) wall clearance 6.0 - 7.5 mm (0.236 - 0.295 in)

Fig 8: Reverse Shifter Idler Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

After installing a suitable reverse shifter lever, adjust the reverse idler gear to transmission case wall clearance to within 0 to 0.5 mm (0 to 0.020 in) using washers.

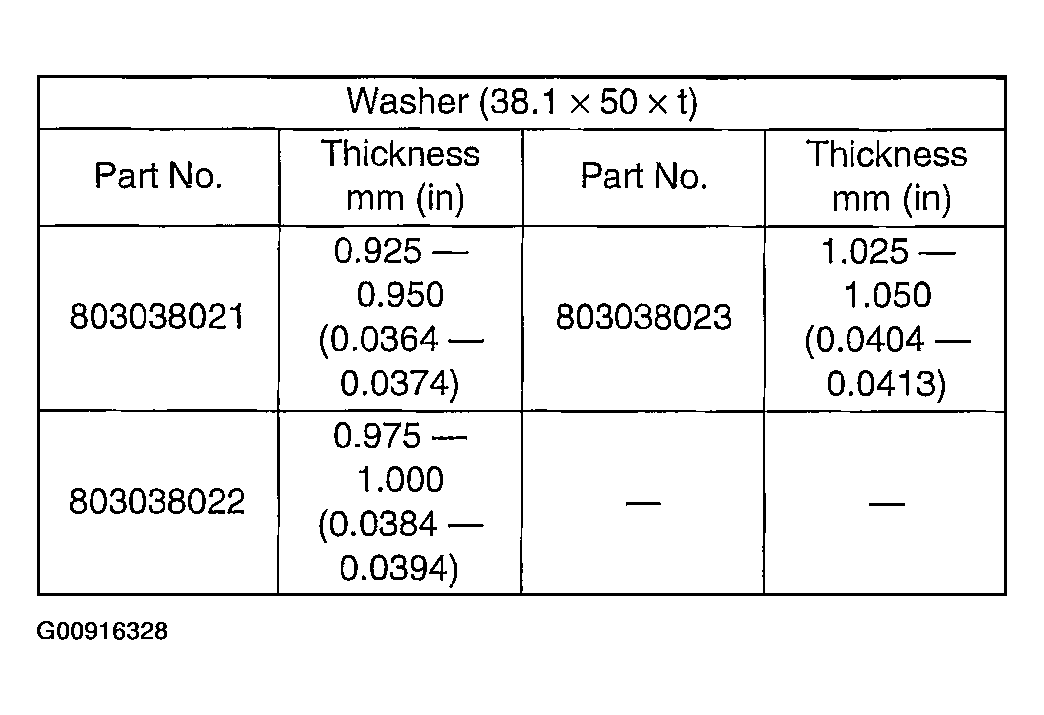

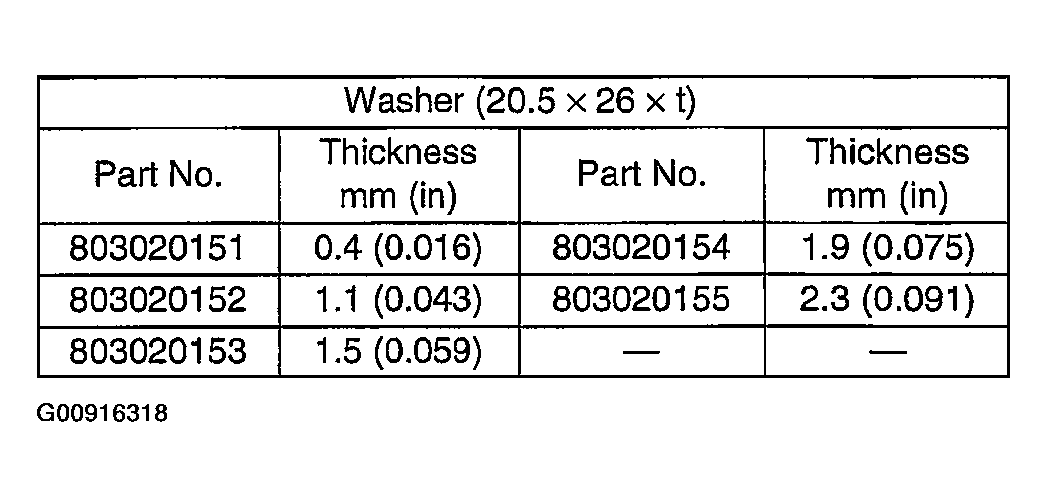

Fig 9: Washer Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Select the suitable shifter forks so that both coupling sleeve and reverse driven gear are positioned in the center of their synchromesh mechanisms. Rod end clearance

1. A: 1st-2nd - 3rd-4th 0.4 - 1.4 mm (0.016 - 0.055 in)
2. B: 3rd-4th - 5th 0.5 - 1.3 mm (0.020 - 0.051 in)

Fig 10: 1st-2nd Shifter Fork Remarks Chart

Courtesy of SUBARU OF AMERICA, INC.

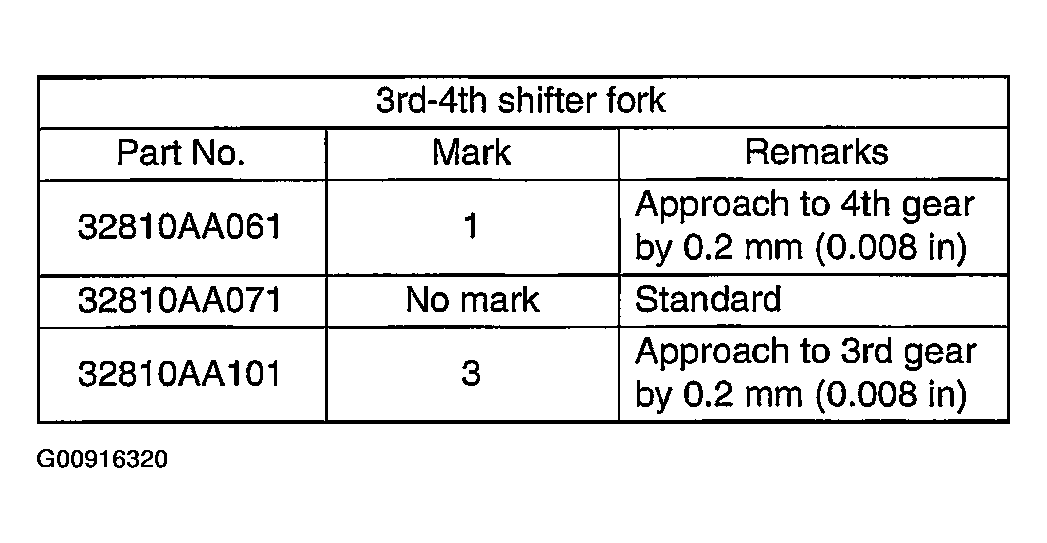

Fig 11: 3rd-4th Shifter Fork Remarks Chart

Courtesy of SUBARU OF AMERICA, INC.

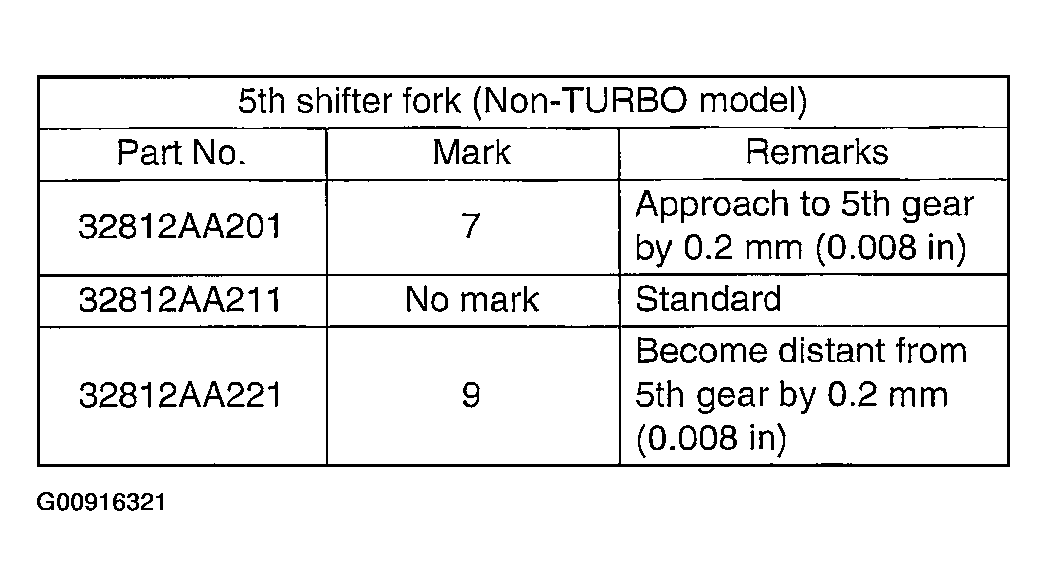

Fig 12: 5th Shifter Fork Remarks Chart (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

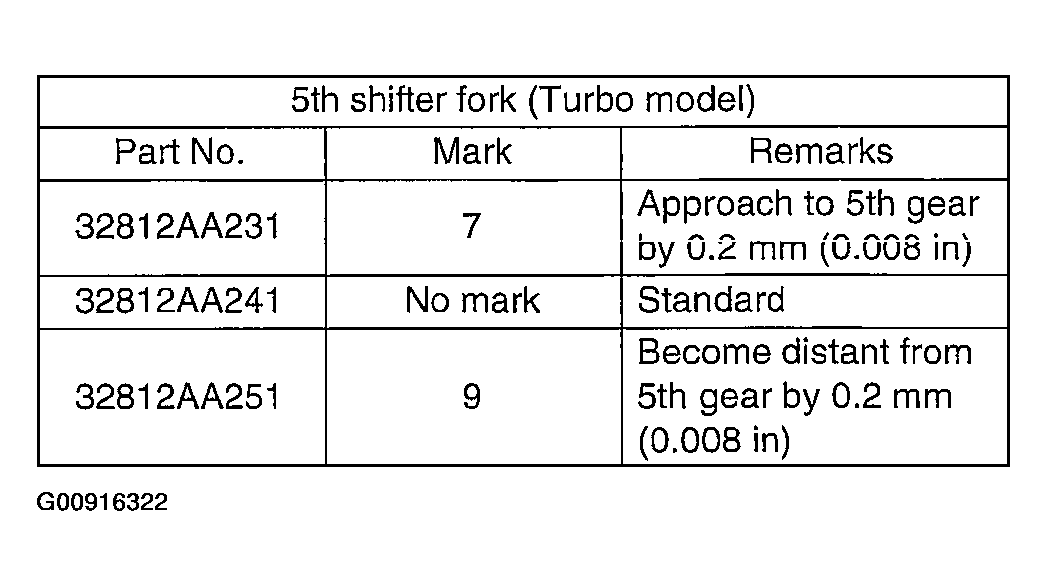

Fig 13: 5th Shifter Fork Remarks Chart (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Neutral position adjustment

Fig 14: Adjustment Shim Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Reverse Accent Shaft Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Reverse check plate adjustment

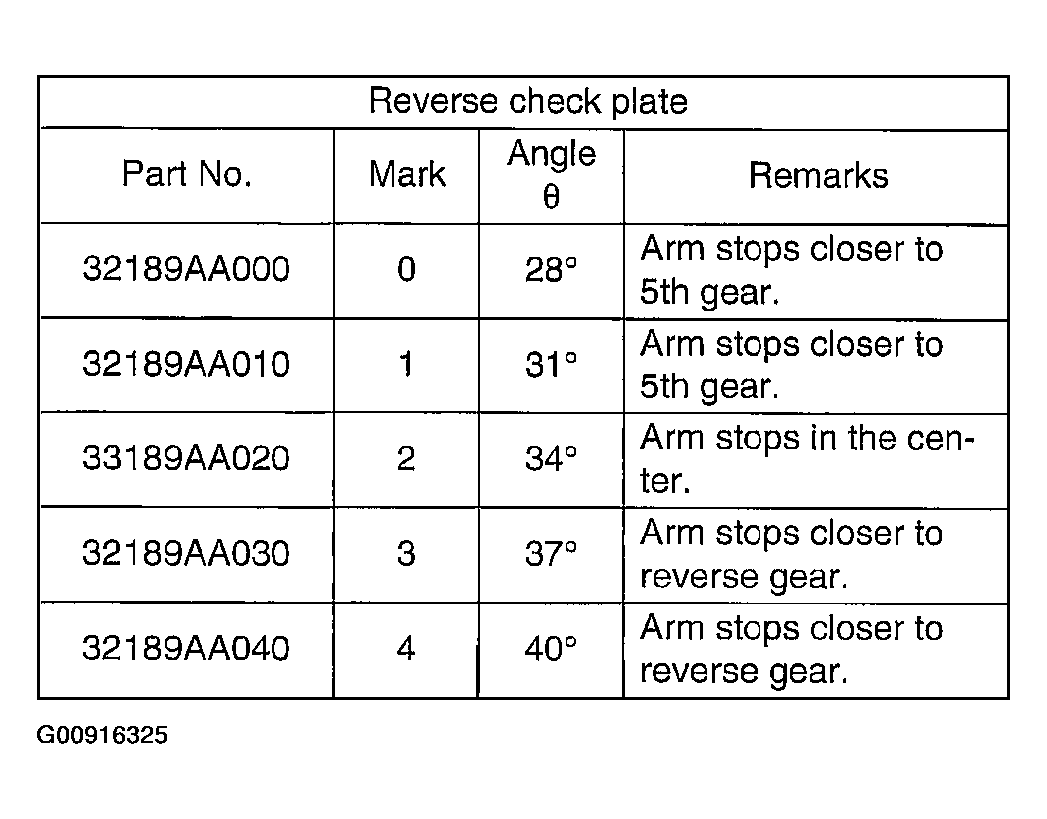

Fig 16: Reverse Check Plate Adjustment Chart

Courtesy of SUBARU OF AMERICA, INC.

Thrust washer (50 x 61 x t) to taper roller bearing table outer race side clearance

1. 0.2 - 0.3 mm (0.0008 - 0.012 in)

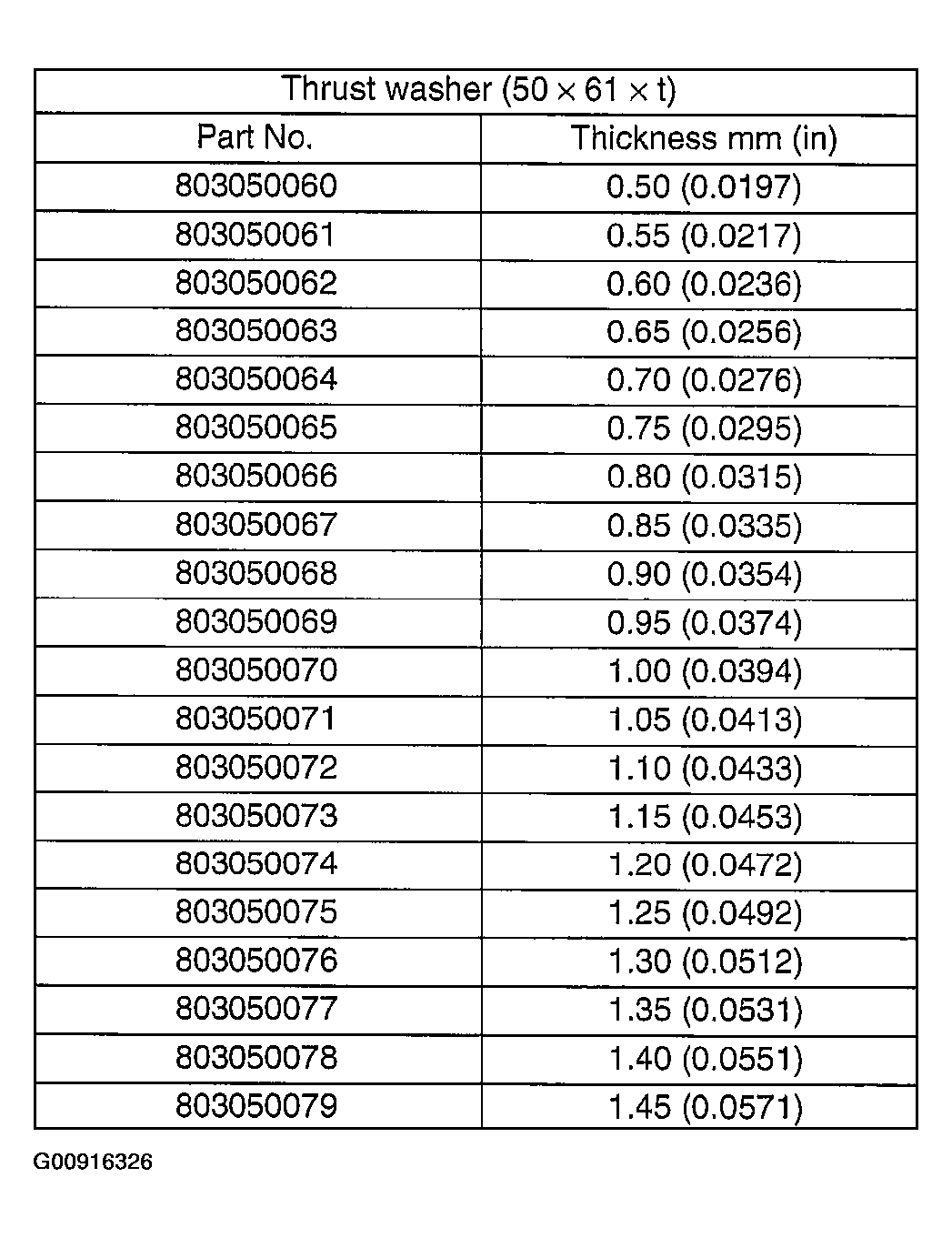

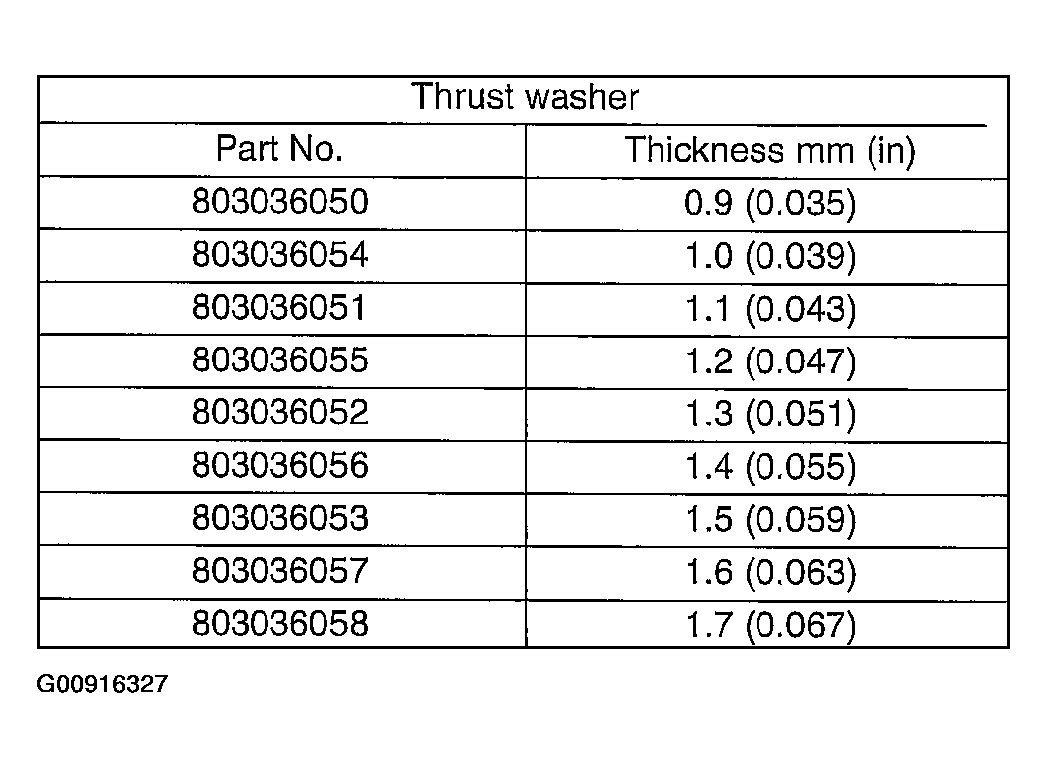

Fig 17: Thrust Washer Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Thrust washer to center differential side clearance

1. 0.15 - 0.35 mm (0.0059 - 0.0138 in)

Fig 18: Thrust Washer To Center Differential Side Clearance Chart

Courtesy of SUBARU OF AMERICA, INC.

Bevel gear to pinion backlash

1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

Fig 19: Washer Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Pinion shaft to axle drive shaft clearance

1. 0 - 0.2 mm (0 - 0.008 in)

Fig 20: Snap Ring Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Snap ring (Outer-30) to ball bearing clearance

1. 0.01 - 0.15 mm (0.0004 - 0.0059 in)

Fig 21: Snap Ring Specification Chart

Courtesy of SUBARU OF AMERICA, INC.
