Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

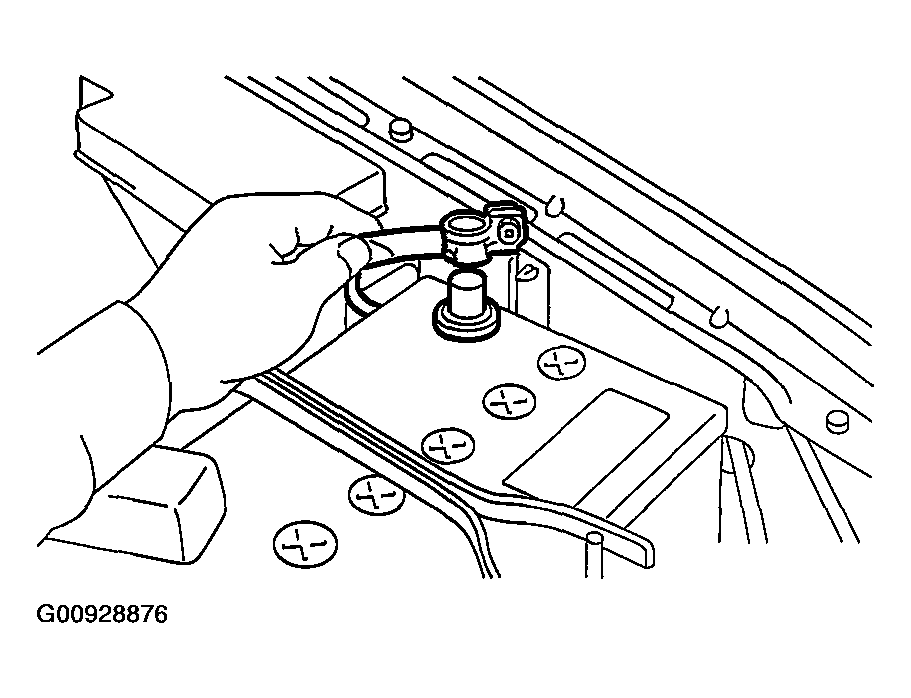

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of the passenger side.
Refer to REMOVAL , Lower Inner Trim.
Detach the floor mat of the front passenger seat.
Remove the protect cover.

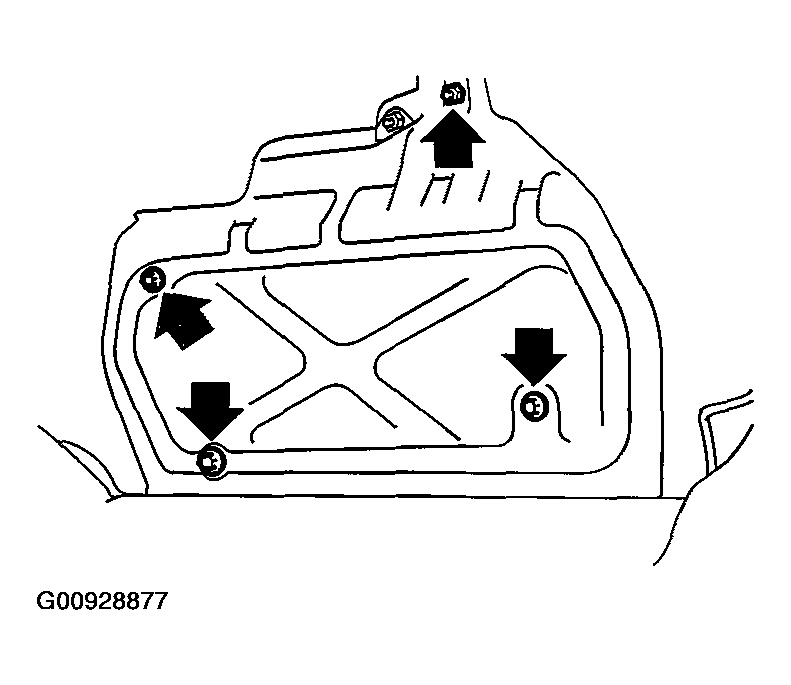

Fig 2: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts (A) which hold ECM to the bracket.
Remove the clip (B) from the bracket.

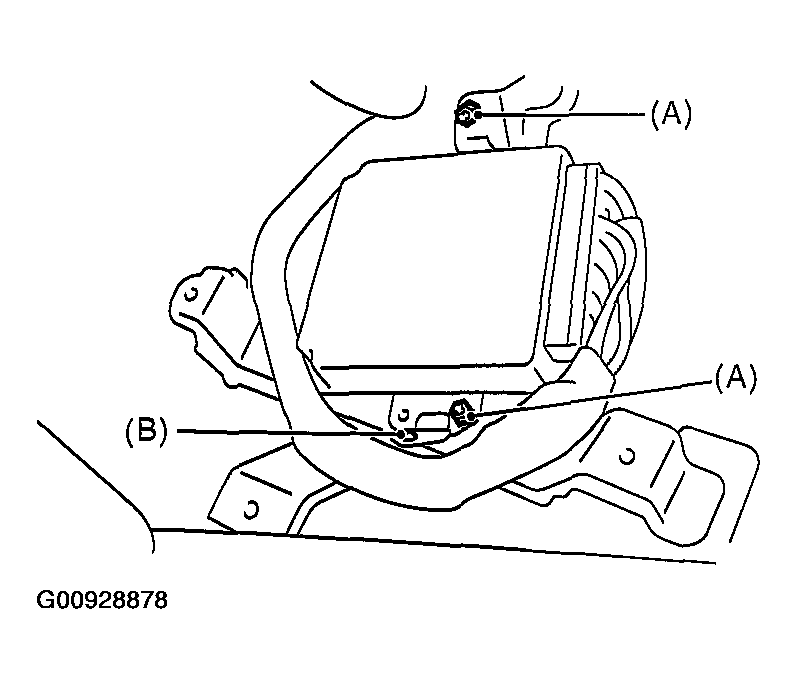

Fig 3: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors and take out the ECM.
