Control Module Power Supply And Ground Line

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode. Refer to CLEAR MEMORY MODE and Inspection Mode. Refer to INSPECTION MODE .

WIRING DIAGRAM:

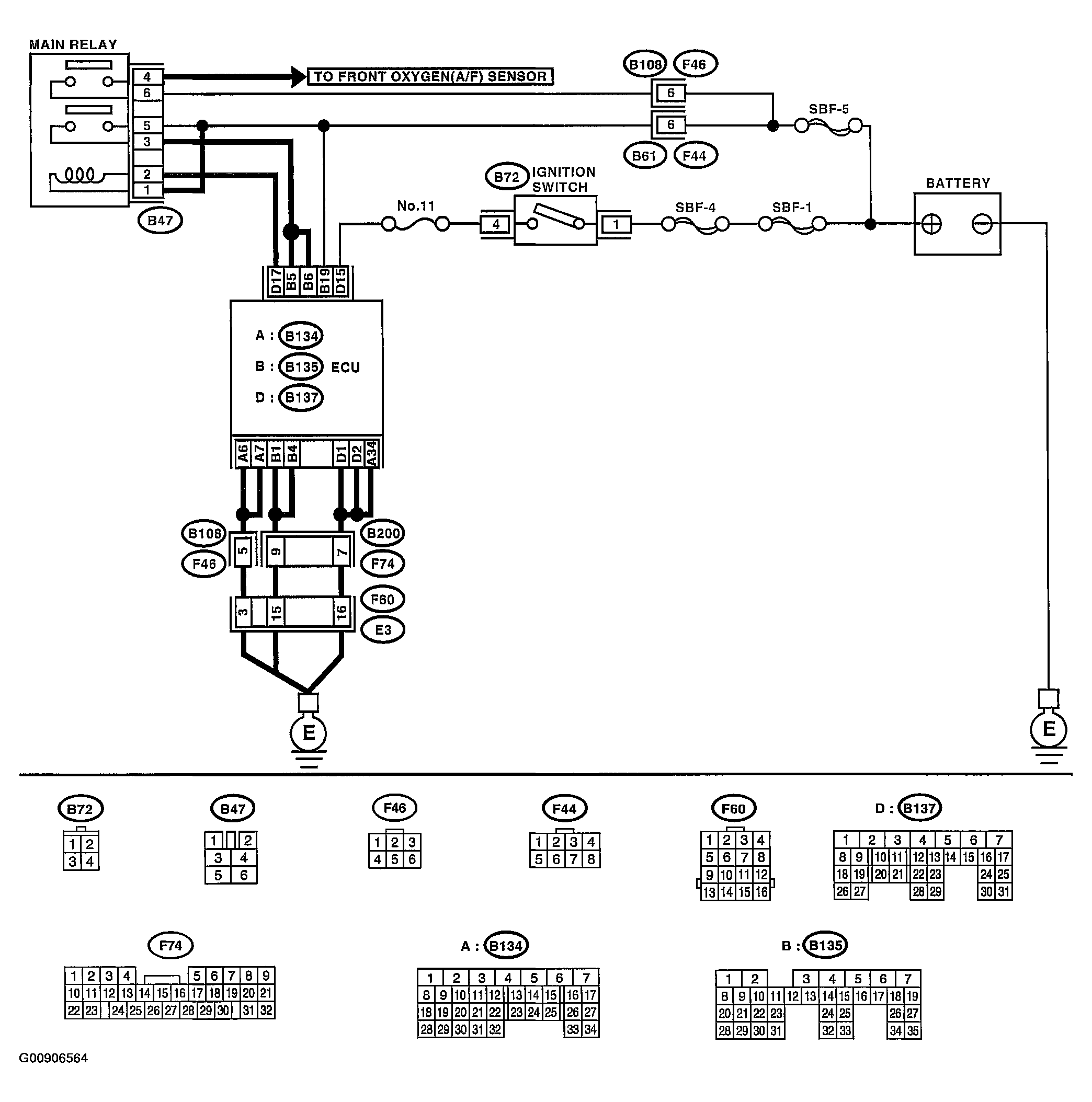

Fig 1: Control Module Power Supply & Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

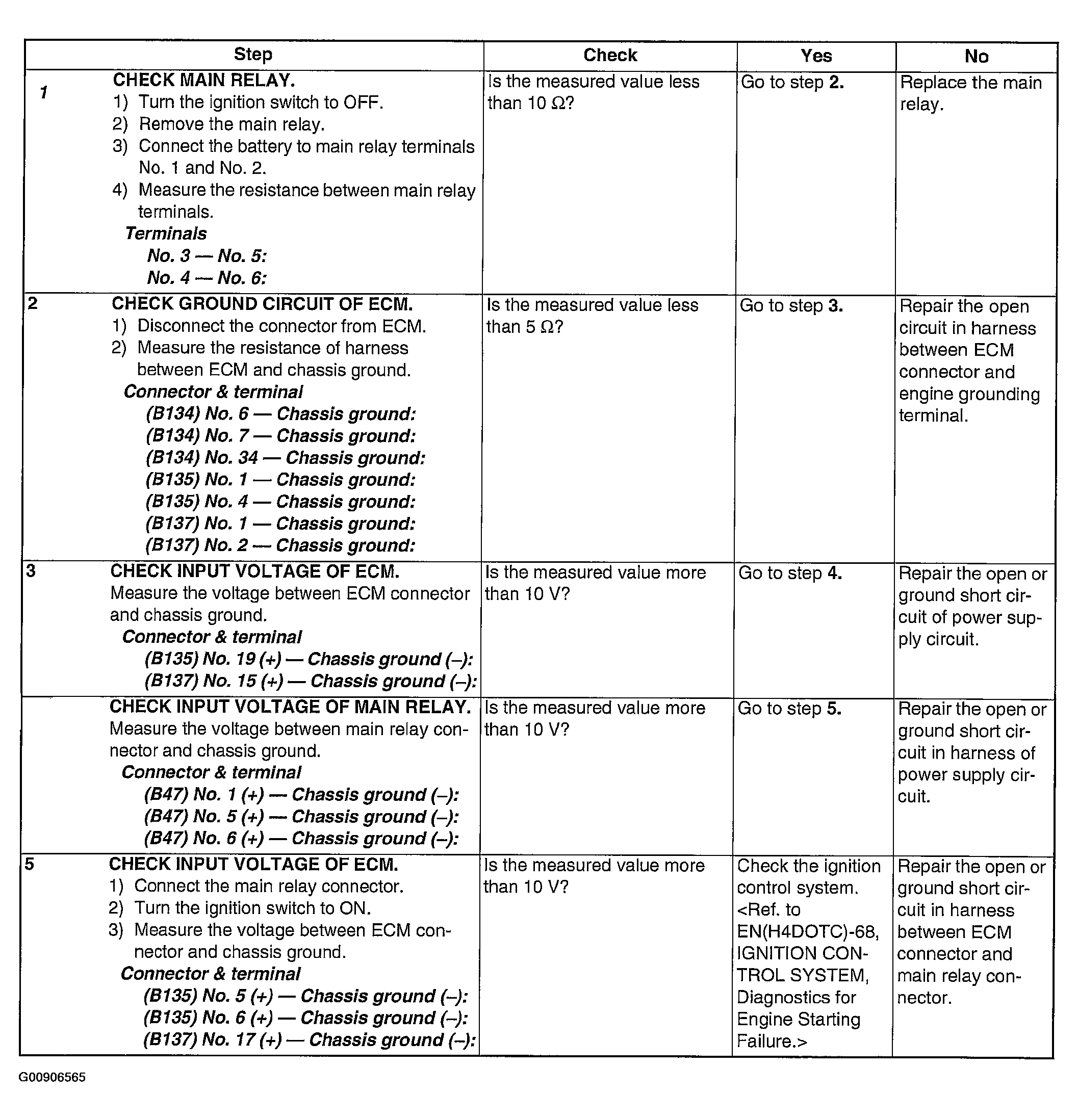

Fig 2: Control Module Power Supply & Ground Line Chart
Courtesy of SUBARU OF AMERICA, INC.
