Ignition Control System

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode. Refer to CLEAR MEMORY MODE and Inspection Mode. Refer to INSPECTION MODE .

WIRING DIAGRAM:

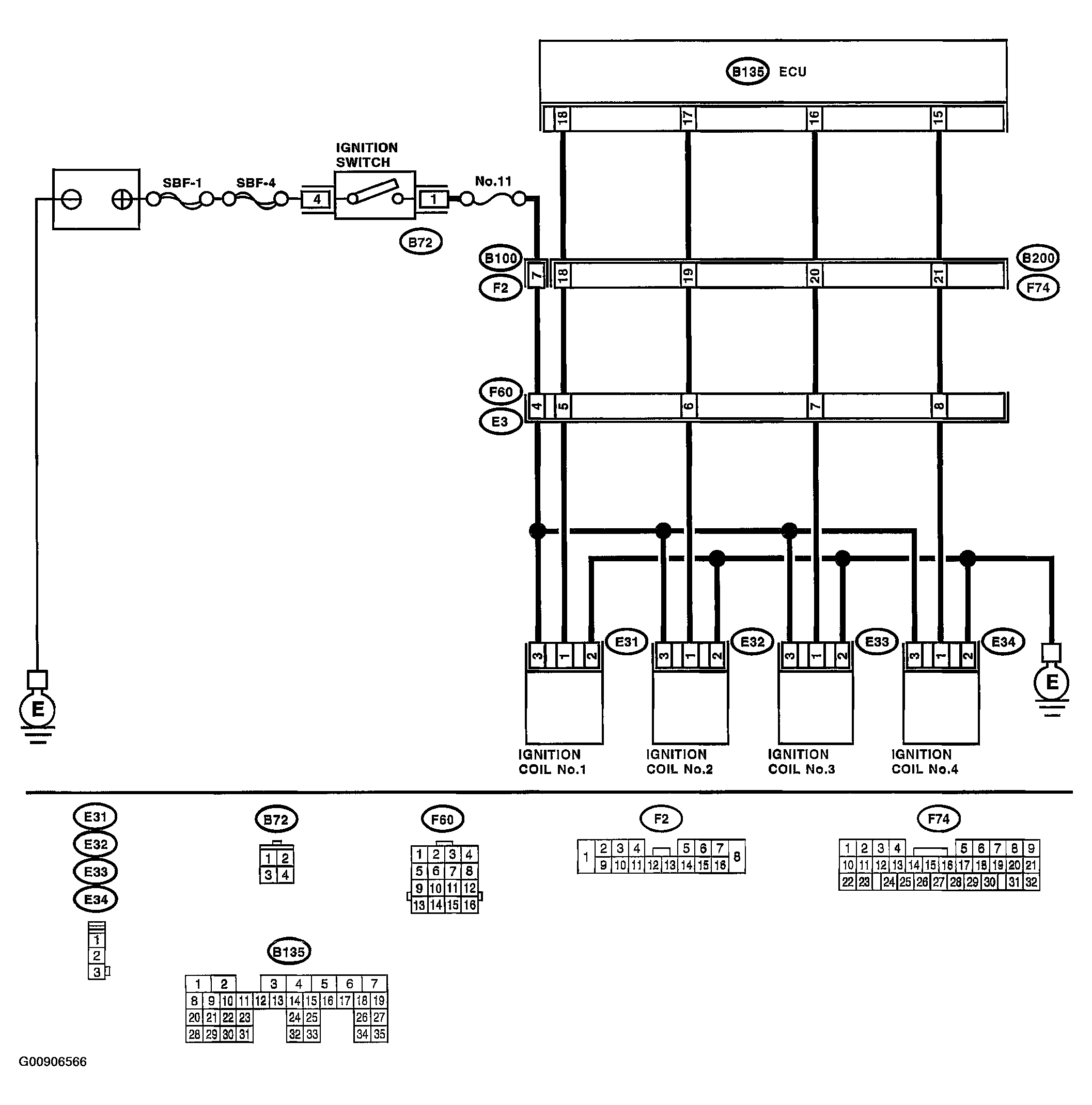

Fig 1: Ignition Control System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

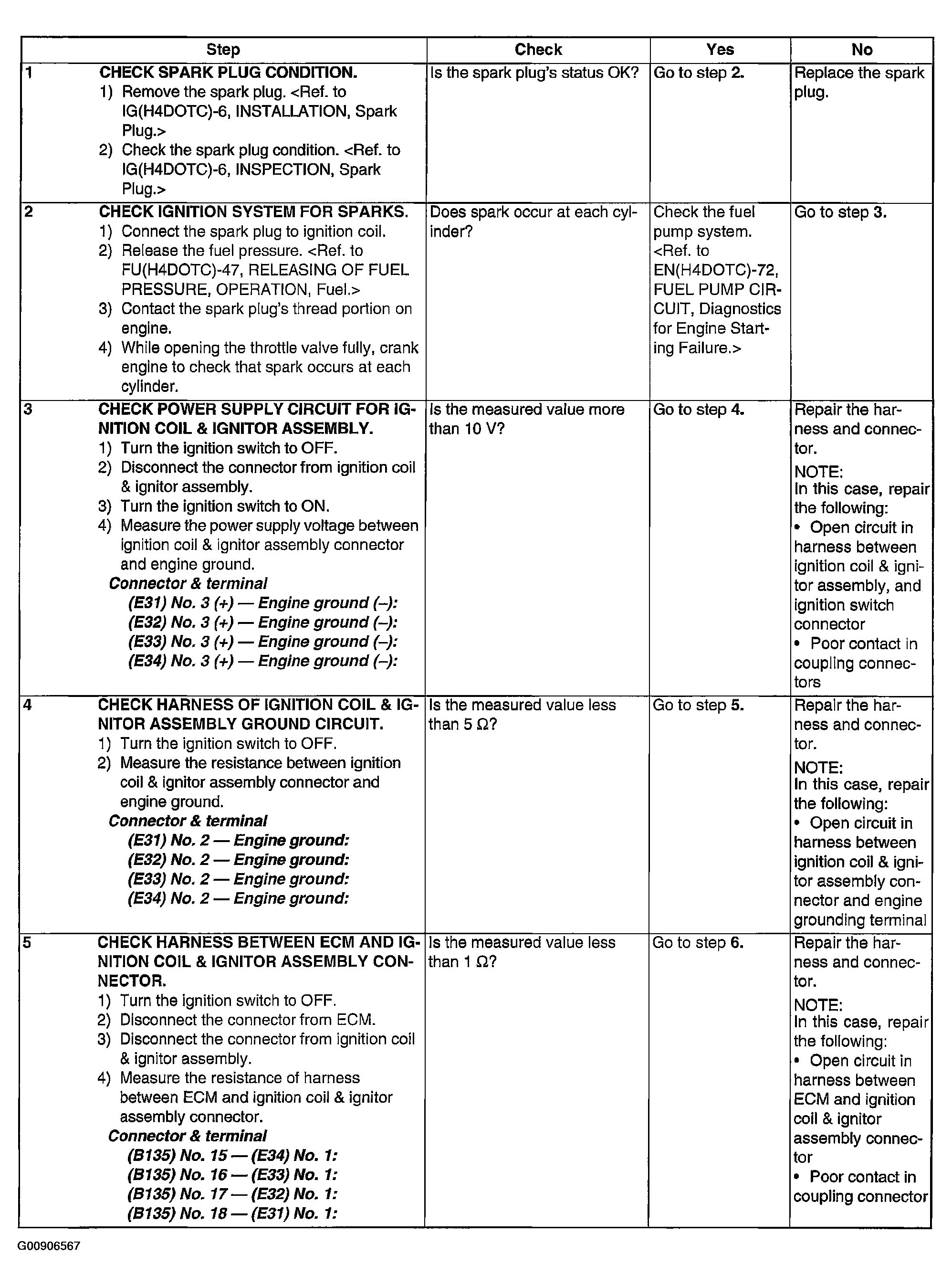

Fig 2: Ignition Control System Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

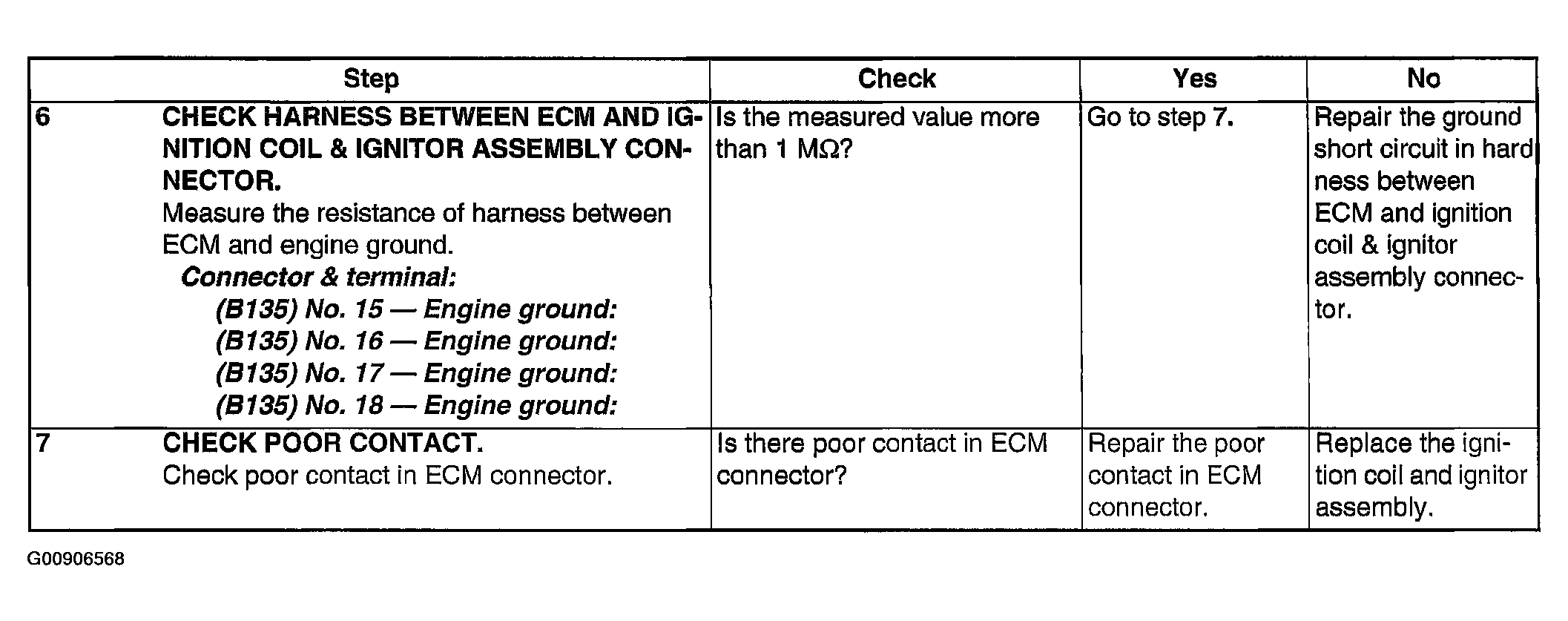

Fig 3: Ignition Control System Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
