Electrical Specification

Fig 1: Identifying Engine Control Module (ECM) I/O Signal Connector

Courtesy of SUBARU OF AMERICA, INC.

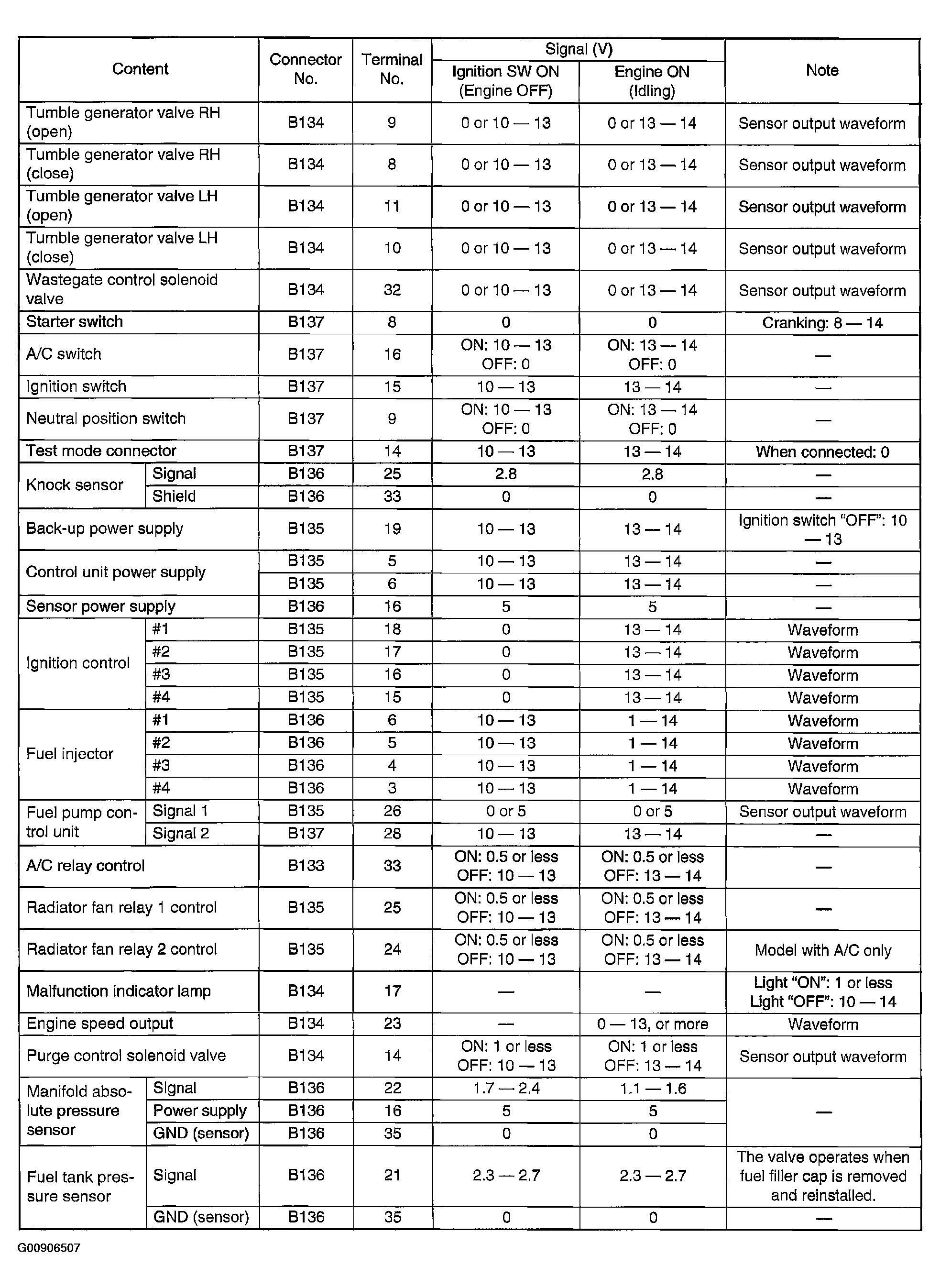

Fig 2: Terminal Chart (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

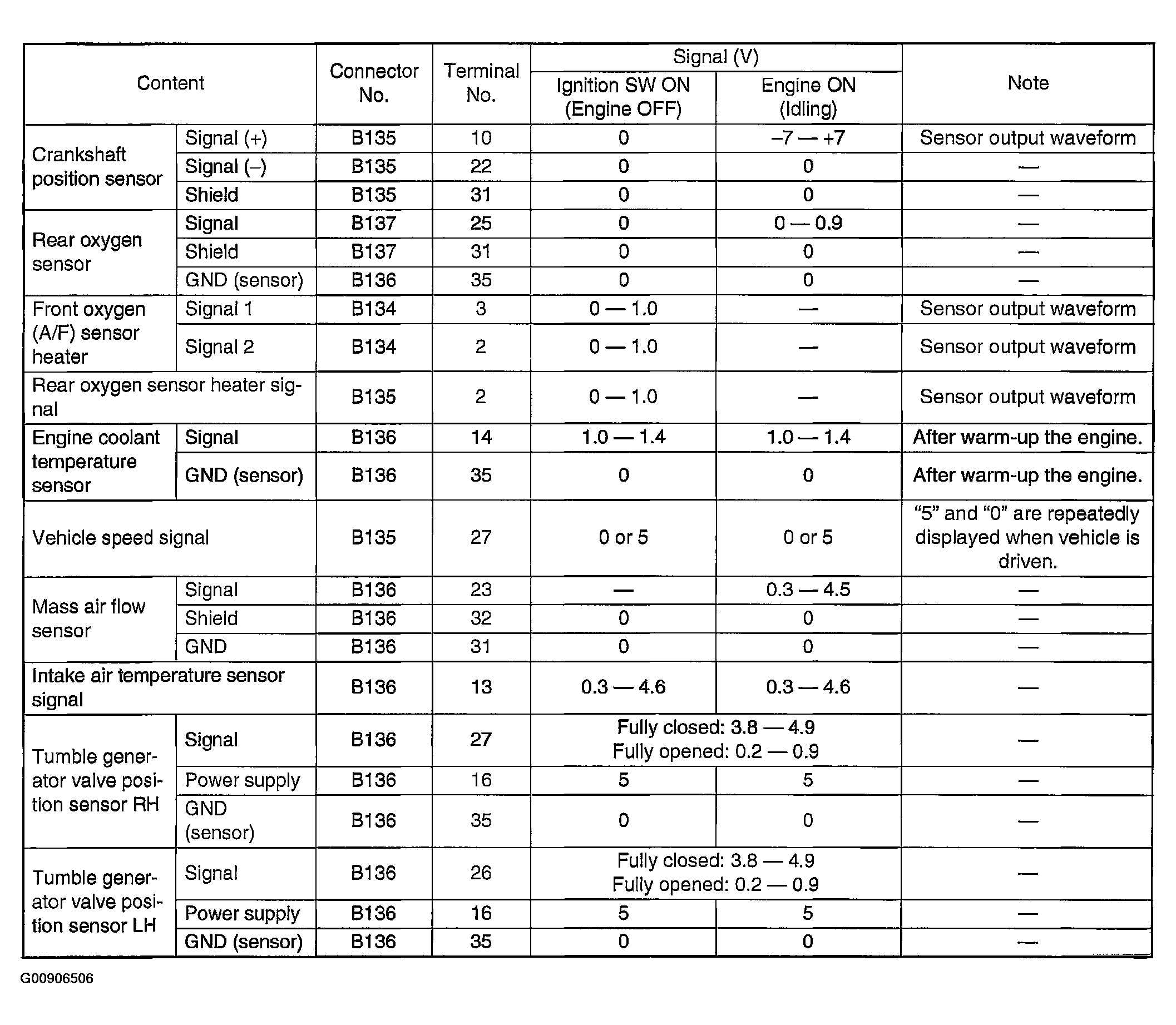

Fig 3: Terminal Chart (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

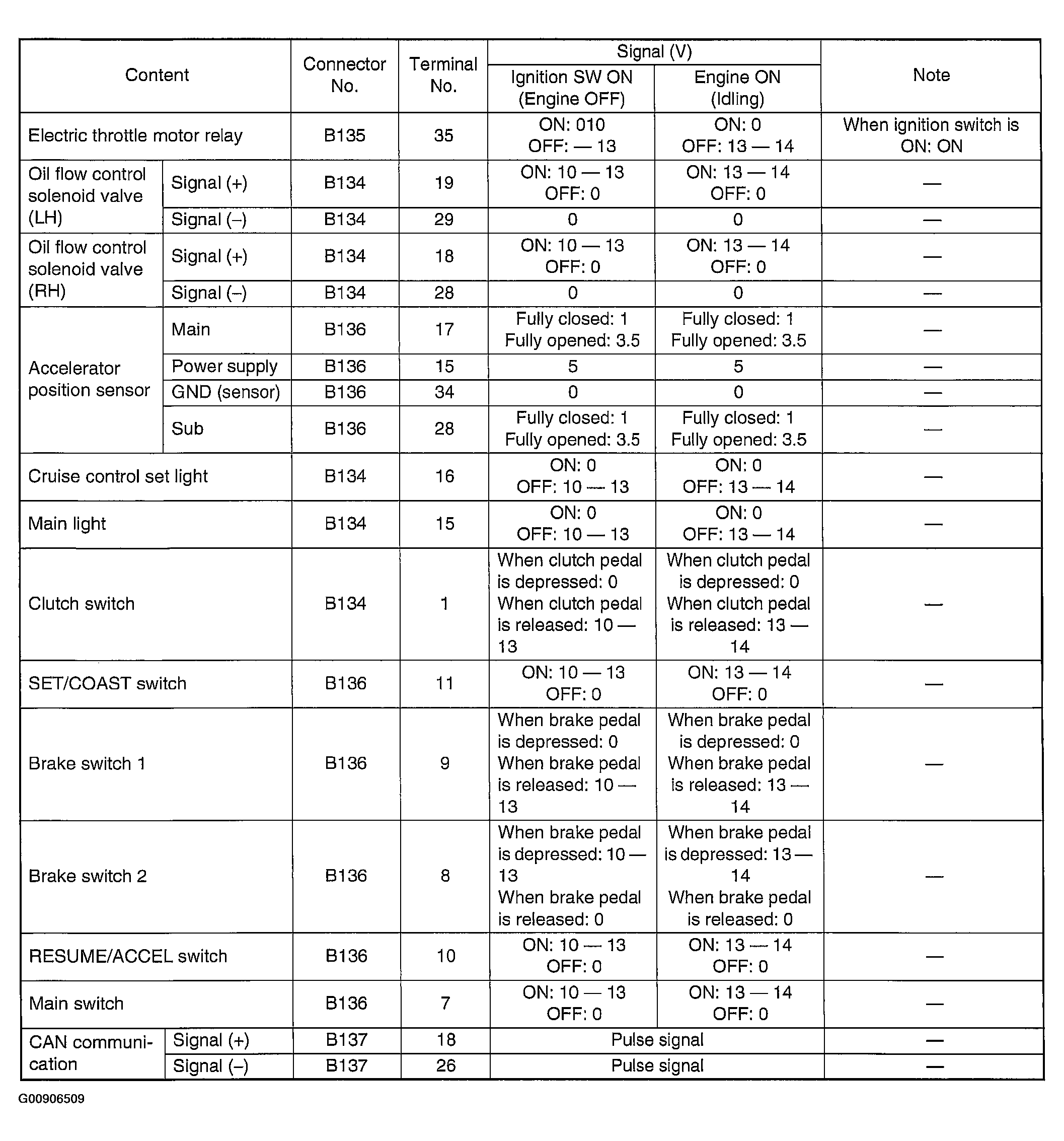

Fig 4: Terminal Chart (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

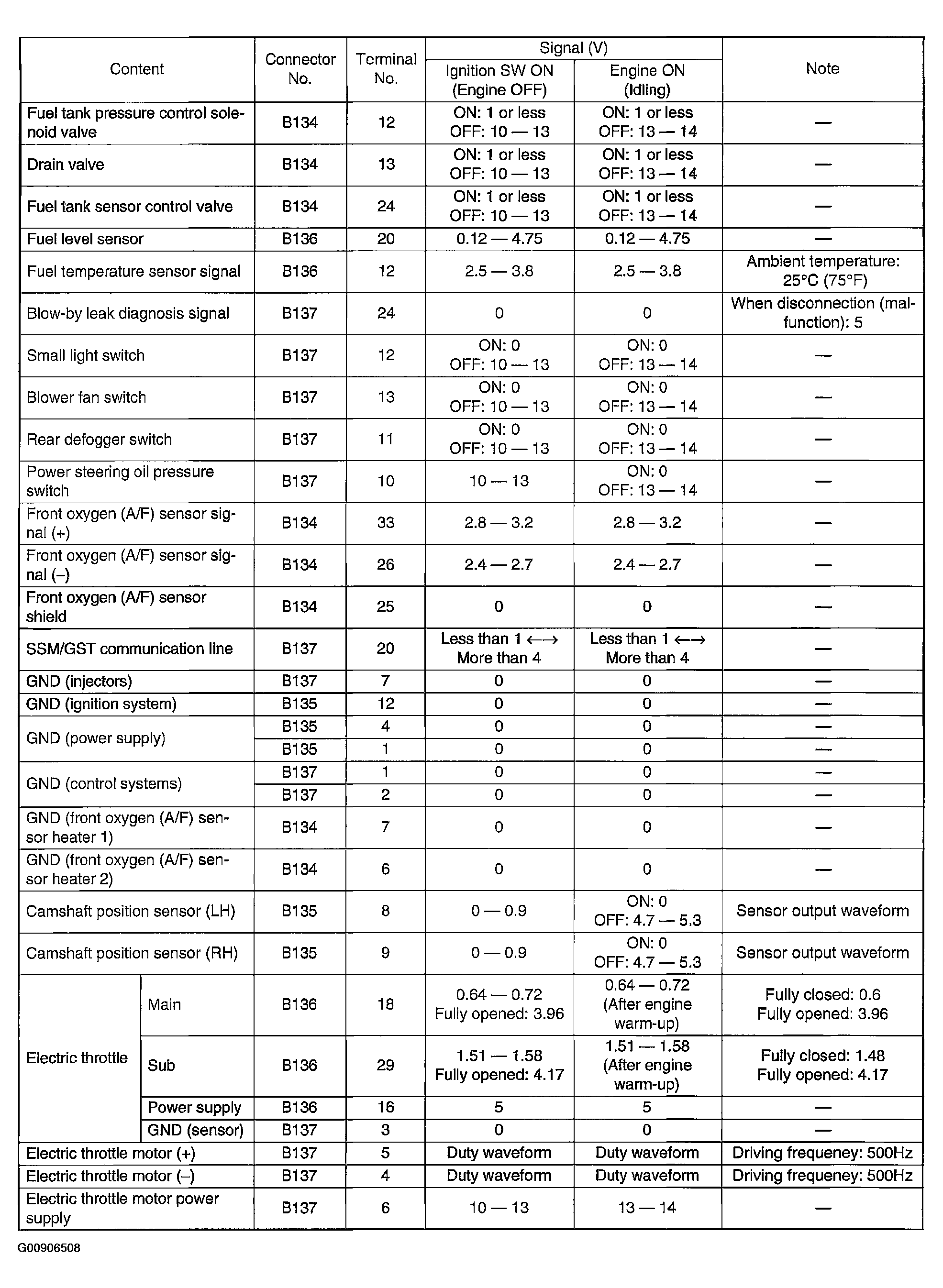

Fig 5: Terminal Chart (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
