Inspection Mode: Operation: Notes

Carry out trouble diagnosis shown in the following DTC table.

When performing trouble diagnosis which is not shown in the DTC table, refer to DRIVE CYCLE .

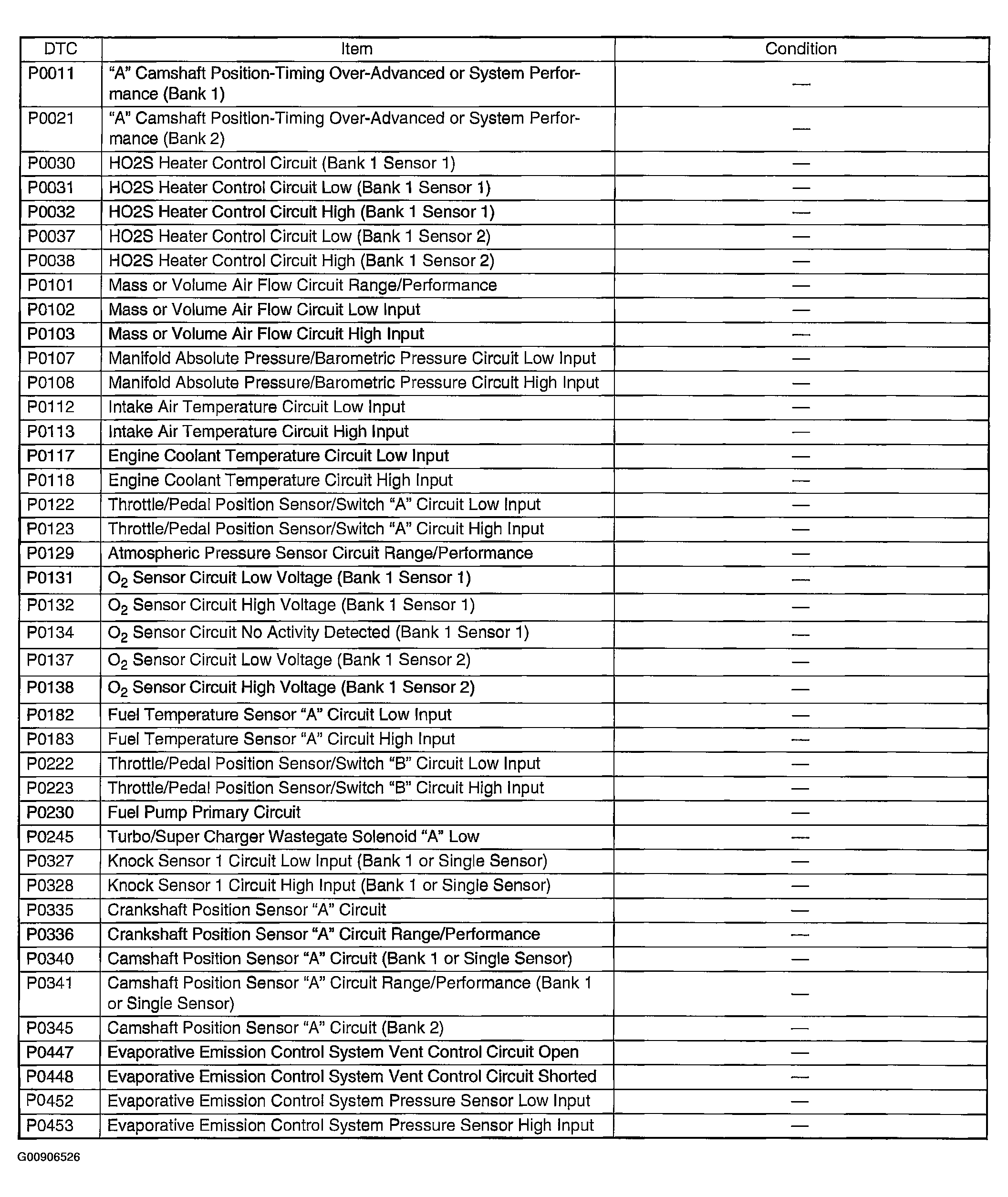

Fig 1: DTC Condition Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

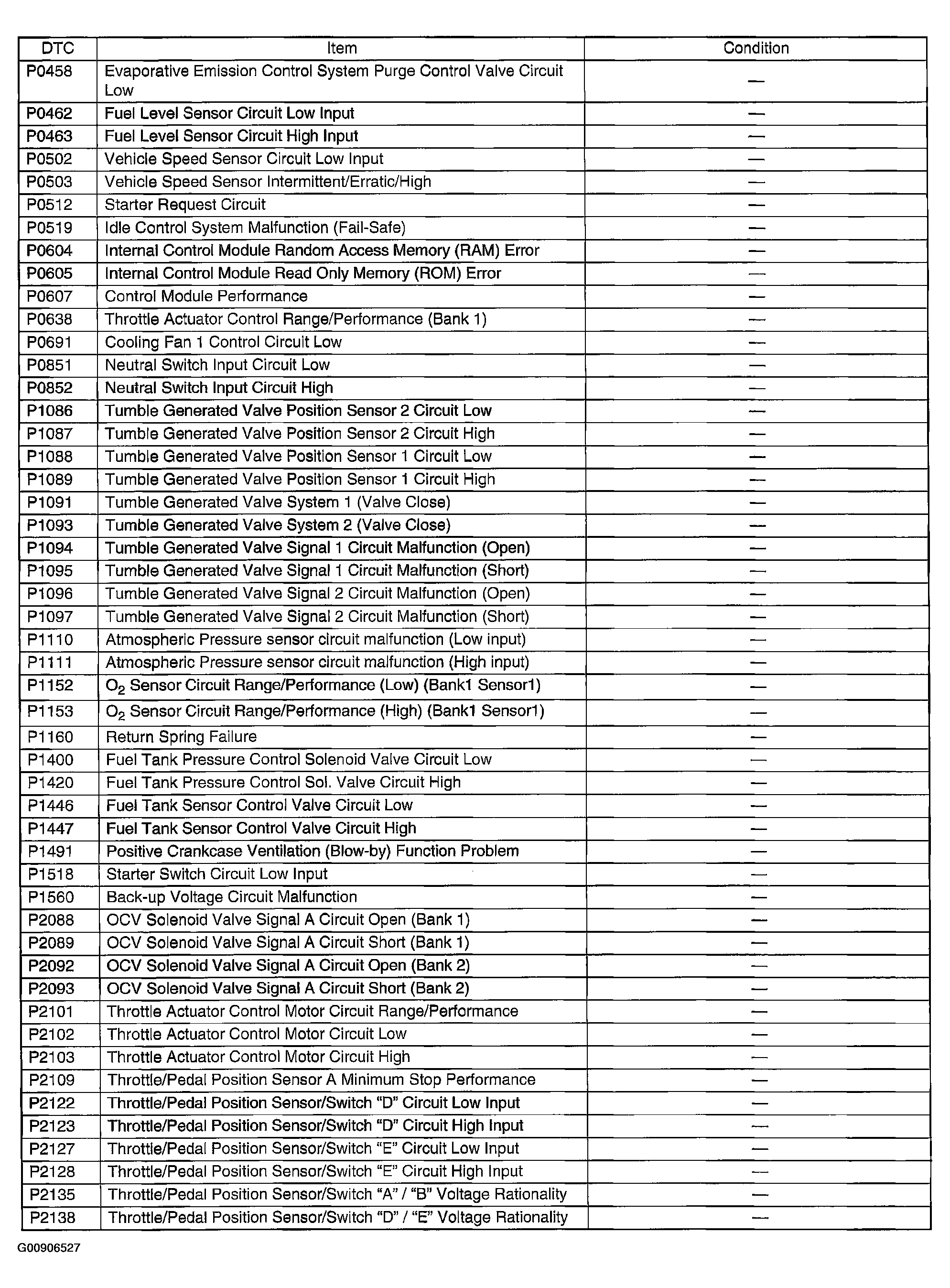

Fig 2: DTC Condition Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
