Steering Angle Sensor: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove airbag module. Refer to REMOVAL & INSTALLATION , Driver's Airbag Module.
Remove steering wheel nut, then draw out steering wheel from shaft using steering puller.
NOTE: Steering wheel must be removed at the straight ahead position.

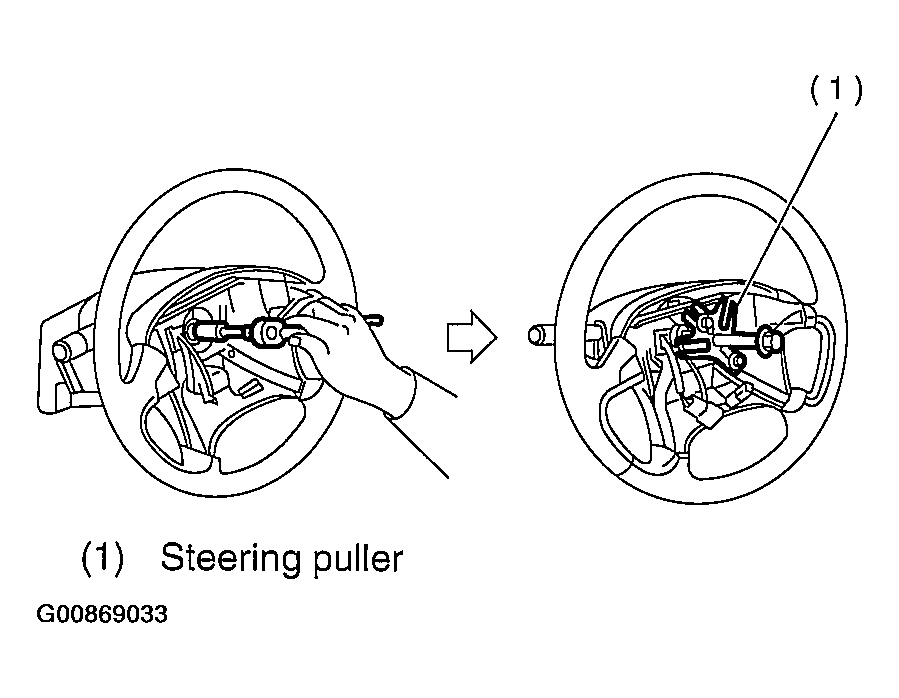

Fig 2: Identifying Steering Puller
Courtesy of SUBARU OF AMERICA, INC.
Remove the screw securing lower steering column cover.

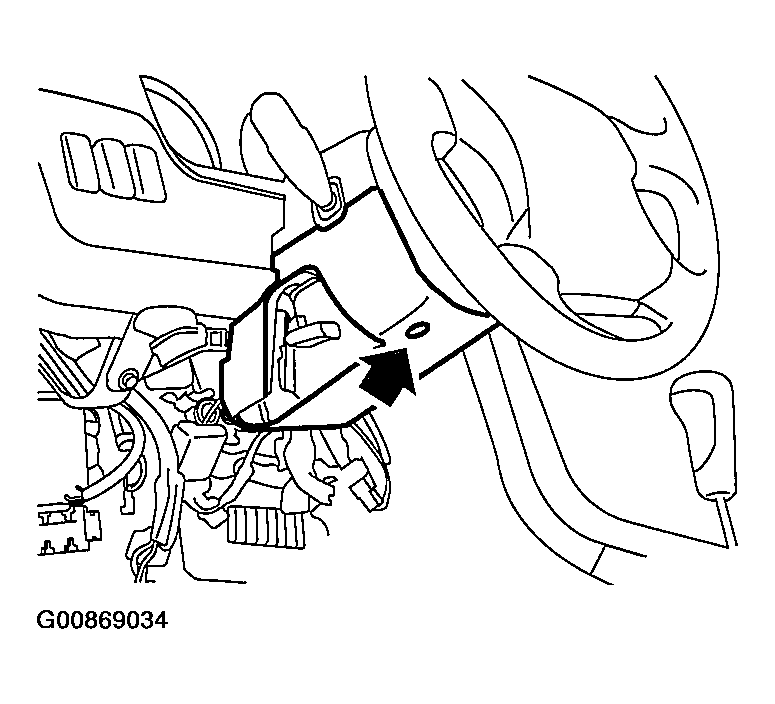

Fig 3: Removing Screw Securing Lower Steering Column Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove two screws securing upper steering column cover.
Release the lock of harness band and disconnect connector of steering angle sensor.

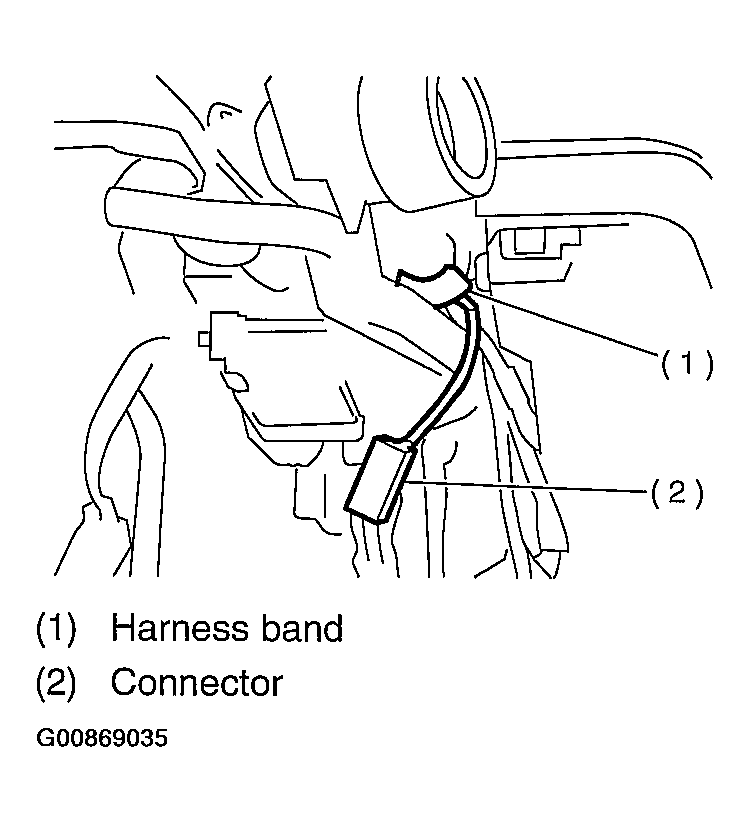

Fig 4: Identifying Lock Of Harness Band & Connector Of Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold roll connector and steering angle sensor onto steering column.

Fig 5: Removing Bolts Which Hold Roll Connector & Steering Angle
Courtesy of SUBARU OF AMERICA, INC.
Remove roll connector and steering angle sensor.

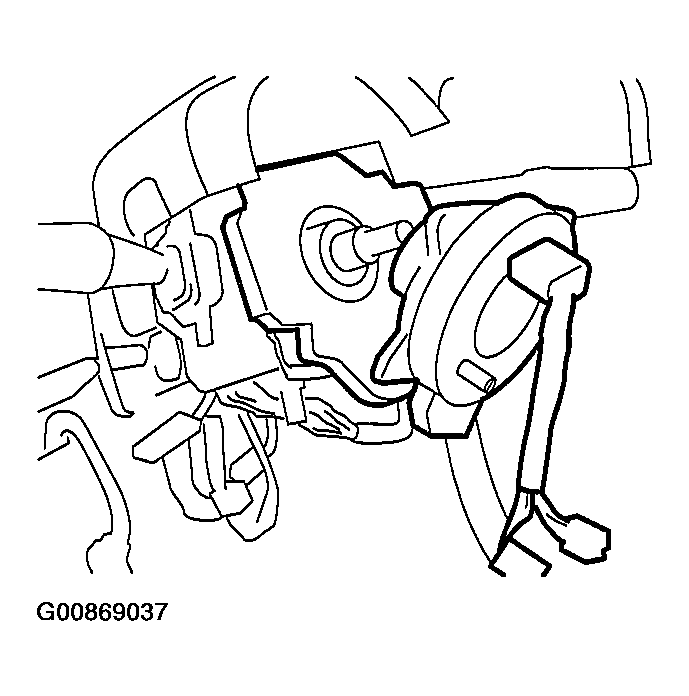

Fig 6: Removing Roll Connector & Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Do not turn steering angle sensor as it's center position has been recognized by VDCCM.
