Diagnostic Procedure For Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

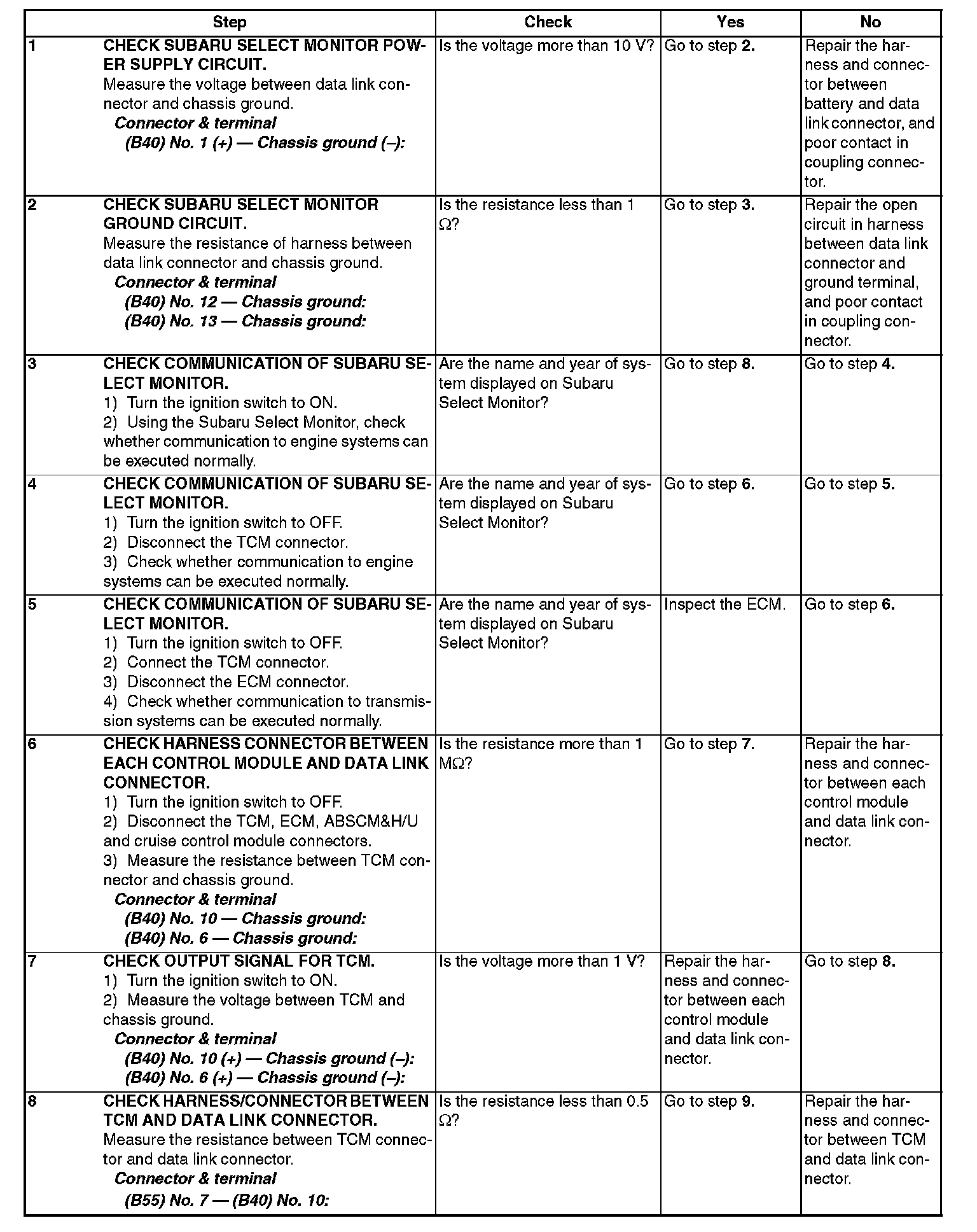

Steps 1-8:

Steps 9-11:

DIAGNOSIS:
Faulty harness connector

TROUBLE SYMPTOM:
Select Monitor communication failure

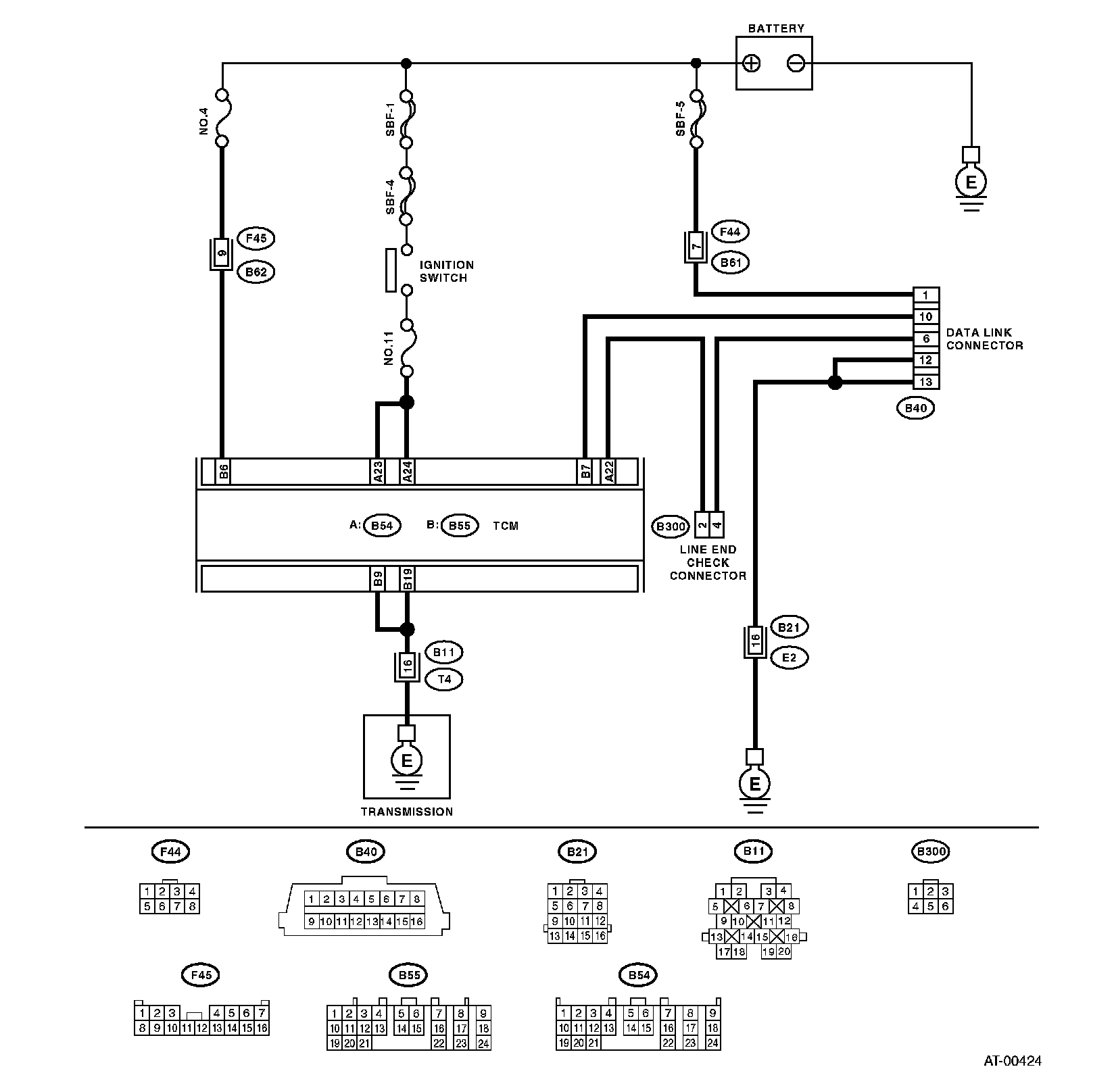

WIRING DIAGRAM
