LH Side

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery (LH Side)
    G00994970Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the two bolts which hold washer tank, and then disconnect the washer motor connector.

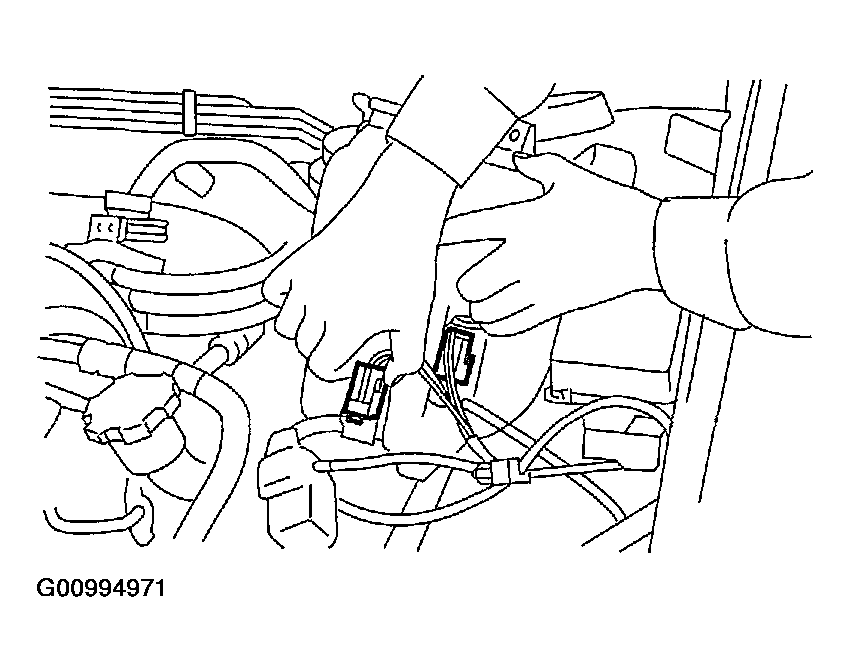

    Fig 2: Disconnecting Washer Motor Connector
    G00994971Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  4. Hang the washer tank away from working area.

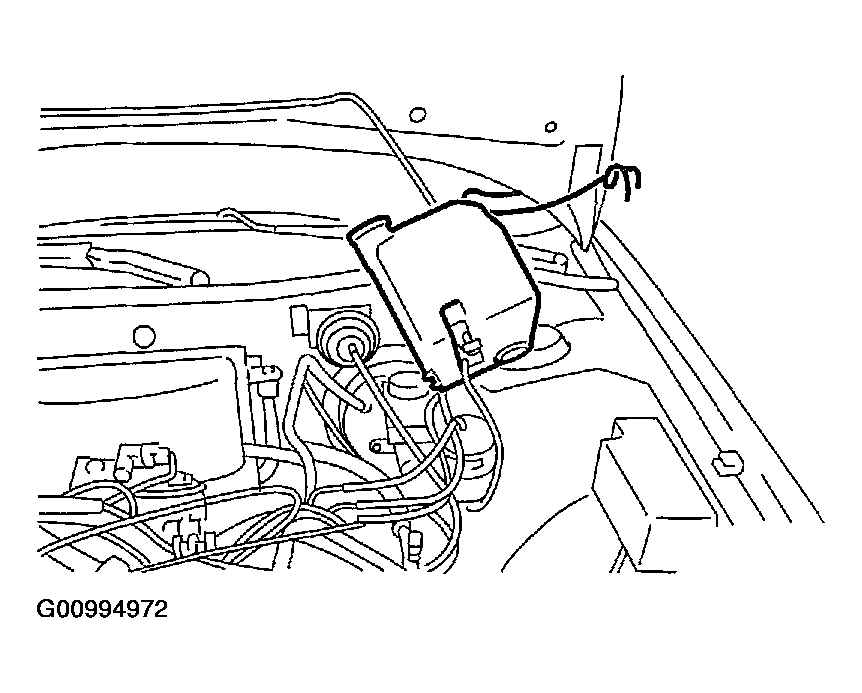

    Fig 3: Hanging Washer Tank Away From Working Area
    G00994972Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plugs cord by pulling boot, not the cord itself.

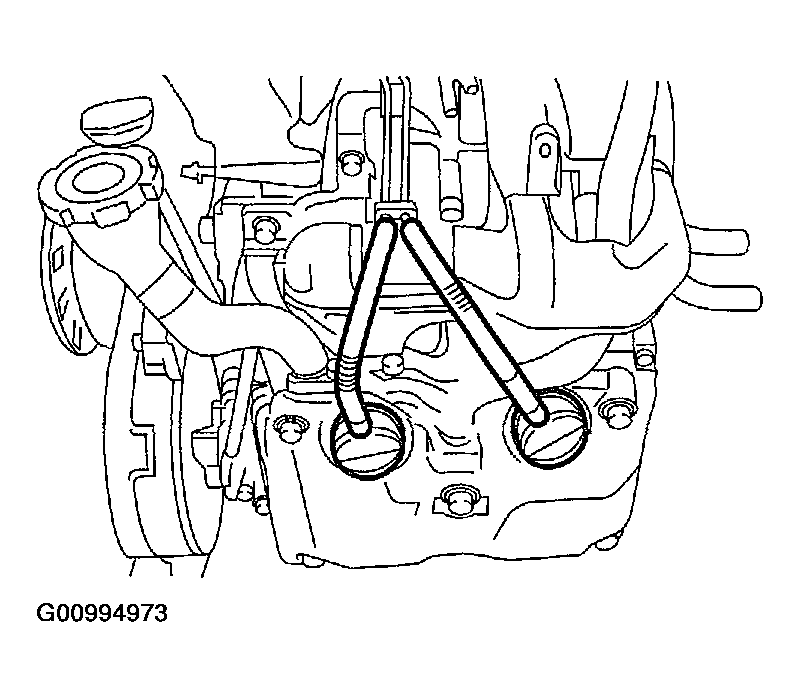

    Fig 4: Removing Spark Plugs Cord By Pulling Boot
    G00994973Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spark plugs with spark plug sockets.

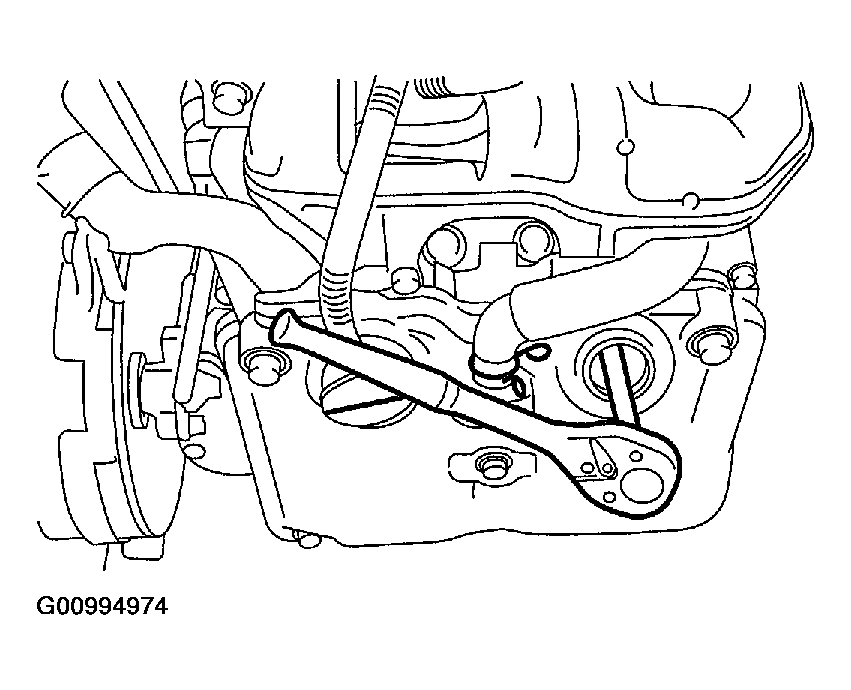

    Fig 5: Removing Spark Plugs With Spark Plug Sockets
    G00994974Courtesy of SUBARU OF AMERICA, INC.
