Operating Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Apply grease (SUNLIGHT 2: Part No. 003602010) to the contact point of the release lever and operating cylinder.
Install in the reverse order of removal.
Before Identifying the operating cylinder, apply grease (SUNLIGHT 2: Part No. 003602010) to contact point of the release lever and operating cylinder.

Tightening torque:
1. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
2. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
- NON-TURBO MODEL

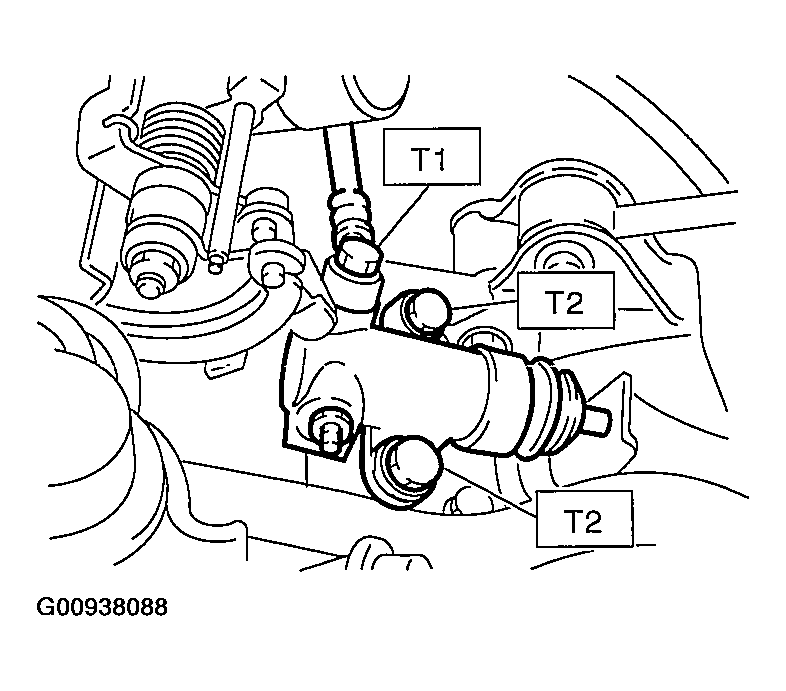

  Fig 1: Identifying Cylinder Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL

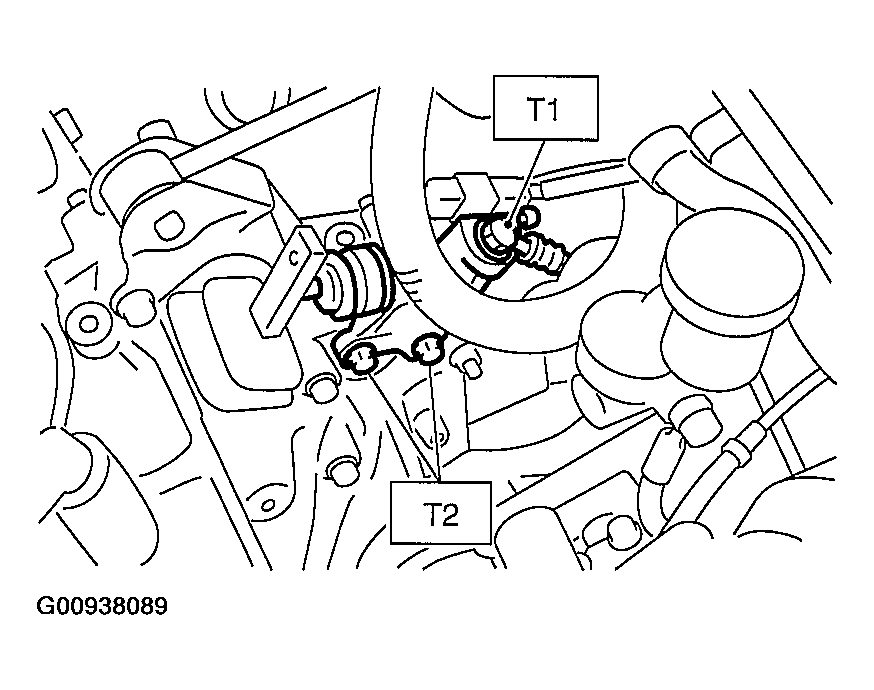

  Fig 2: Identifying Cylinder Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
Fig 3: Identifying Clutch Hose With Mark Side Facing Upward
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING .>
