Control Valve And Harness Routing

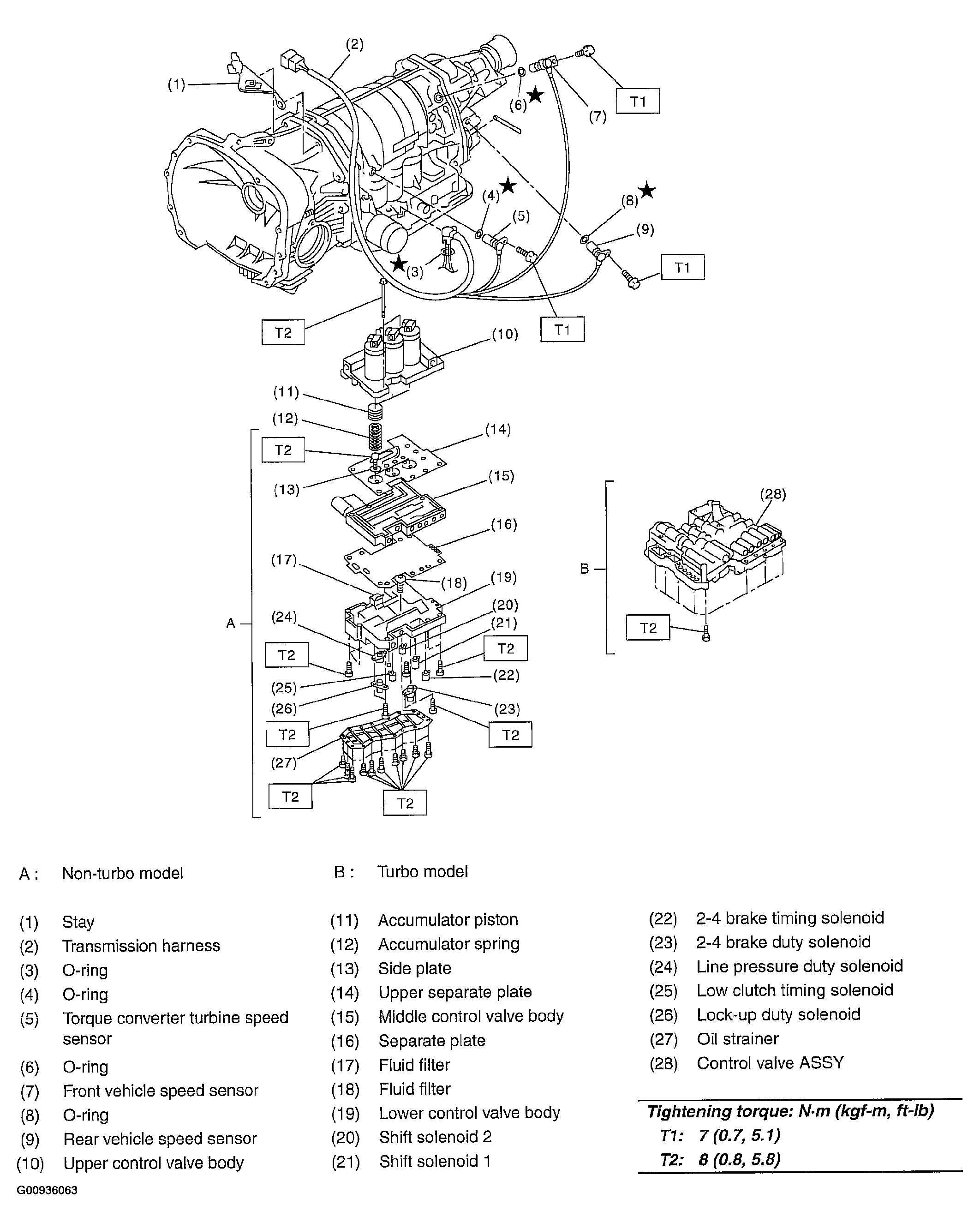

Fig 1: Control Valve And Harness Routing Components With Torque Specifications
G00936063Courtesy of SUBARU OF AMERICA, INC.
