Transfer And Extension Case

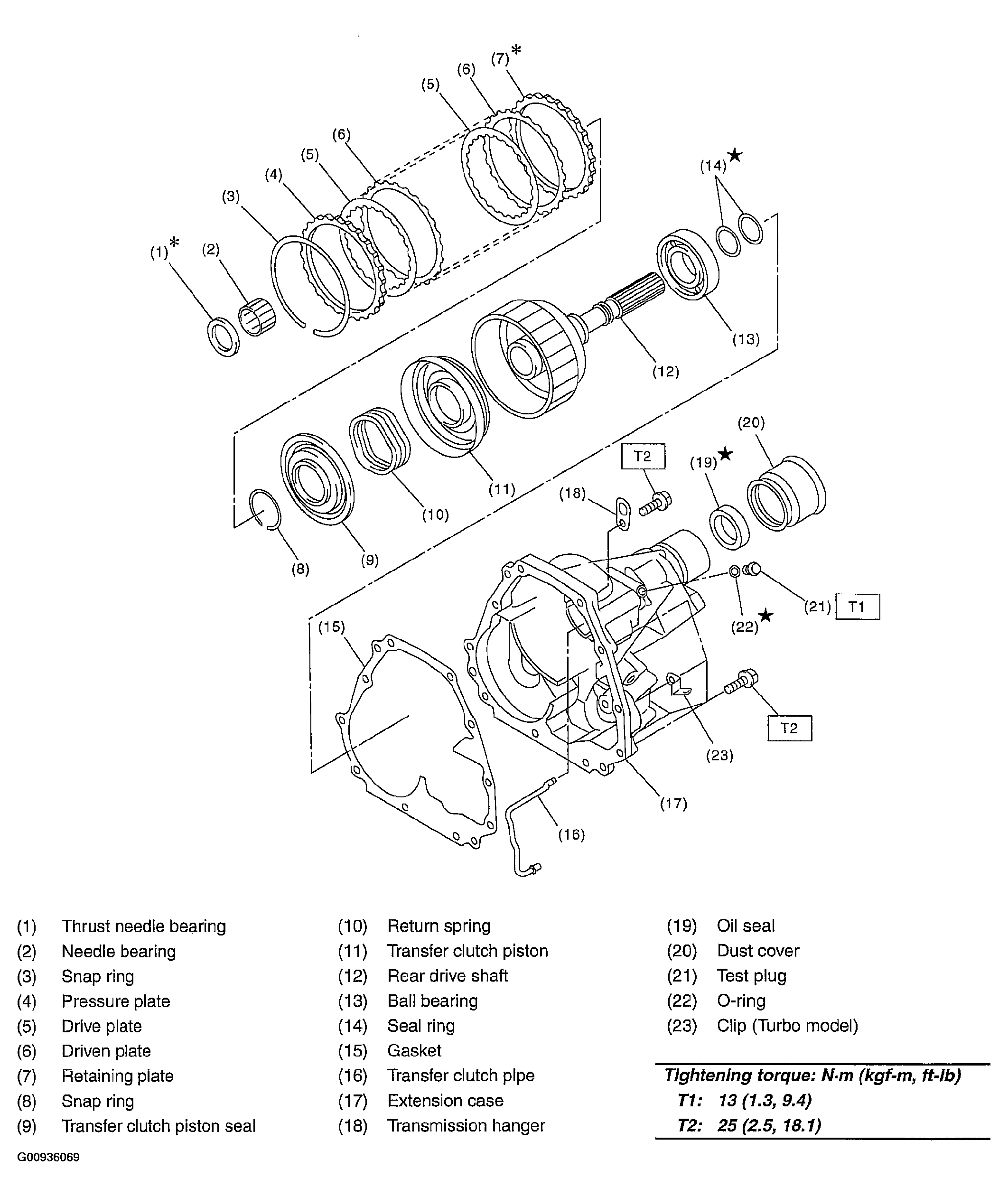

Fig 1: Transfer And Extension Case Components With Torque Specifications
G00936069Courtesy of SUBARU OF AMERICA, INC.
